4.12.2 Cascade with Multiple Devices

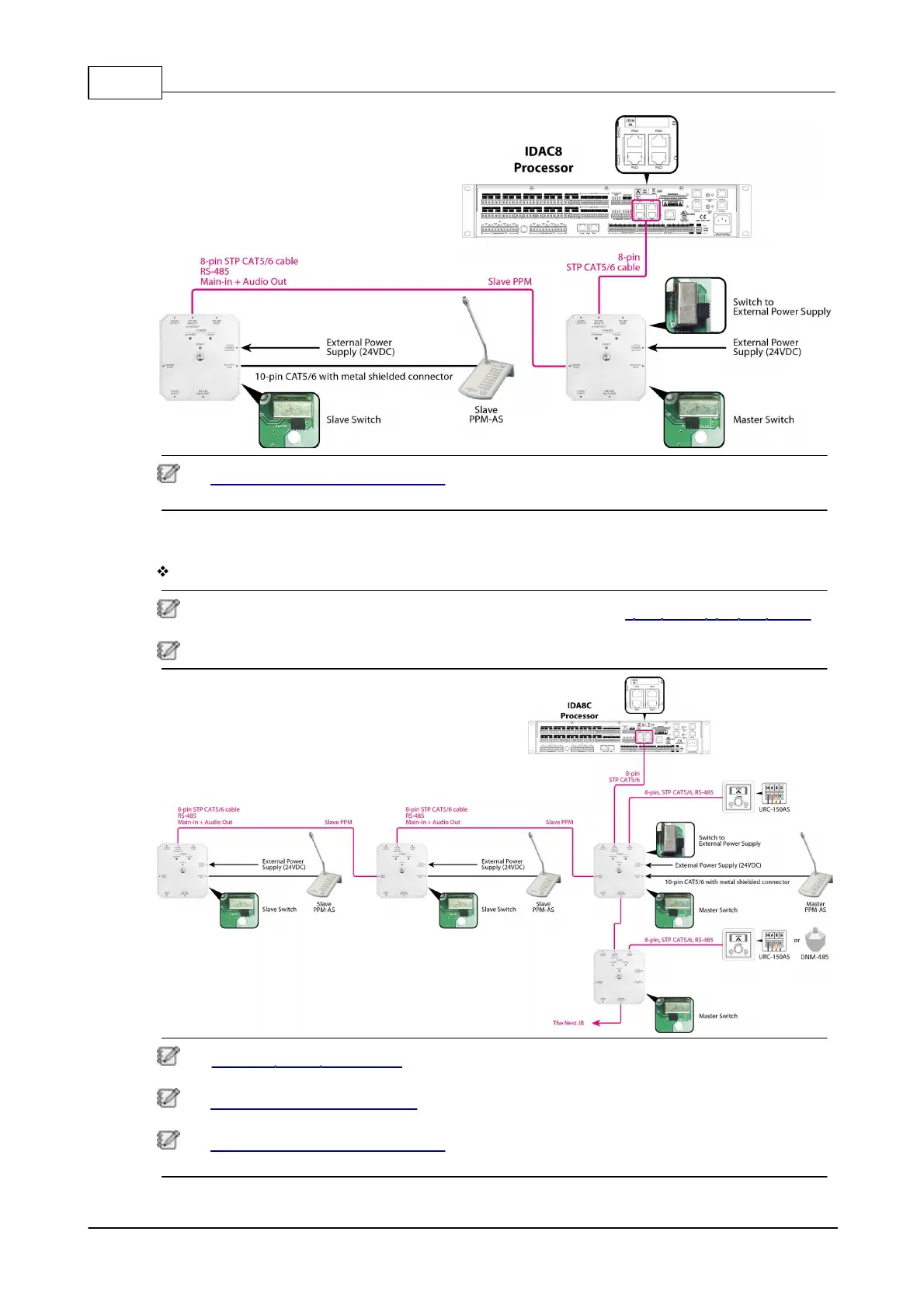

Cascade with multiple PPM-AS/CD-8AS/CD-16AS/URC-150AS/DNM-485 devices:
To know the 8-pin STP CAT5/6 pinout using on URC-150AS, see 8 Pin RJ-48 / 10 Pin JR-45 for
details.
Up to ten PPM-AS units can be connected via PPM JB junction boxes on one IDA8.
See DNM-485 Wring Connection to know the wiring details by using the 8-pin CAT5/6 cable to
the corresponds 4-pin connection on DNM-485.
See URC-150AS Wring Connection to know the wiring details by using the 8-pin CAT5/6 cable to
the corresponds 4-pin connection on URC-150AS.
See Topology of Master & Slave Switch to know the topology of Master & Slave Switch on PPM
JB.
