IDA8 Global-Net User Manual58
© 2020, ATEÏS. All rights reserved.

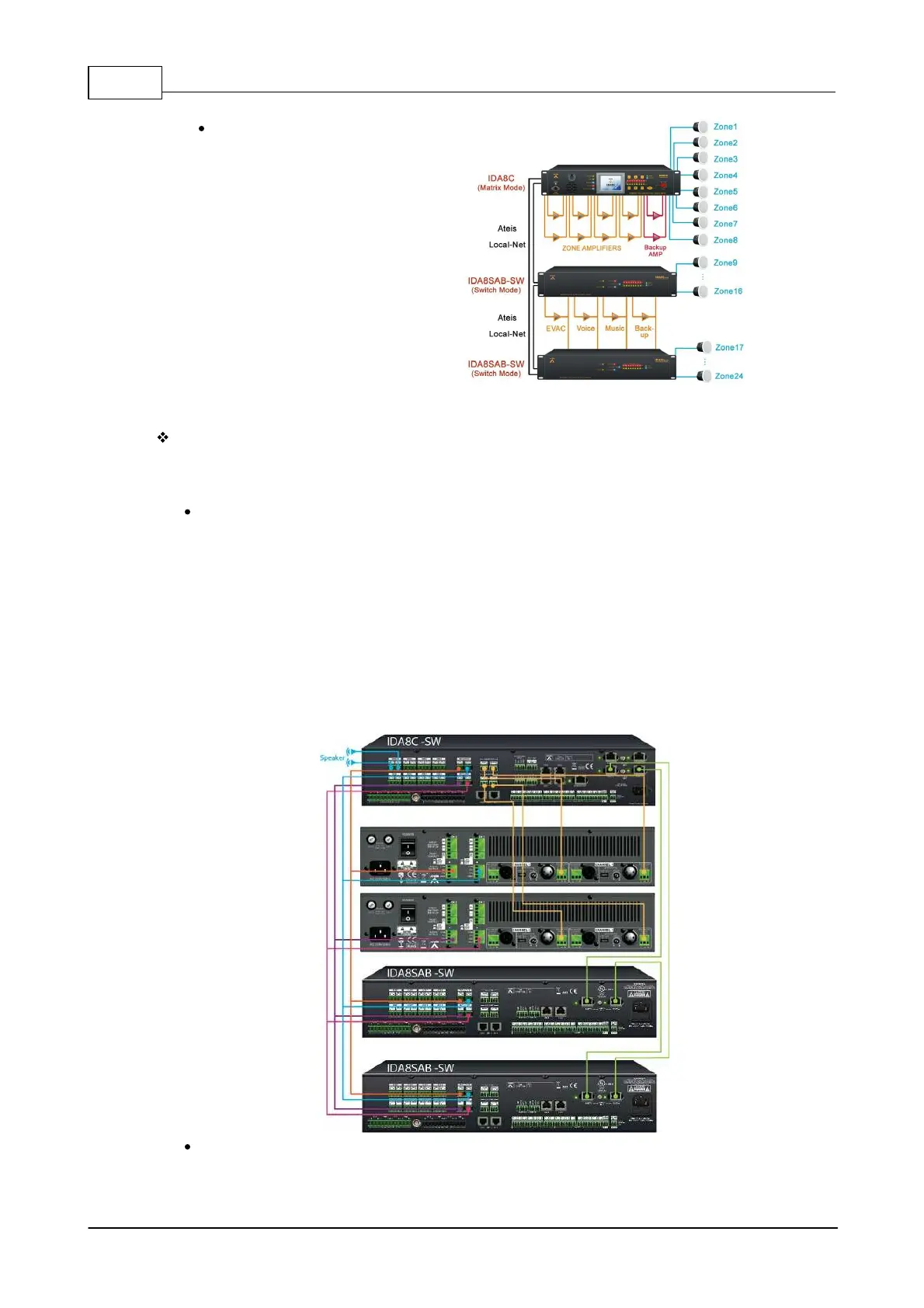

Scenario 5:
IDA8C (Matrix Mode) +
IDA8C/IDA8SAB (Switch
Mode)
3.1.5.3.5 Amplifier Wiring
Amplifier Configuration [IDA8C/IDA8SAB-SW]
The figures below show the basic amplifier wiring of each mode (Equal, Unequal, Backup
Sharing) with IDA8C/IDA8SAB-SW.
Equal Mode/Unequal Mode
In this figure of wiring, the four channels (Evacuation, Voice, Music or Backup) supply in
each zone of IDA8C/IDA8SAB-SW simultaneously.
The color of lines indicate the different channel referred to the amplifiers.
1. Deep yellow: Indicate the signal output of the four channels from the master unit connect
to the referred amplifier inputs.
2. Orange/Blue/Purple/Pink: Indicate the signal input from the amplifiers inputs connect to
the Amp Inputs of each master and slave units.
3. Green: Indicate the link of the master unit and slave unit by using Ateis Local-Net.
Backup Sharing Mode:
In this figure of wiring, the EVAC channel of IDA8C-SW (master unit) and IDA8SAB-SW
