Routing: Turns on/off the input on the particular output channel.
6.17 Net Input
6.17.1 Global Net Input
This component transfers the audio signals over Ateis Net. The signal goes into a channel of Net
Output component and retrieves from the output with the same channel or any other Net Input
component (the signal path is one to many relationship). There are up to 48 channels available to
carry signals, and the number of channels will be distributed based on the number of channels you
set on Audio Channel Setting option.

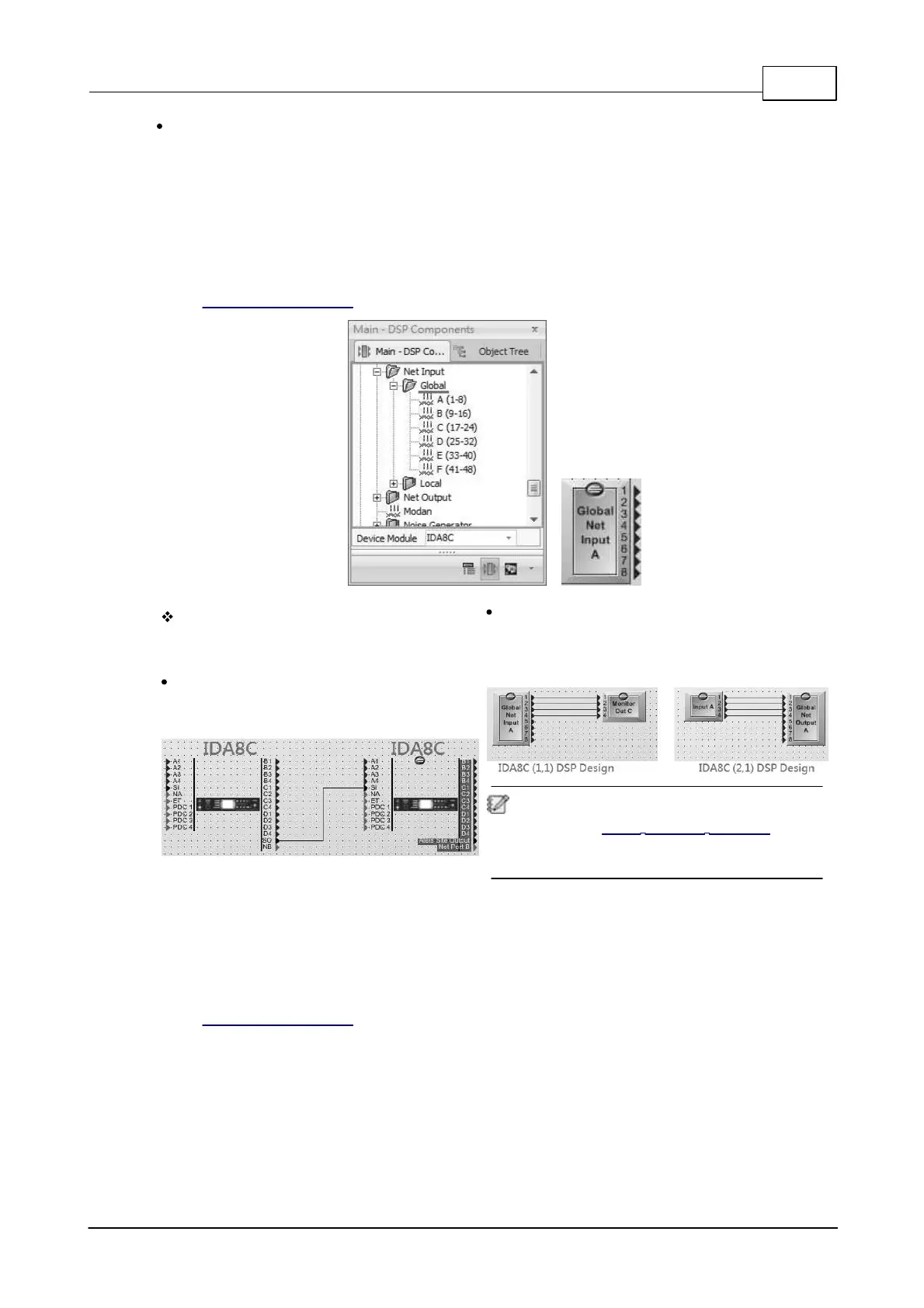

The diagram below shows a example using
IDA8 devices to show the configuration of the
Net Input and Net Output components.
In Device editing window, create an IDA8C
and an IDA8SAB. Connect the SO to SI pin
to create a Ateis Net system.
In the DSP design window of IDA8C, it utilizes
the Net Input/Output channel 1 to transport
audio signal from Input A channel in IDA8C(1,1)
to Output C channel in IDA8C(2,1).
Please check and set the number of paging
source from Audio Channel Settings window
chapter and make sure the number you set is
correctly distributed.
6.17.2 Local Net Input
This component transfers the audio signals over Ateis Net. The signal goes into a channel of a Net
Output component and retrieves from the output with the same channel or any other Net Input
component (the signal path is one to many relationship). There are up to 48 channels available to
carry signals, and the number of channels will be distributed based on the number of channels you
set on Audio Channel Setting option.
