Talk Mode: Specify the behavior of key pressing when paging. See prior section for details.
Key Count: Specify how many keys in PCP.
Key Event: Bind a paging event with PCP for zone selection. See Network Paging component
for details.
Remote Plug-in
It needs to do a "Remote Plug-in" to make audio processor recognize this remote devices. See
Remote Plug-in for details.
Assign to Design Objects
The device object in design window needs map to physical device, then the configuration of the
device can be set to the physical one. Click "Name " field of device list to select correspond
device object.

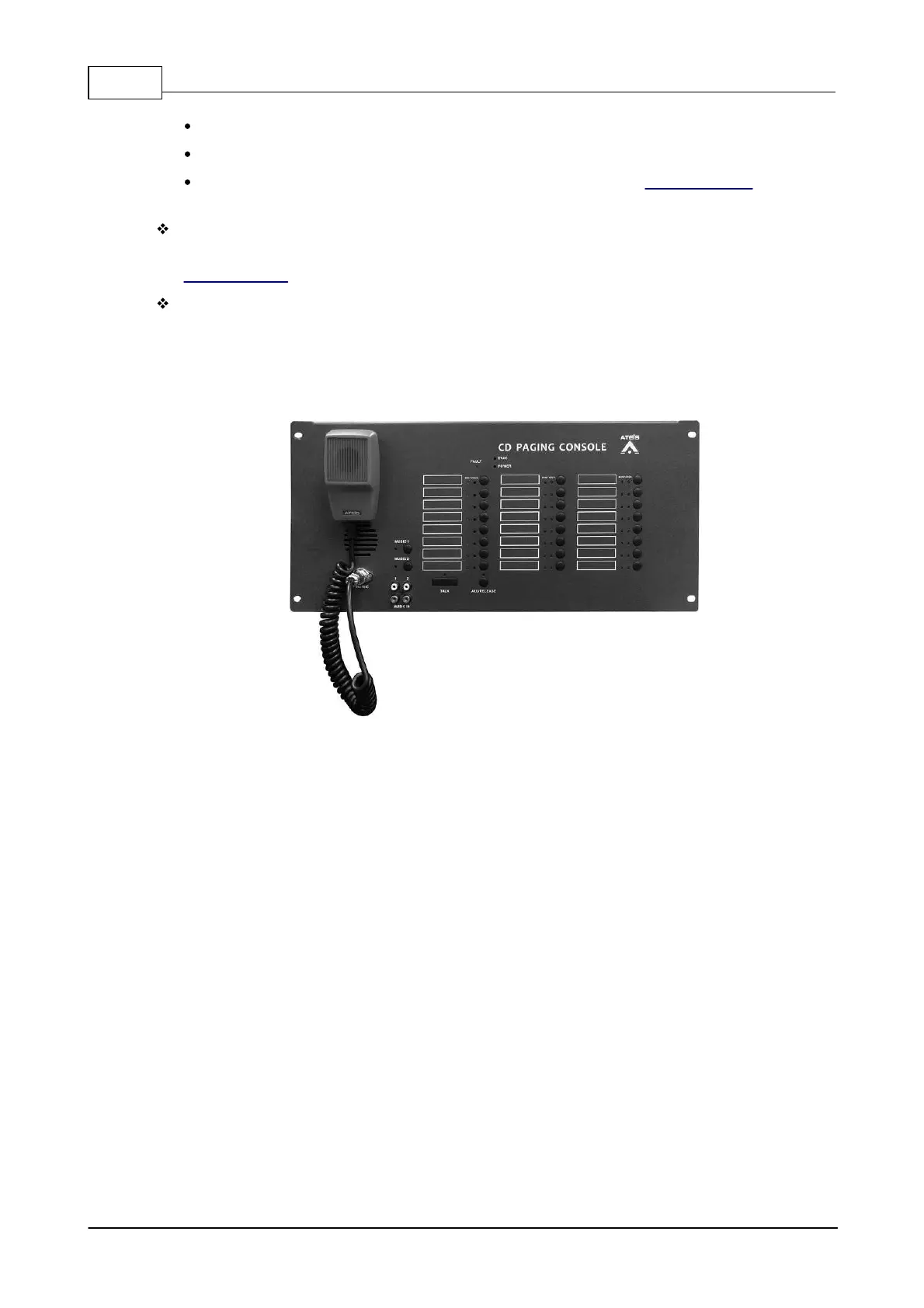

3.2.1.9 CDPM Wallmount Paging Console
The CDPM paging console is a wall-mounted cabinet remote which is compatible with Ateis audio
processor. The CDPM comprises of 24 zones/24 buttons with Fireman microphone in a metal
surface mount wall-box. It provides robust IP-30 protection. Each CDPM contains a PMM PS Master
PCB with extension keypad and uses the same architecture as for the PPM-AS series of
microphone consoles. Each Ateis audio processor is capable to support up to 31 CDPM units per
RS485 port in Master/Slave configuration. The control buttons represent a single zone or a group of
zones. All buttons can be pre-programmed from ATEÏS Studio. The PTT button can be programmed
for Push To Talk function or for latching functionality.
The CDPM supports 2 channels of music input. By pressing the button for selection, the two LED
indicators shall light up and activate the music channel. The CDPM offers “Hold” and “Busy” LED
signals in addition to the zone LED’s, and these features allow an easy identification of Selection/
Busy signals for users. In addition, to meet the com-pliance with EN 54-16, POWER, FAULT and
EVAC indicators are provided with. The CDPM interconnects over a dedicated RS485 for power,
audio and data transmit. The RS485 communication protocol offers daisy chaining of up to 300 m on
a simple CAT5 cable, and yet makes outlets easy to connect via a standard RJ45 connector.
