Ateis IDA8S User Manual

System Configuration 317
© 2020, ATEÏS. All rights reserved.
monitoring function.
Global Enable Leakage Open Relay:
If users want to enable the monitoring function on all the connected IDA8 processors, you
need to click the [Global Enable Leakage Open Relay] option first, and change the [Enable
Leakage Open Relay] option either by clicking to enable this function or unclick to cancel
the monitoring function.
Global Leakage Open Threshold:
If users want to enable the monitoring function on all the connected IDA8 processors, you
need to click the [Global Leakage Open Threshold] option first, and change the [Leakage
Open Threshold 1k ohm] option either by clicking to enable this function or unclick to cancel
the monitoring function.

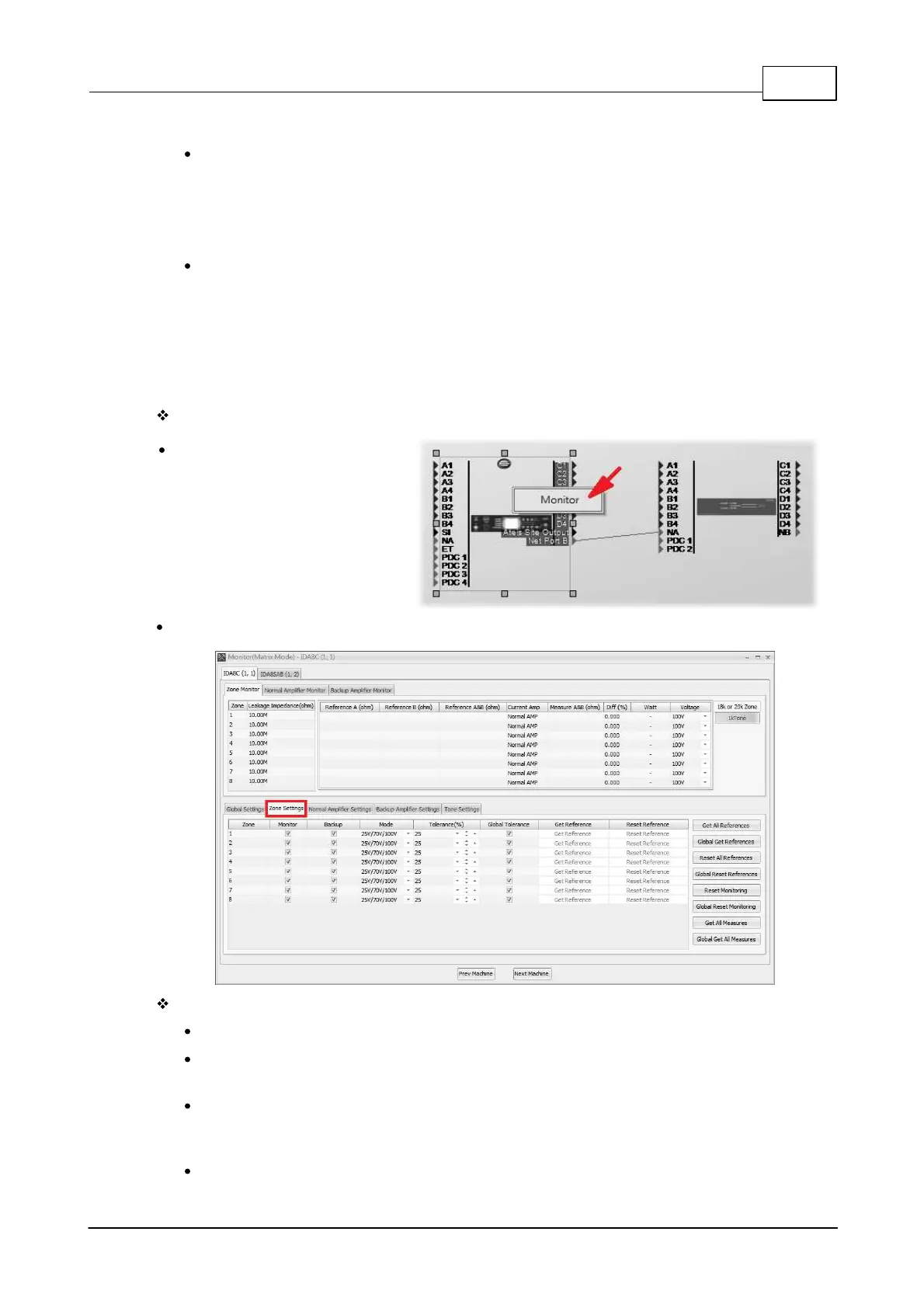

5.7.1.4 Zone Monitoring
Settings:
First, in Ateis Studio, right click
the IDA8C/S icon.
When the window [Monitoring(Matrix Mode)-IDA8C/S X ] appears, select [Zone Settings] page.
Functions on the down side of [Zone Settings] page:
Zone: Indicate a row is related to a zone.
Monitor: Enable/disable the zone monitoring, if the monitoring of a zone is disabled, the
IDA8C/S will not detect faults of that zone.
Backup: This setting will notice the IDA8 if the backup amplifier services the zone correctly.
For example, if the checkbox is not checked, the IDA8C/S will not switch to the backup
amplifier for the zone with the fault This results in the monitoring of the zone not working.
Mode: There are two types of mode:
