DSP Components 379
© 2020, ATEÏS. All rights reserved.

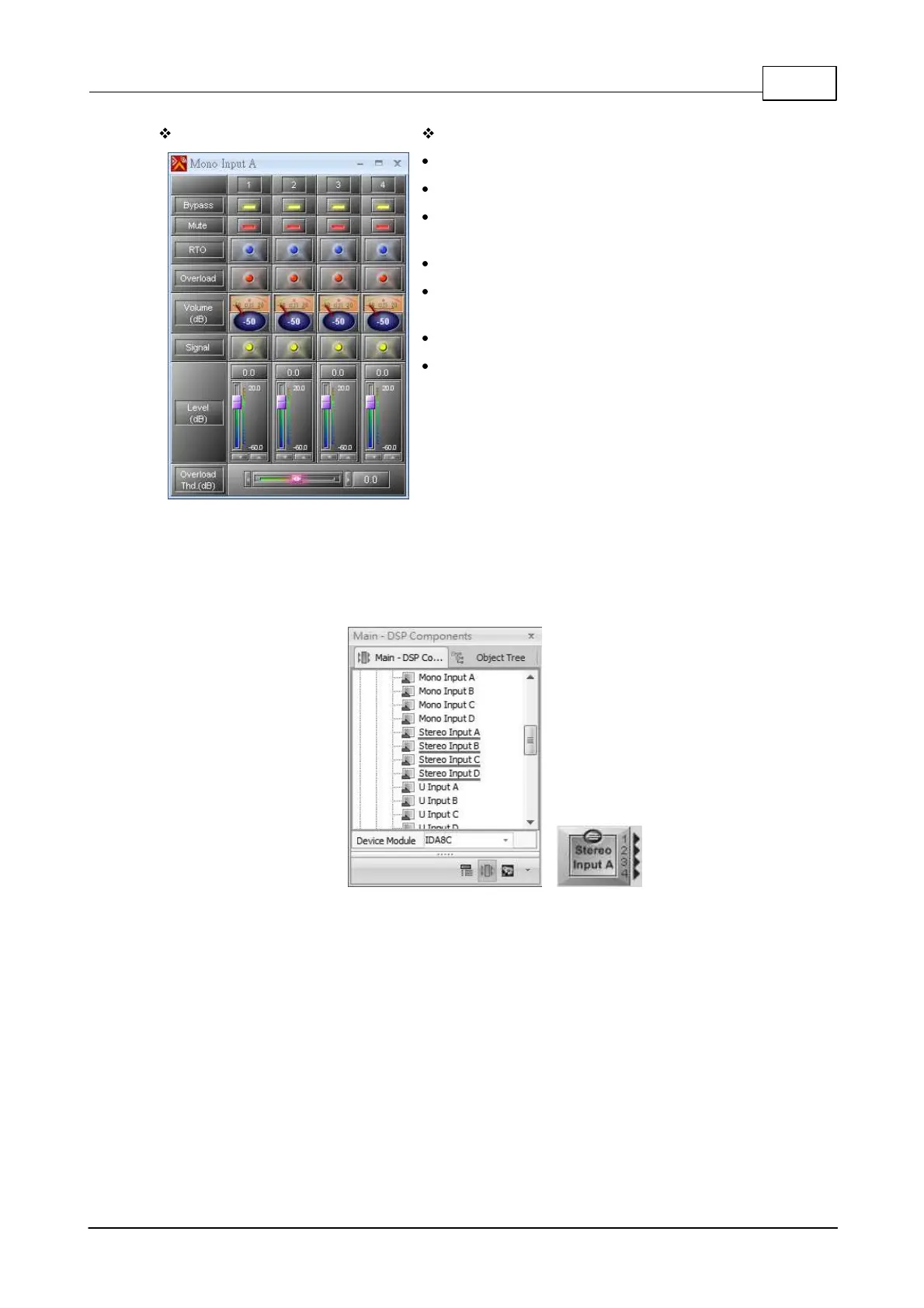

Element Description
Bypass/Mute: Disable/mute the audio channel.
RTO: An input channel 'Routed To Output(s)'.
Overload: Light up if the signal of input channel is bigger
than Overload Thd.
Volume: The VU-Meter shows the channel of RMS level.
Signal: Light up if an audio signal presents above -30 dB
from the chosen 'Sensitivity'.
Level: The signal output level of channel.
Overload Thd.: A threshold value to determine the signal of
channel is overloaded or not.
6.9.3 Stereo Input
Used for the AES/EBU input, it's very similar to the analog Input component except without
Sensitivity and Phantom Power values. The audio input to channel 1 board goes to the component
Stereo Input X channel 1 & 2 and channel 3 to Stereo Input X channel 3 & 4.
