A buzzing sound will be outputted to the monitoring speaker on the front panel of the IDA8C.
7.1.2 User Define Error
A user defined error is detected by the IDA8C/S. This kind of error can be defined by using the
"Fault Definer" DSP component.
Indication:
LED Indicator: When this error is detected, the following LEDs will light up:
o G. Fault LED on the front panel of IDA8C/S.
Log:
o "User Define Error" message will be displayed at the touch screen of IDA8C.
"XXXXX", where XXXXX is the content defined in "Fault Definer" the DSP component field
[Message].

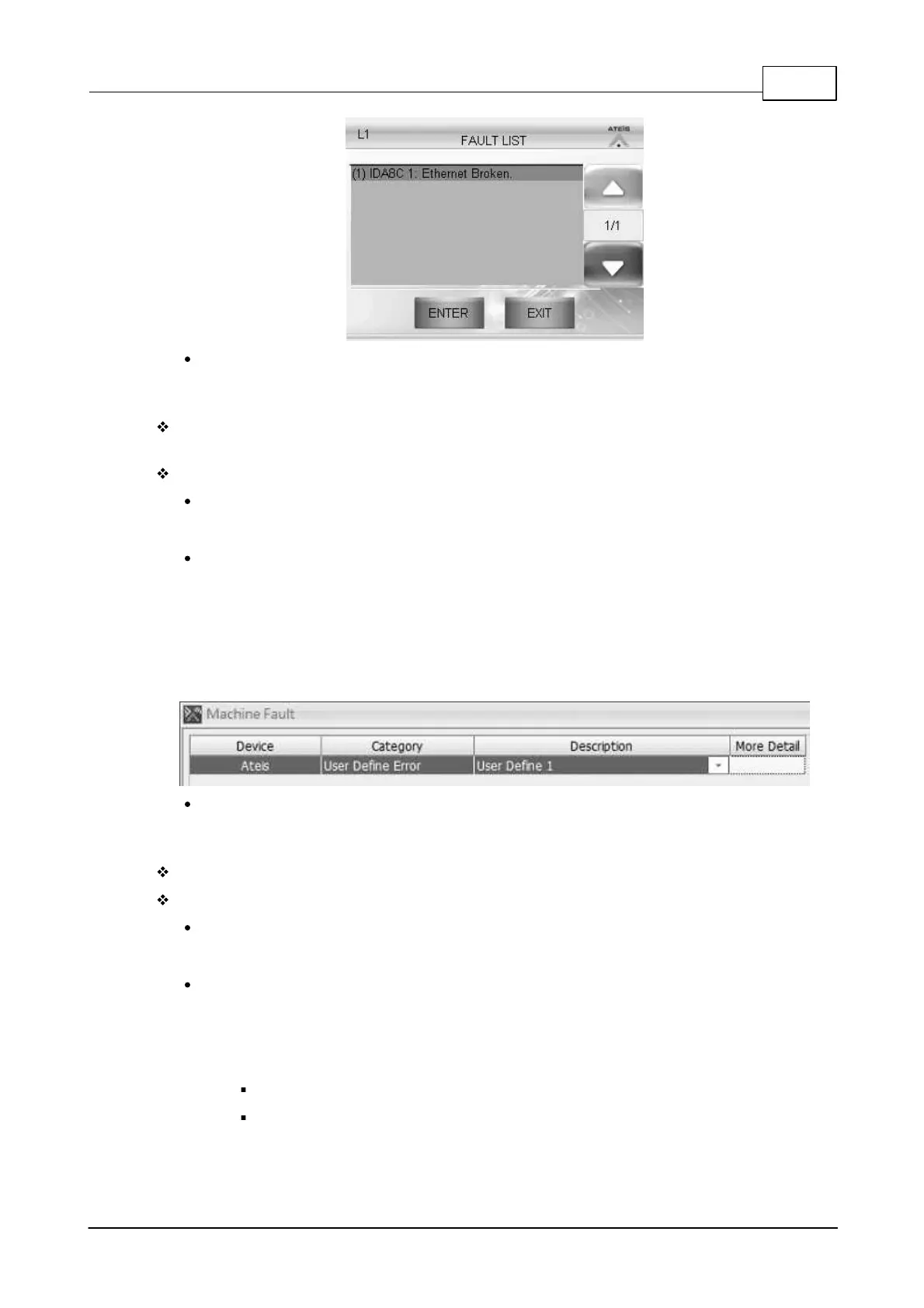

o A text message will be displayed at the window [Machine Fault Record] in Ateis Studio,
see the picture as below.
A buzzing sound will be outputted to the monitoring speaker on the front panel of the IDA8C.
7.1.3 PDC Error
The audio cable for Fireman and PDC port turns short circuit or cuts off.
Indication:
LED Indicator: When this error is detected, the following LEDs will light up:
o G. Fault LED on the front panel of the IDA8C/S.
Log:
o "PDC Error" message will be displayed on the touch screen of IDA8C.
o The text messages will be displayed at the window [Machine Fault Record] in Ateis
Studio.
PDC: Indicate errors in which PDC port.
Audio Short: Turn short circuit.
