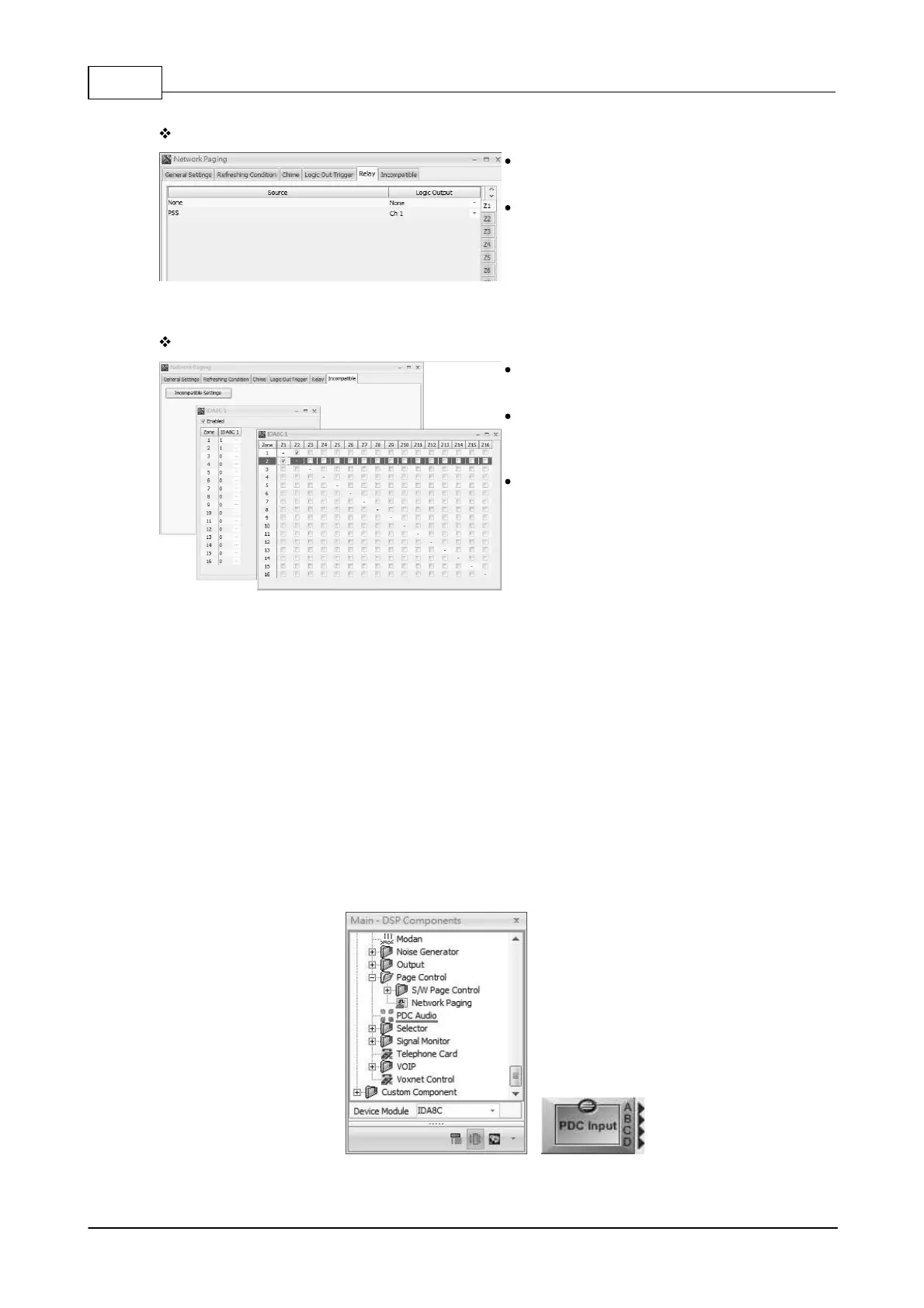

Relay
This Relay function needs to be worked by
using Paging Source function together.
It is able to output a logical High to a specific
output channel in condition of a zone is
occupied by a specific source. From the
picture on the left, the Logic Output of channel
1 will stay High if the Z1 (Zone 1) is occupied
by the paging source of PSS-AS.
Incompatible
When the zones are under paging, and do not wish
other sound from other paging zones close to the
current paging zone disturbed or covered their own
paging sound. Then users can use the
Incompatible function to avoid this kind of situation.
Enabled: Tick to enable this Incompatible
function.
Zone checkbox: Set the paging zones which
users wish not to be disturbed during the
paging status.
Please see the example picture on the left,
when the zone is paging and Zone 2 (Z2) has
been selected for not to paging, the other
paging sources cannot be paging to Zone 2
(Z2), except one condition that the paging
source is higher than the paging source of
Zone 1 (Z1). Another example, when Zone2
(Z2) is paging, other paging sources cannot
be paging to Zone1 (Z1). And in this case,
Zone (Z1) and Zone (Z2) will not be proceed
paging at the same time.
6.22 PDC Audio
6.22.1 PDC Input
This component controls and monitors the PDC input signal parameters. The input component
represents the physical analog inputs accessible on the PDC port of the Audio Processor. There are
four ports (A to D) which represent different channels of the PDC port. Some consoles like PSS-AS
which transfers audio signals via PDC port. To process an audio signal with another DSP
component, you need to create a DPC Input component in the design window.
