5.7.2.5 Switch Amplifier Group
Each IDA8C/IDA8SAB (Switch Mode) requires less number of amplifiers with only 4 audio inputs \/
outputs. This function allows users to choose up to 4 amplifiers maximum units in different modes
(Equal Mode, Unequal Mode, Backup Sharing Mode) of multi-groups.

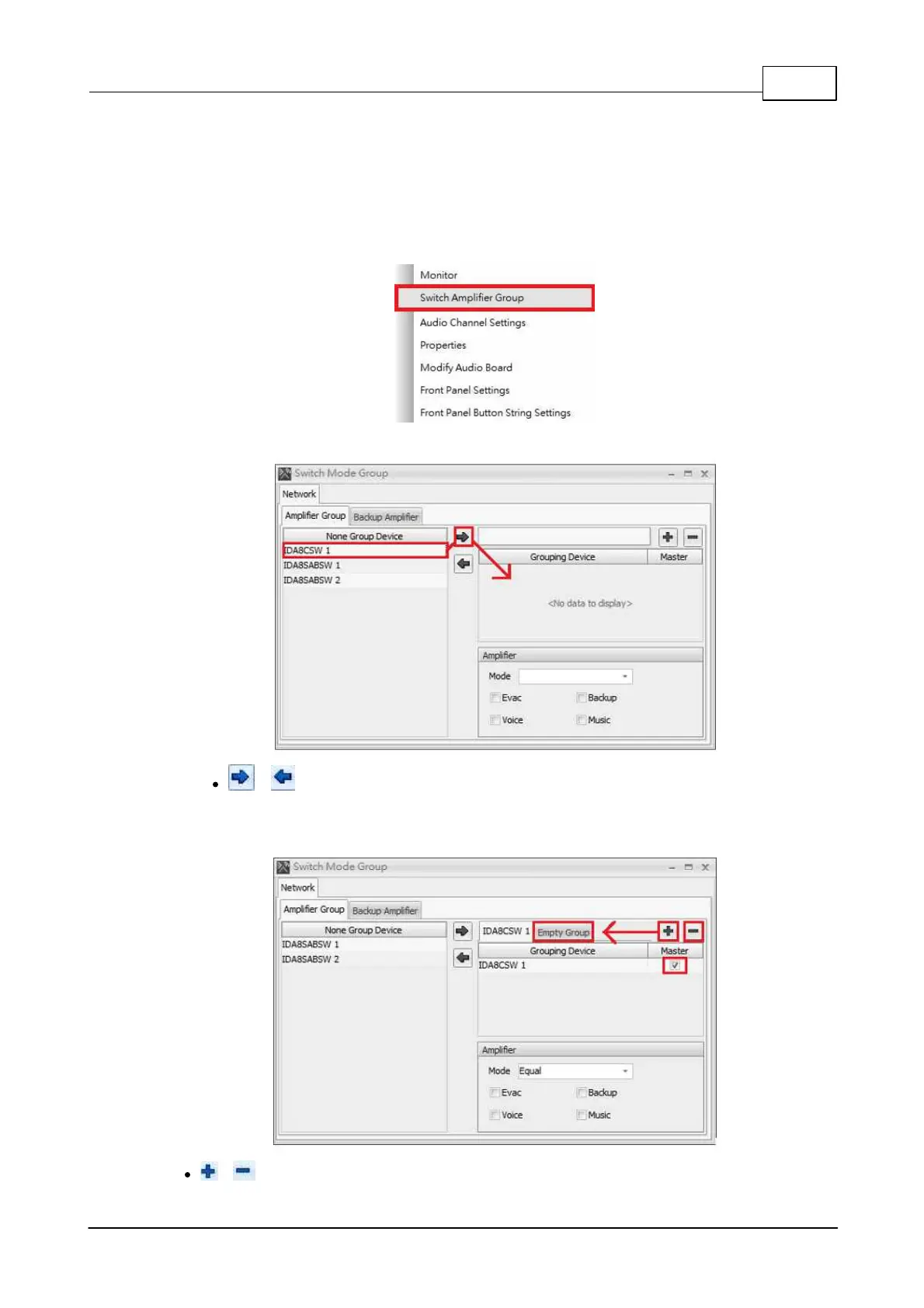

1. Right click the switch mode device to open a pop-up window.
2. Click [Switch Amplifier Group] to open the setting window. See the picture below,
3. Select the device(s) on the left grid which users intend to put in as a grouping device.
/ : Create or Delete from the selected device on the left grid into or a grouping
device on the right grid.
4. Create multi-groups.
/ : Create or Delete a new group.
