Ateis IDA8S User Manual

System Configuration 333
© 2020, ATEÏS. All rights reserved.
If this fault generated after the speaker configuration is changed, you can perform a
reference again to get new values for a reference.
Amplifier Fail:
If the measurement < (Unloaded Reference / 10), and the fault will occur, please check the
following points:
o Check if the amplifier power on.
o Check if the gain of the amplifier is too low, please increase the gain from the knob.
o Check if the wires between the amplifier and the IDA8 are connected correctly.
If all the points above have been checked completely but still the amplifier receives a fail
fault, please replace the amplifier.
Rating Fault:
If the measurement < 30 while getting the references, and the fault will occurs, please check
the following points:
o Check if the amplifier power on.
o Check if the gain of the amplifier is too low, please increase the gain from the knob.
o Check if the wires between the amplifier and the IDA8 are connected correctly.
If all the points above have been checked completely but still the amplifier receives a fail fault,
please replace the amplifier.

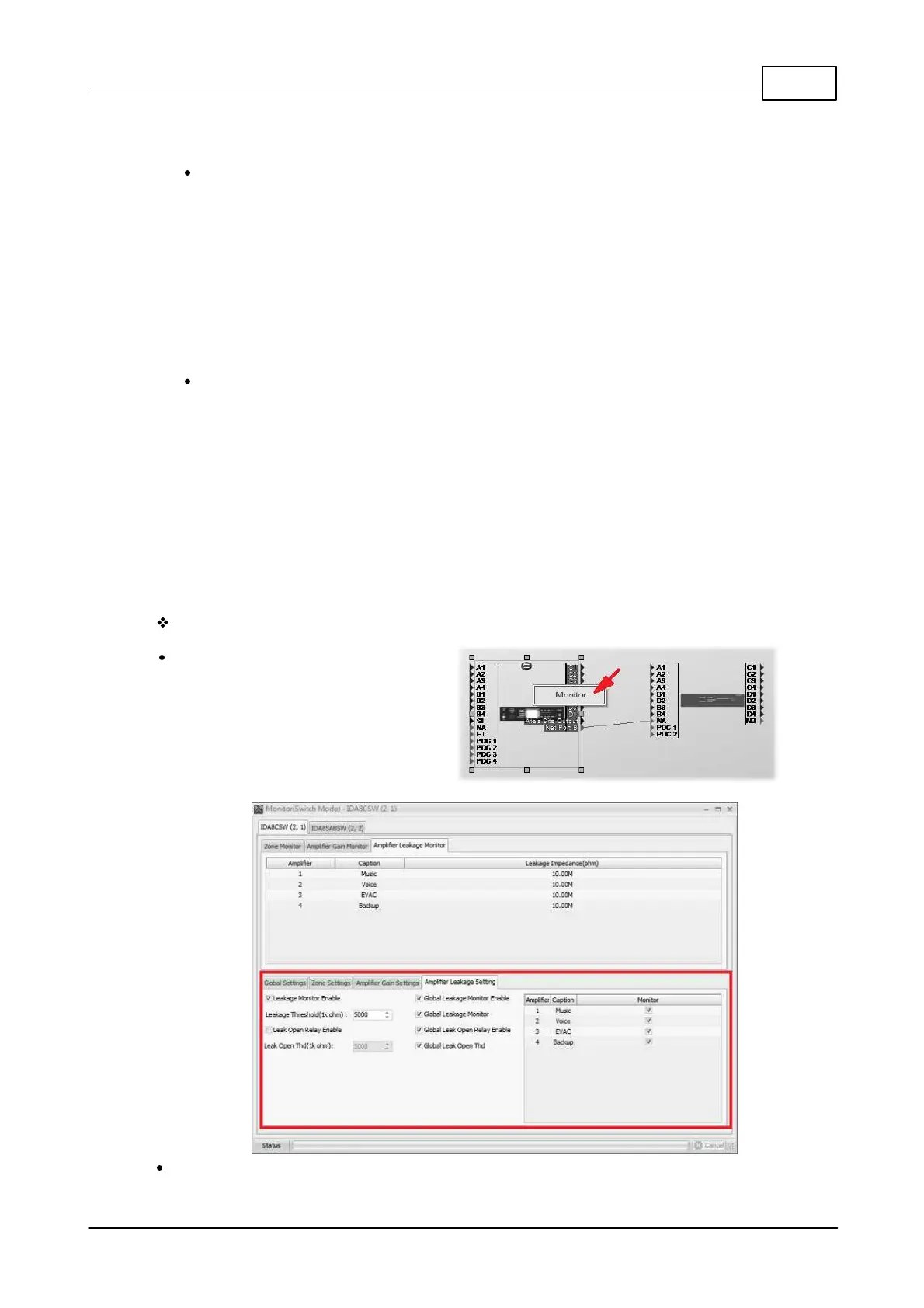

5.7.2.4 Amplifier Leakage Monitoring
Settings:
First, in Ateis Studio, right click
the IDA8C-SW icon.
Leakage Monitor Enable: A check box used to enable or disable the leakage detect function.
