Leakage Threshold (1k ohm): A threshold value for the leakage detection. If the leakage

impedance is lower than this value, the fault Leakage Occurrence is detected.

Leak Open Relay Enable: Open the relay setting when the fault Leakage Occurrence is detected

in the system.

Leak Open Threshold (1k ohm): A threshold value for the leakage detection. If the leakage

impedance is lower than this value, the leak open.

Global Leakage Monitor Enable: If users want to enable the monitoring function on all the

connected IDA8 processors, you need to click the [Global Leakage Monitor Enable] option first,

and change the [Leakage Monitor Enable] option either by clicking to enable this function or

unclick to cancel the monitoring function.

Global Leakage Threshold: If users want to enable the monitoring function on all the connected

IDA8 processors, you need to click the [Global Leakage Threshold] option first, and change the

[Leakage Threshold 1k ohm] option either by clicking to enable this function or unclick to cancel

the monitoring function.

Global Leakage Open Relay Enable: If users want to enable the monitoring function on all the

connected IDA8 processors, you need to click the [Global Leakage Open Relay Enable] option

first, and change the [Enable Leakage Open Relay] option either by clicking to enable this function

or unclick to cancel the monitoring function.

Global Leakage Open Threshold: If users want to enable the monitoring function on all the

connected IDA8 processors, you need to click the [Global Leakage Open Threshold] option first,

and change the [Leakage Open Threshold 1k ohm] option either by clicking to enable this function

or unclick to cancel the monitoring function.

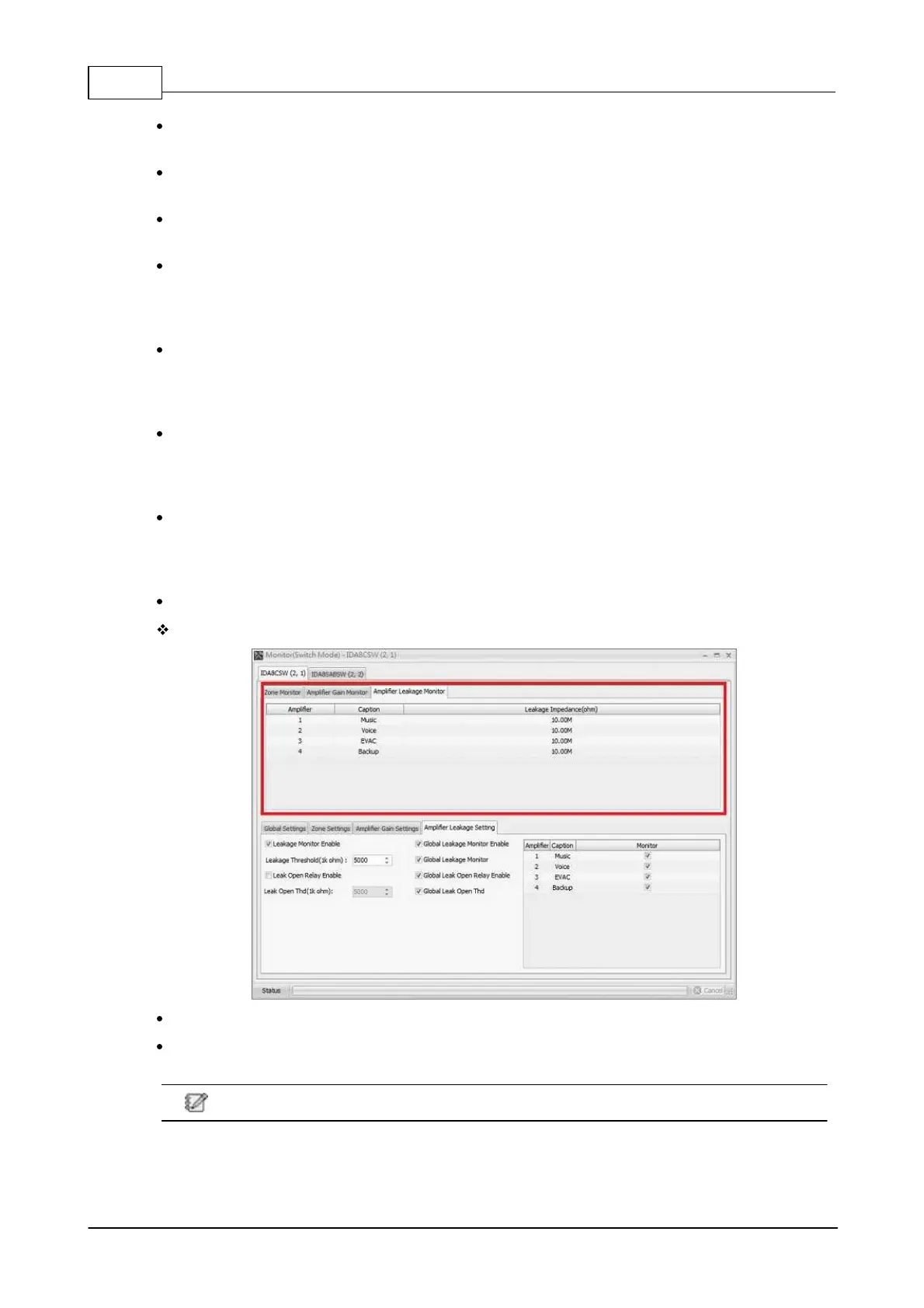

Monitoring Checkbox: Select the checkbox to activate the channel usage of amplifier.

Measurement:

Caption: Indicate the caption of amplifier channel.

Leakage Impedance(ohm): The impedance between the Line A/B +/- signal and ground causes the

current leakage.

When the amplifier is used by the zone, the value of Leakage Impedance will be detected.
