Ateis IDA8S User Manual

DSP Components 385
© 2020, ATEÏS. All rights reserved.
R pin (Reset): The ''pulse trigger'' that will give the R pin the triggering signal.
NC pin (No Change): When the input ''remains the same'', the NC will give a pulse to let the next
component which is connected to the Batcher component to identify the remain status.

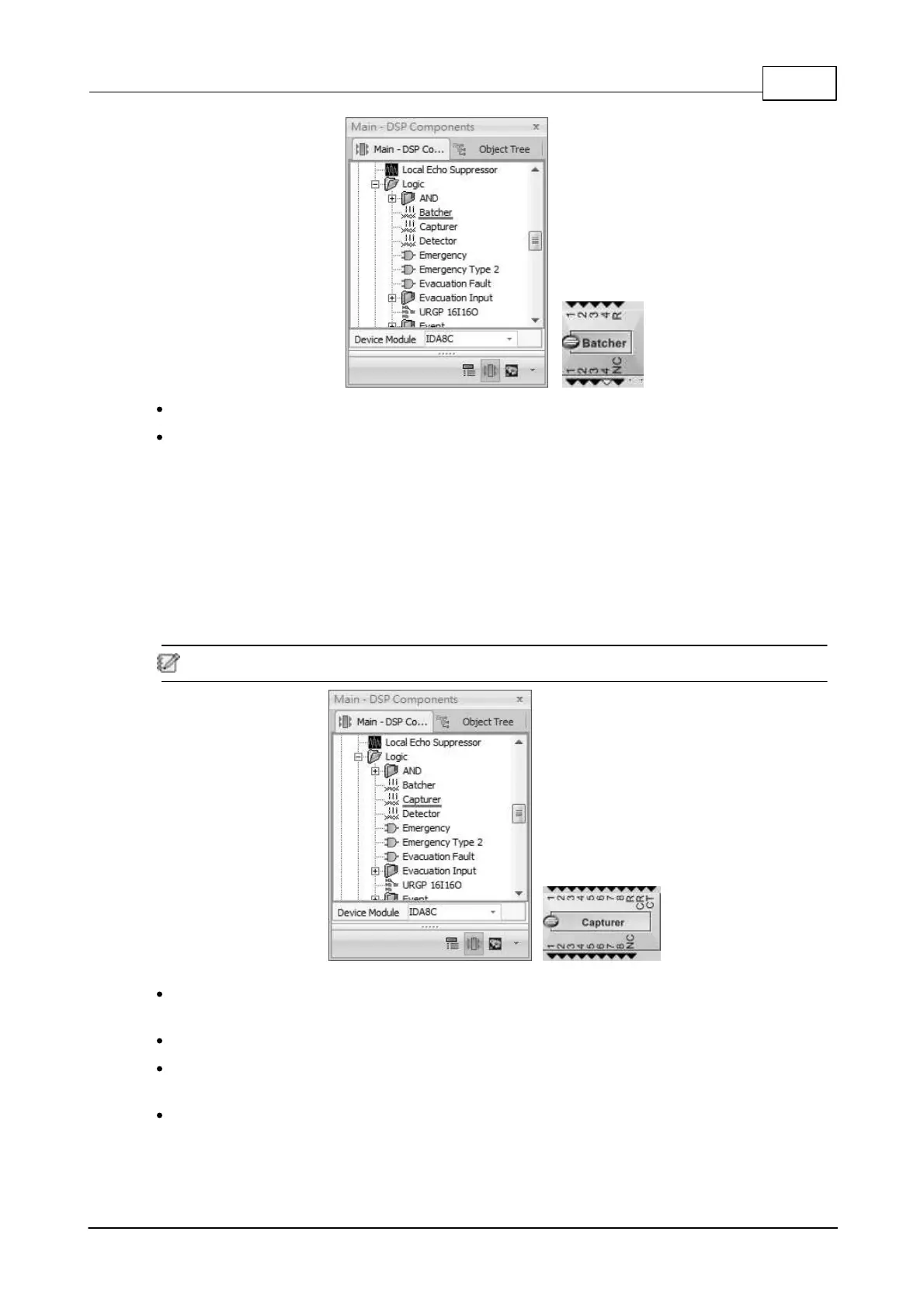

6.13.3 Capturer
Allow to capture the selected parameter of input and lock them as the output. Users can also use
the pins of Capturer to choose the time to capture and lock.
The basis of Capturer is based on two modes: [Ready] and [Disable]. [Ready] indicates that once
the input has changed, the Capturer component will capture the updated changes of input to output,
and after capturing, the component will be in Disable mode, which means no matter the change of
input, the output will not be affected.
The channel mapping of input and output via Capturer component need to be the same.
R pin (Reset): The ''pulse trigger'' that allows to capture the updates changes of input to output,
based on the [Ready] Mode.
CR pin: To compulsively lock the status, based on the [Disable] mode.
CT pin: If there's no changes on input, the Capturer component will still capture the input to output
again.
NC pin (No Change): When the input ''remains the same'', the NC will give a pulse to let the next
component which is connected to the Capturer component to identify the remain status.
