Ateis IDA8S User Manual

DSP Components 367
© 2020, ATEÏS. All rights reserved.

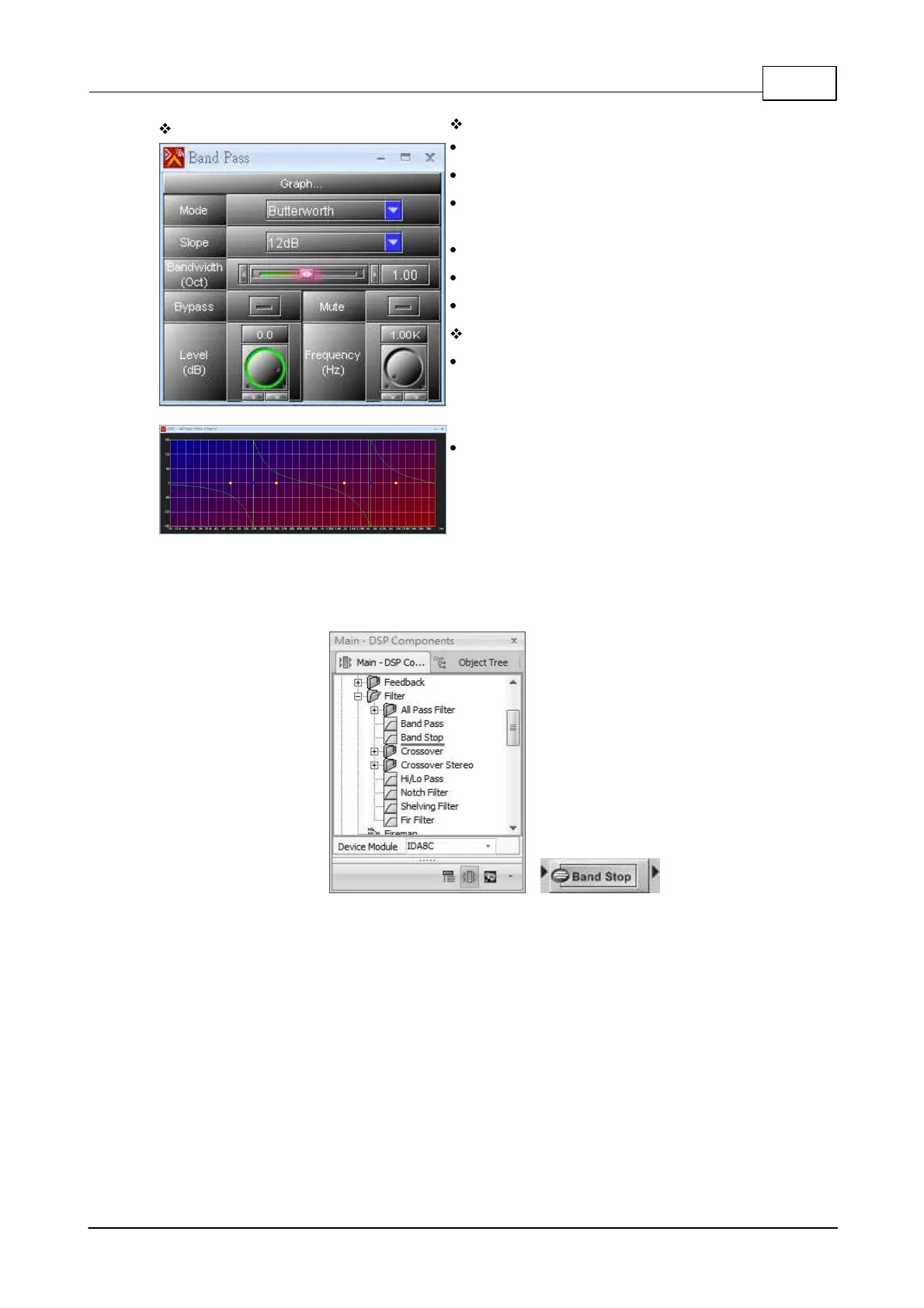

Control Window
Element Description
Mode: The type of filtering,
Slope: The slopes of attenuation.
Bandwidth: The difference between the upper and
lower frequencies in a contiguous set of frequencies.
Mute: Mute the filter's module.
Level: The gain of the filter's module.
Frequency: The frequency of cut.
Graphical Control Window
Axis:
o X: Frequency of output signal(Hz).
o Y: Level of input signal(dB).
Control Points:
o Blue: Adjust the element Frequency(Horizontal)
and Level(Vertical).
o Yellow: Adjust the element Bandwidth.
6.6.3 Band Stop
A Band Stop component is a filter that passes most unalterable frequency, but attenuates those in a
specific range to the very low levels. It works in an opposite function to Band Pass component.
