Status and fault indicator
Monitor speaker

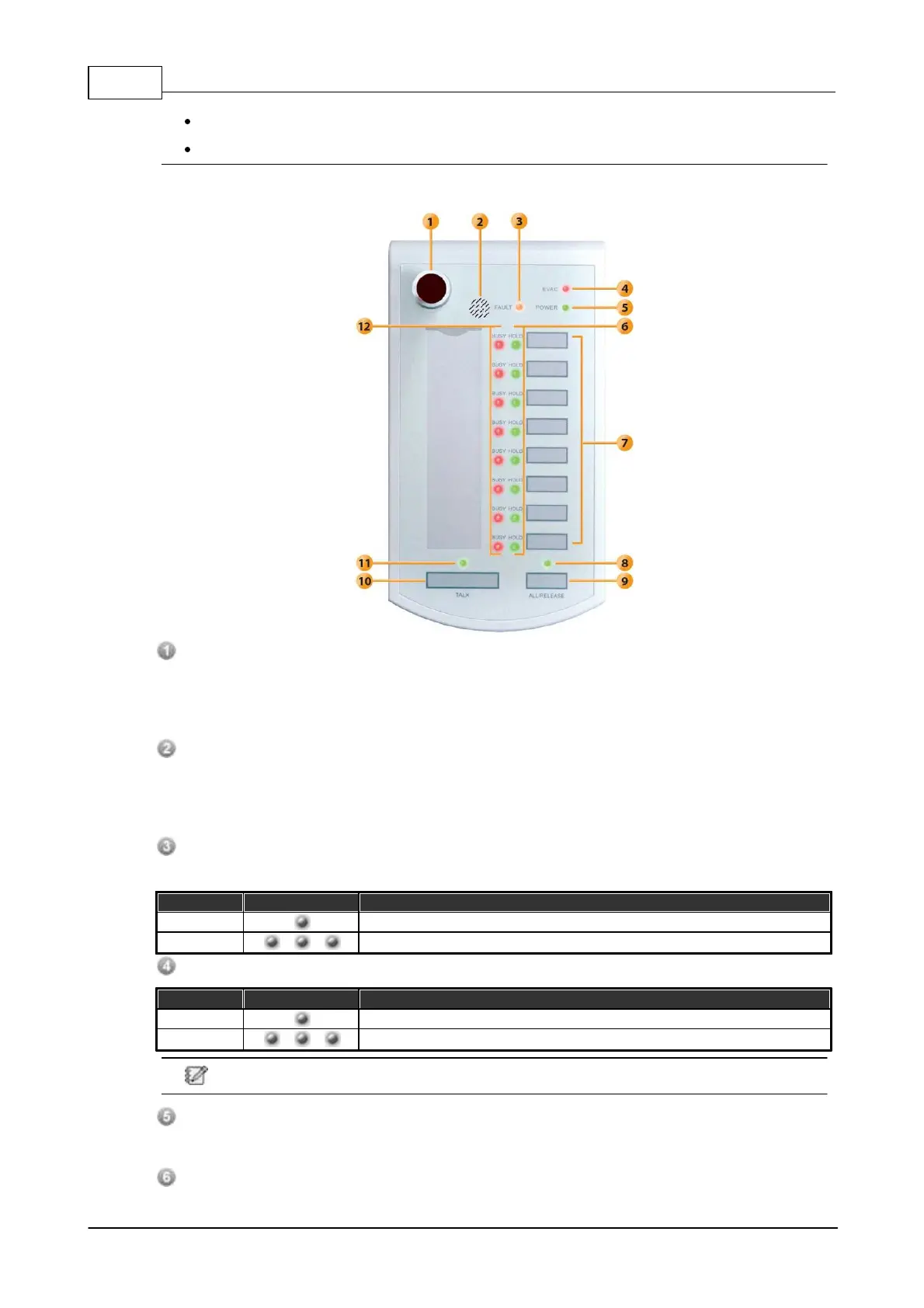

3.2.1.1.1 Control Panel
Microphone:
The sleek condenser gooseneck microphone. This unidirectional condenser microphone
warrants high quality directive signal pick up from the user and hence less interference from the
surroundings.
Monitoring Speaker:
This embedded speaker to play chime when paging or monitor signal from audio processor, it
needs to work with rs485 output component to get audio signal from other DSP components in
audio processor.
Fault LED:
Display fault status of system. Following table list the states of fault:
There are faults in audio processor.
Lost communication with audio processor.
EVAC LED:
System is under evacuation paging.
PPM AS does not do a "Plug-in" in Ateis Studio before using.
"Remote Plug-in" makes audio processor to recognize the peripheral devices.
Power LED:
Light up when the PPM-AS is powered on.
Hold LED:
