IDA8 Global-Net User Manual134
© 2020, ATEÏS. All rights reserved.

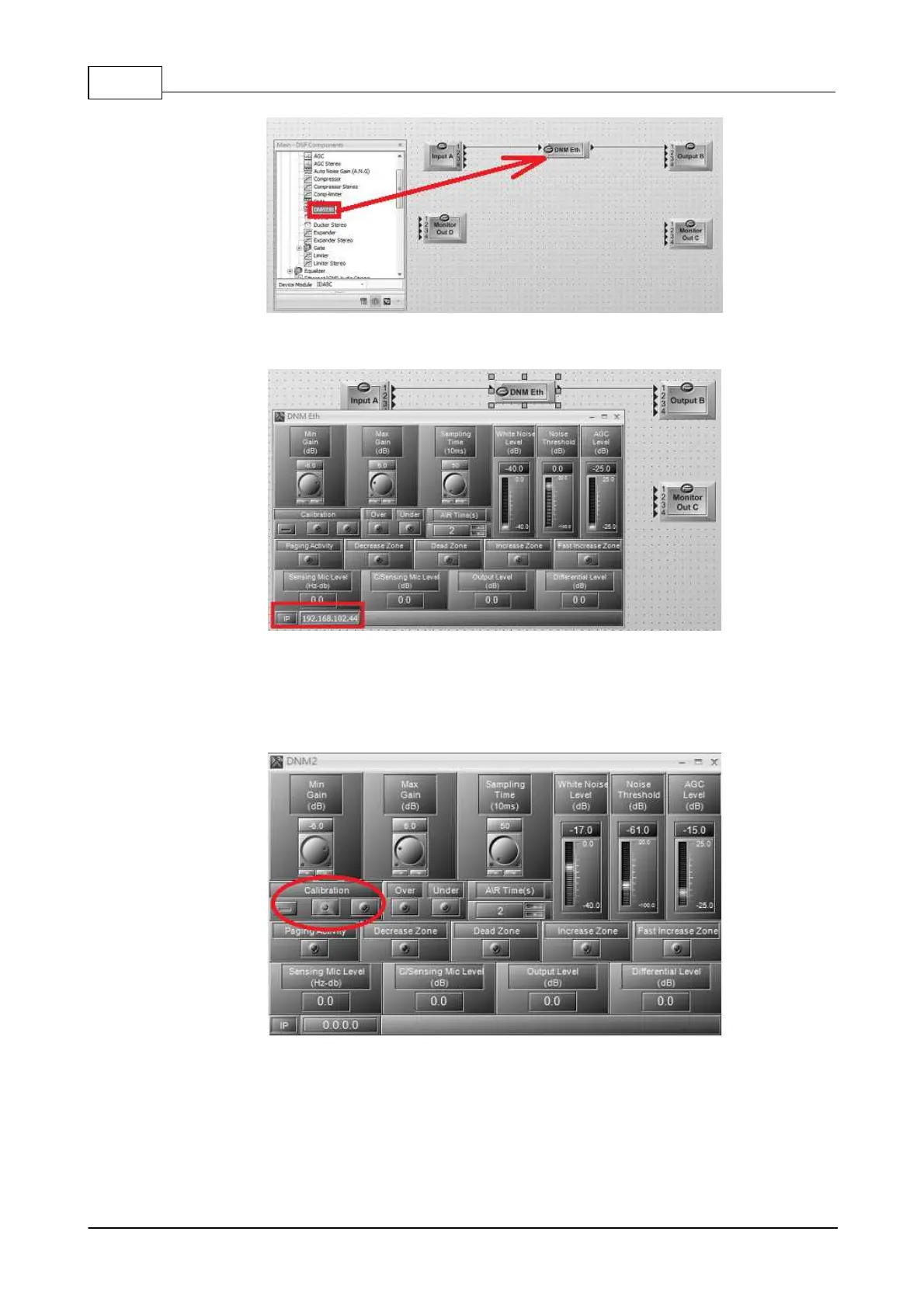

8. Then double click the [DNM Eth] component to open its control window, then enter the IP address
of ''Master DNM'' After that, then proceed the Compile & Store.
9. Store the configuration, and then online.
10.Click "DNM" component to open it's element window, press button [Calibration] to start the
calibration procedure. When it is calibrating, the red LED will light up, and the White Noise Level
(dB) will be auto-tuning (sending out a low frequency tone). Note: White Noise Level(dB) is
appropriate to stop around -20dB.
11.After the calibration is successful, the green LED will light up, and the DNM will start to work.
