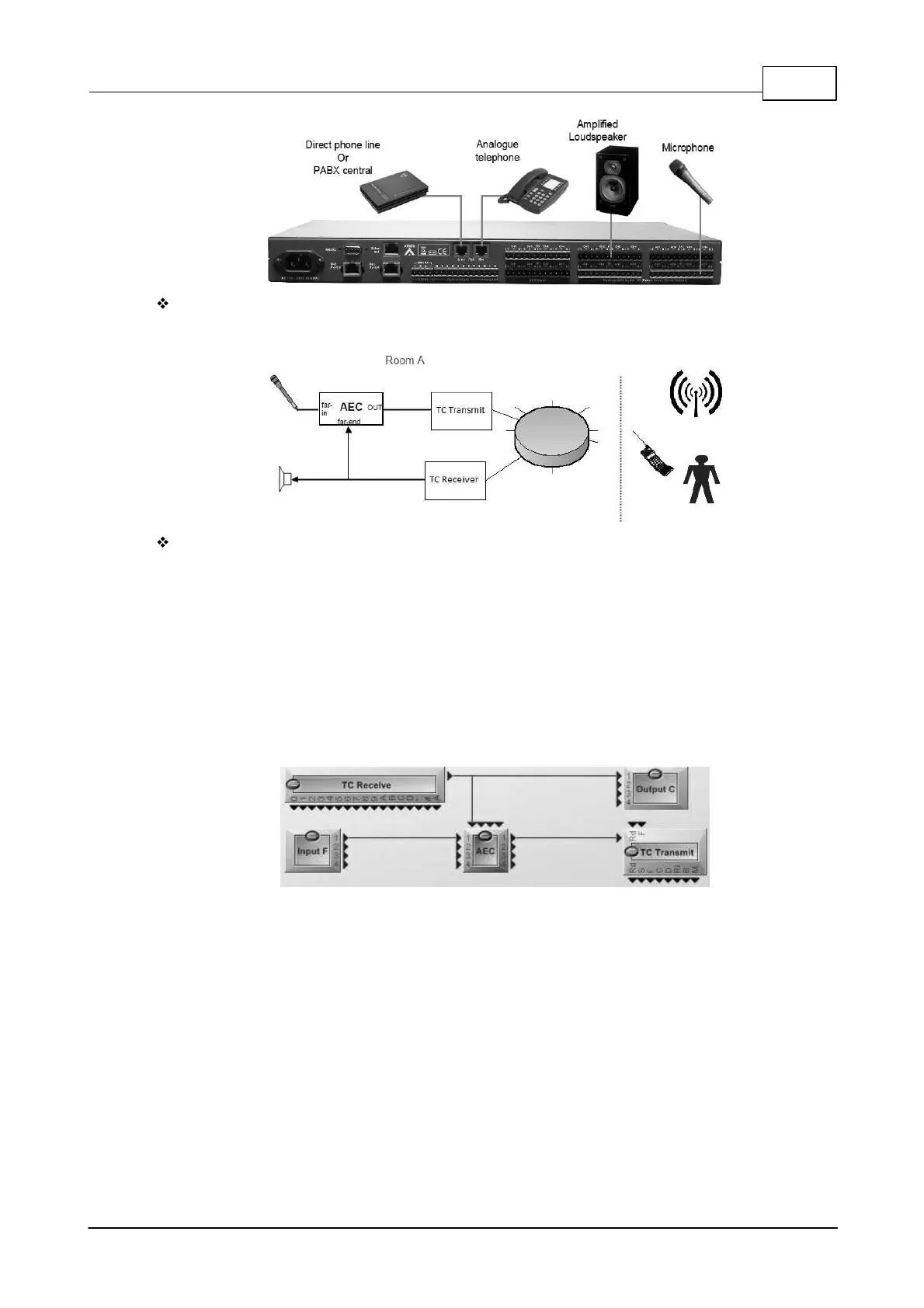

Schematic TC + AEC
Example ECS with Telephone Card calling a Cellphone
Design in the ECS
Regarding the basic schematic above, here is the corresponding design which must be created
with Ateïs Studio software.
The TC Transmit component is the interface between the local microphone (or audio sources)
and the telephone line. Its input has to be linked to an input component where the microphone is
physically connected to the ECS.
The TC Receive component is the interface between the local listening system (loudspeaker)
and the telephone line. Its output has to be linked to an output component where the listening
system is physically connected to the ECS.
You can use any input/output channels of the ECS.
