System Configuration 319
© 2020, ATEÏS. All rights reserved.

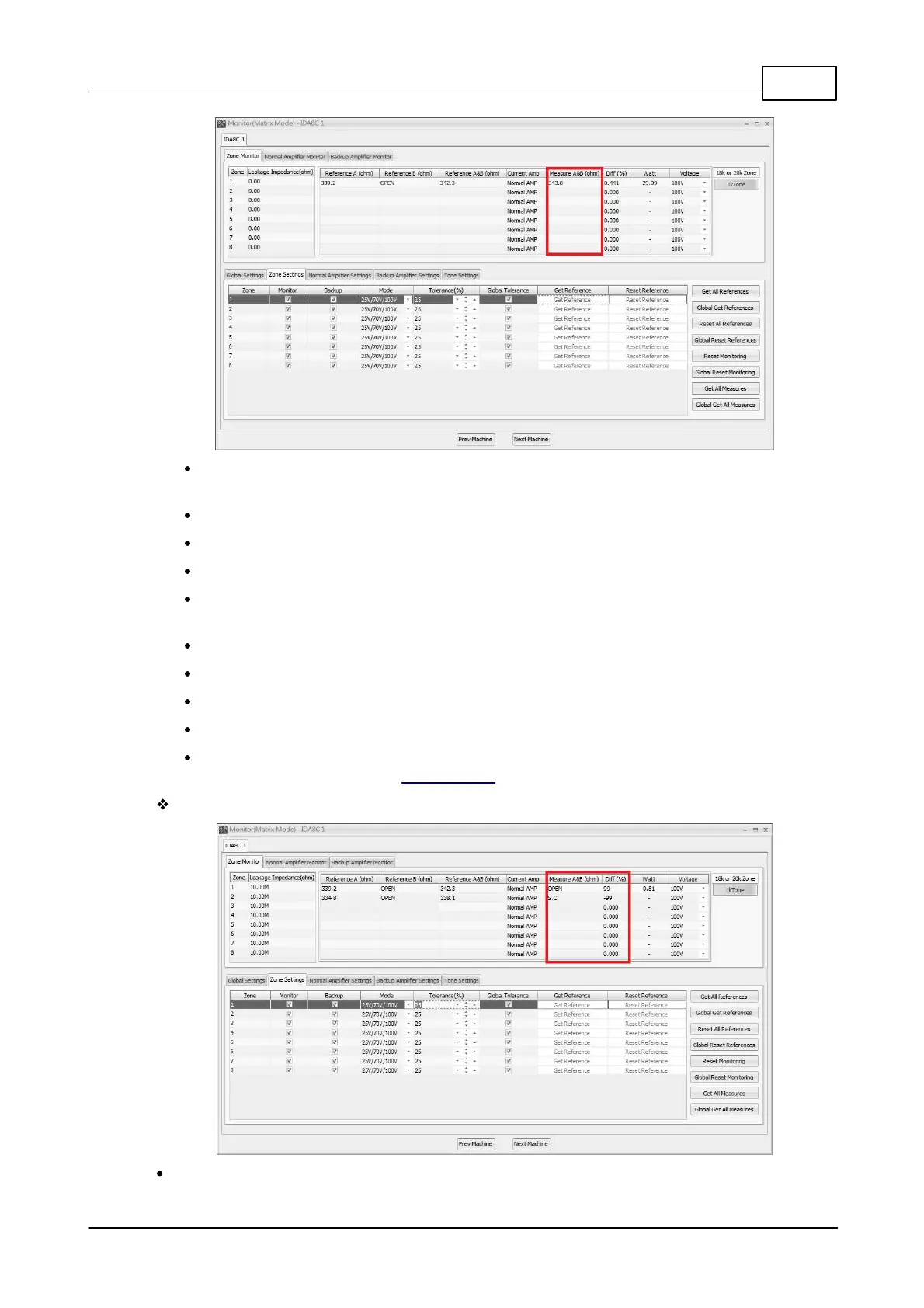

Leakage Impedance: The impedance between the Line A/B +/- signal and ground causes the
current leakage.
Reference A (ohm): Show the impedance value for reference received from Line A output.
Reference B (ohm): Show the impedance value for reference received from Line B output.
Reference A&B (ohm): Show the impedance value for reference received from Line A & B.
Current Amp: Show which amplifier is for the current zone (normal amplifier or backup
amplifier).
Measure (ohm): Show the impedance value of Line A & B.
Diff(%): Show the difference percentage of Measure(ohm) and Reference A&B (ohm).
Watt: Display the current watt value of connected speakers.
Voltage: Select the current voltage which connects to the amplifier.
[18K or 20K Zone]/[1K Tone]: Choose to display window based on your tone setting. Please
refer to [Frequency] option on Tone Settings chapter.
Faults:
Leakage Occurrence:
