Global Reset All Reference: Reset all the reference of impedance value on all the IDA8

processors.

Reset Monitoring: This will tell the IDA8C/S to reset the monitoring and to initialize the state of

the devices. In the case of zone short fault or leakage relay open, the IDA8C/S will open the

internal relay to stop the output of the audio signal to speaker. After the relay is opened, the

IDA8C/S has no way to know if the circuit outside has a short or not. Therefore, after the user

repairs the circuit, the user needs to reset the monitoring to close the relay to the output audio

signal to the speaker again, so that the IDA8C/S can monitor the short problem again.

Global Reset Monitoring: Reset the monitoring function on all the IDA8 processors.

In the case of zone short fault, the IDA8C slave/ SW will open the internal relay to stop the

output of the audio signal to speaker. After the relay is opened, the IDA8C-SW has no way to

know if the circuit outside has a short or not. Therefore, after the user repairs the circuit, the

user needs to reset the monitoring to close the relay to the output audio signal to the

speaker again so that the IDA8C-SW can monitor the short problem again.

Get all Measures: Get the current value of Measure A&B (usually for 1K Tone) on the selected

IDA8 processor.

Global Get All Measures: Get all the reference value of Measures A&B on all the IDA8

processors.

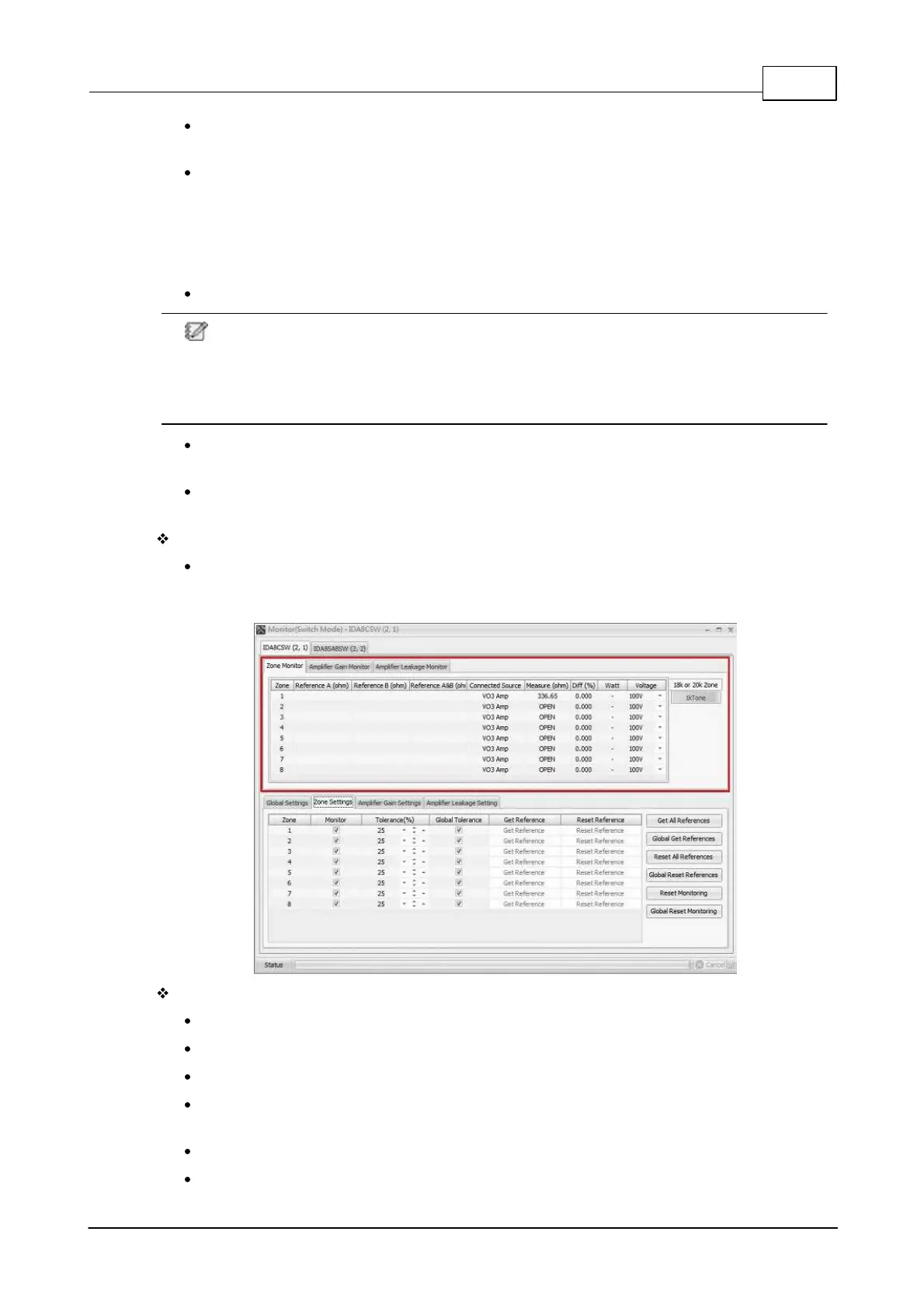

Measurement:

After completed the function setting at the lower part of [Zone Settings] page, the IDA8C-SW

will start to measure the value which is received from the internal circuit, and then displays it

on the grid at the upper part of the window.

Functions on the upper side:

Reference A (ohm): Display the impedance value for reference received from Line A output.

Reference B (ohm): Display the impedance value for reference received from Line B output.

Reference A&B (ohm): Display the impedance value for reference received from Line A & B.

Connected Source: Display which amplifier is for the current zone (normal amplifier or backup

amplifier).

Measure (ohm): Display the impedance value of Line A & B.

Diff(%): Display the difference percentage of Measure(ohm) and Reference A&B(ohm)
