Maximum Output Level:
10 dBu
Output Impedance:
300 Ohm
THD:
@ 1kHz at output < 0.02
Bandwidth:
@ -3dB at output = 20Hz ~ 20kHz
Noise:
@ 22Hz ~ 22kHz = -85dBu
Maximum Input Level:
16 dBu
Input Impedance:
11k Ohm
THD:
@ 1kHz at input < 0.02
Bandwidth:
@ -3dB at input < 20Hz ~ 22kHz
RS232 voltages
-6.5/+6.5
Distance up to 1000 meters for using external power supply.
Note: The distance using internal power supply is differ from each product.

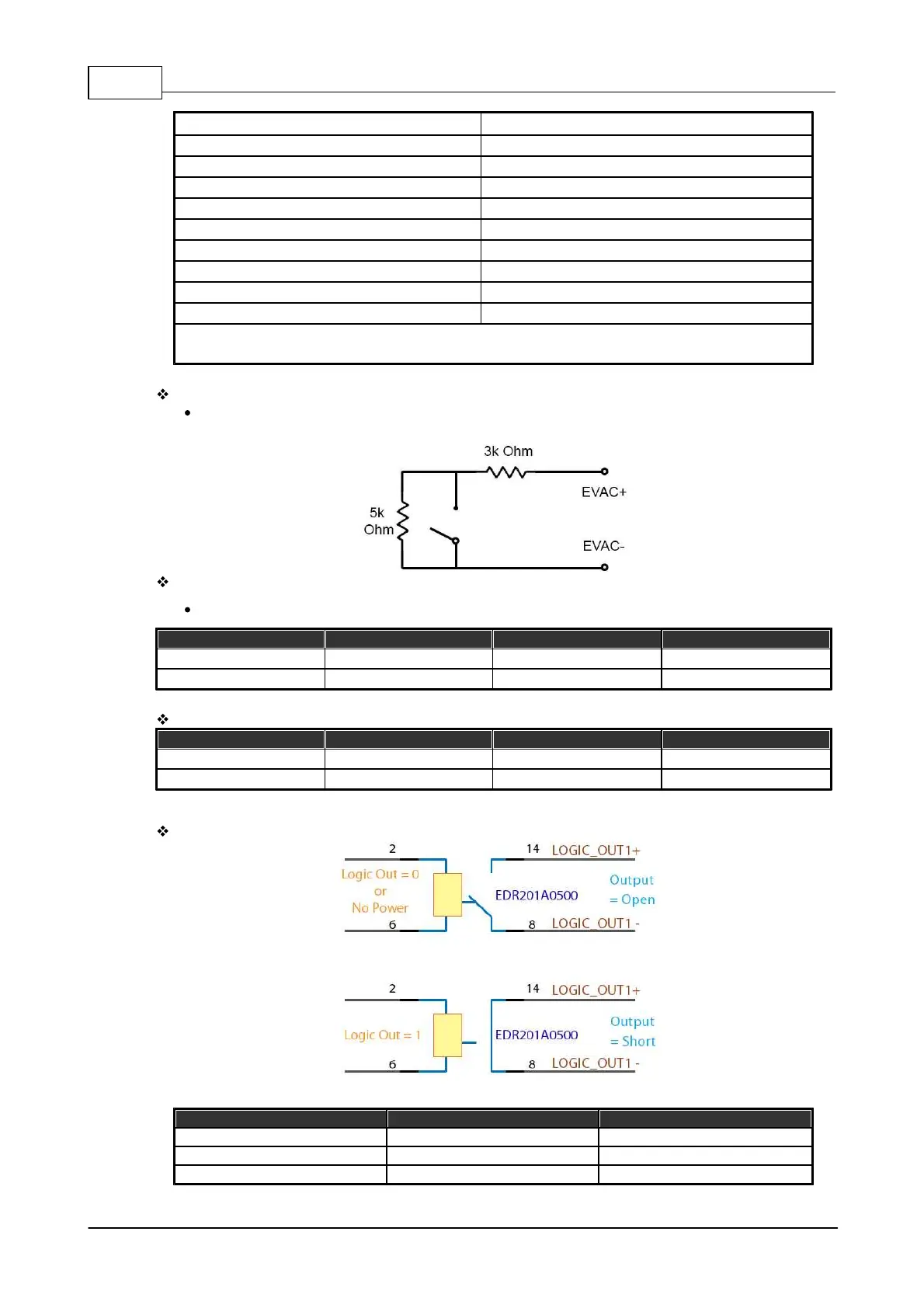

Evacuation Inputs (Contact Mode)
4 status: On, Off, Open and Short
Evacuation Inputs (Voltage Mode)
On Voltage
Item
Minimum
Maximum
Unit
High
18
72
VDC
Low
-
0.5
VDC
Contact Outputs + EVAC, Fault State Outputs
Item
Minimum
Maximum
Unit
Voltage
-
100
VDC
Current
-
0.5
ADC
Contact Output Relay
Contact Output
Contact Form
Maximum
Unit
Carry Current
1.0
ADC
Maximum Voltage
100
VDC
Electrical Life
1 x 10^8 (Ref 10VDC, 10mA)
-

Ateis IDA8S Specifications

General

Brand	Ateis
Model	IDA8S
Category	Security System
Language	English
