3. Troubleshooting
C
A
B
FLM HD

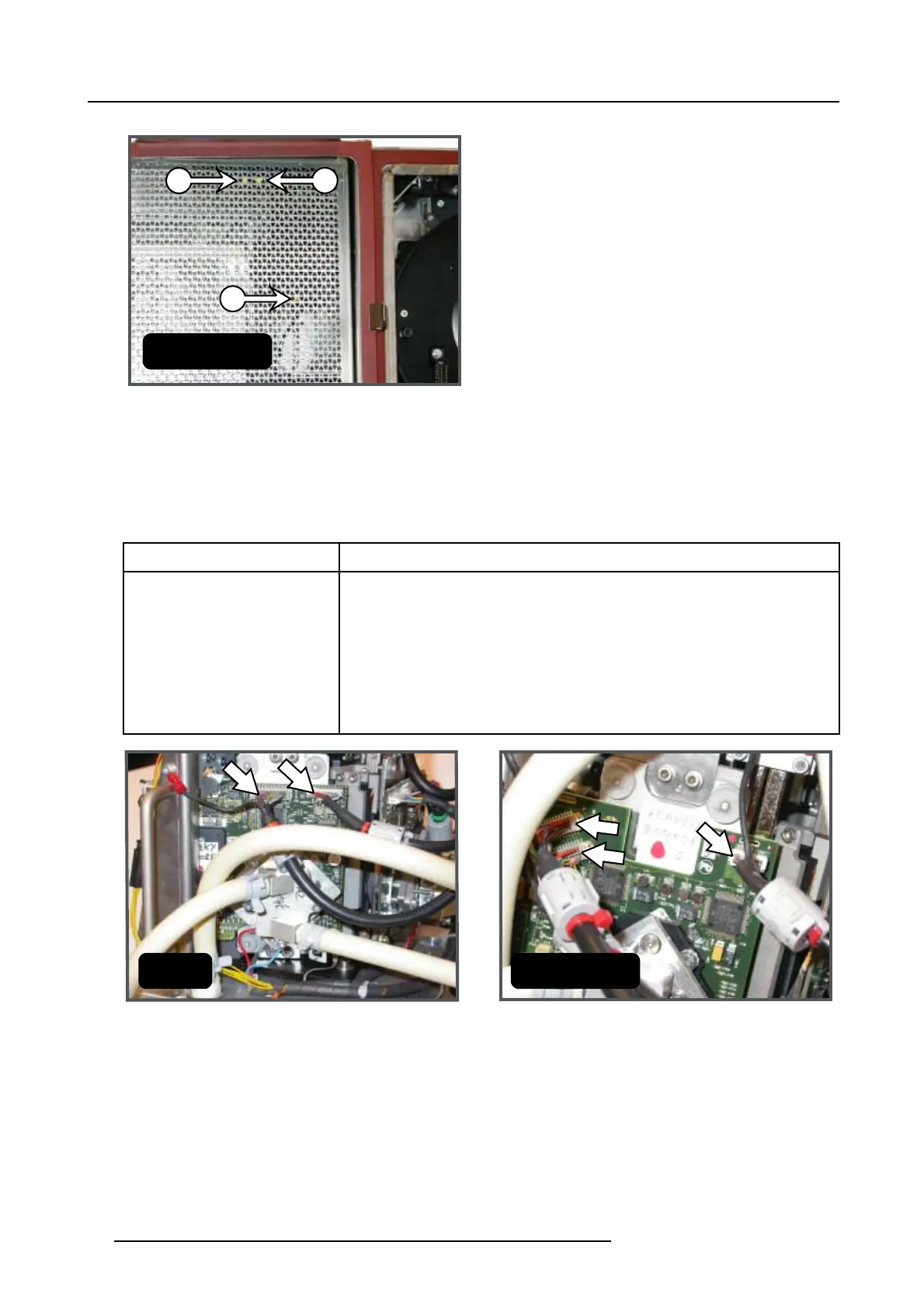

Image 3-4
Status LED’s of the Formatter Interface Board (HD version). Visible trough the grid behind
the front filter.
A Orange LED “PWRGood” OK.
B PowerGood status: LED color = Green “High”; Yellow “Low”;
Red “Fail”.
C FPGA status: LED color = Green “Normal”; Yellow “Boot”; Red
“Fail”.
Error 1693 : “Blue form. start failed”
Situation Solution
No communication with the
forma
tter board of the blue channel.
The projector fails to start.
• Check if the data cables between the Formatter Interface Board (FIB) and the
formatter board of the blue channel are plugged in properly.
• Check if none of the wires came loose from the plugs on the wire unit.
• Reboot the projector. If the problem remains contact Barco for further instructions.
The formatter board of the blue channel is malfunctioning and has to be replaced
at t
he factory.
FLM FLM HD
Image 3-5
Formatter board with data cables plugged in. Two data cables for FLM and three data cables for FLM HD per formatter board.
18 R59770072 FLM SERIES 19/03/2007
