28. Start pulse generator

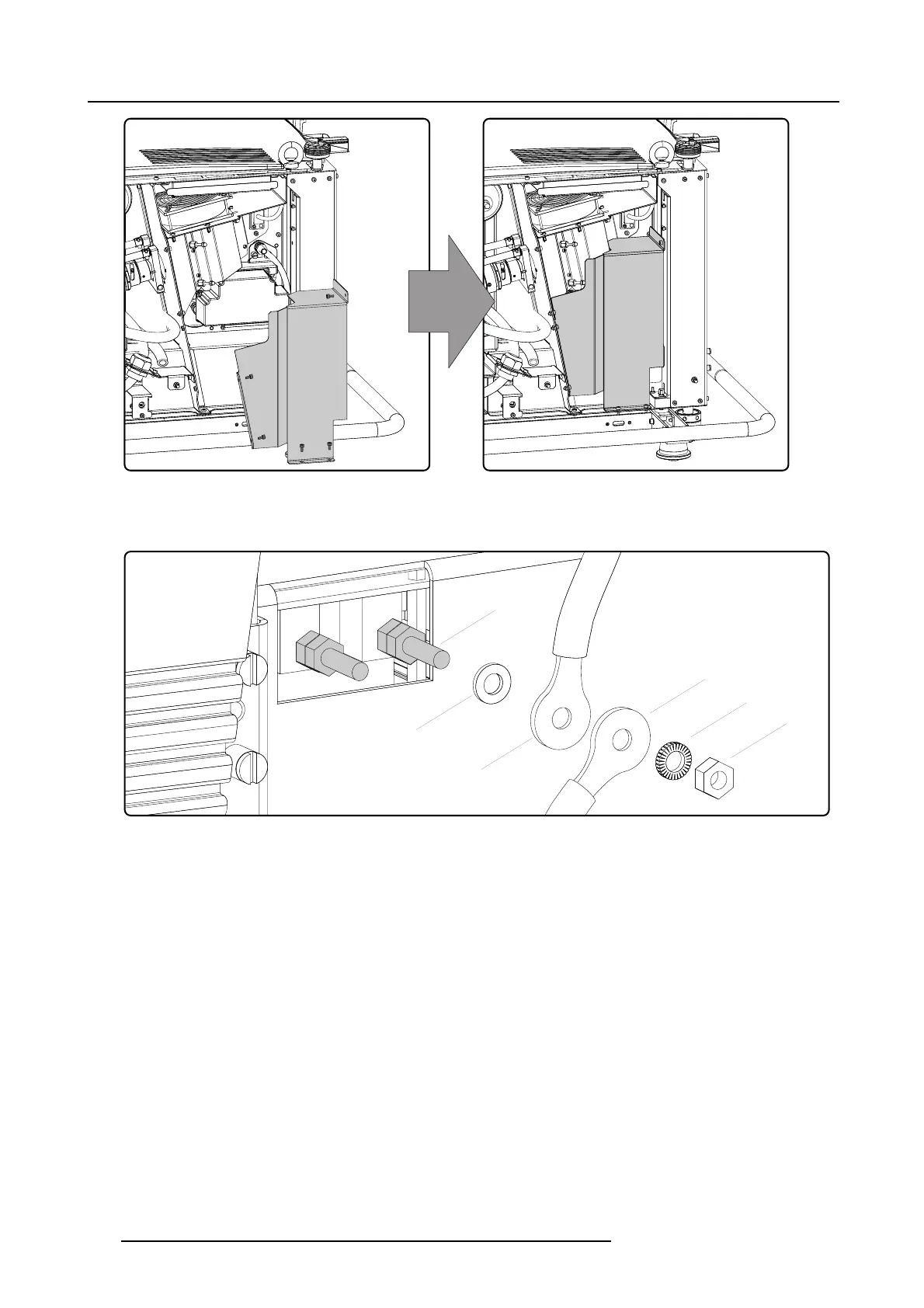

Image 28-8
4. Connect the power cables coming from the SPG module with the “LAMP OUT” sockets of the LPS module as illustrated.
Warning: Make sure to place the washers and cable eyes in correct order upon the pin as illustrated. Always use a plain
washer between the output pin and the cable eyes.
E2
L
N
P
W
E1
Image 28-9
P LPS output pin.
W Plain washer.
L Lock washer.
E1 Cable eye from SPG module.
E2 Cable eye from LPS unit.
NNut.
Warning: Respect the polarity of the socket and cables. Red marked cables with the “+” pin, black marked cables with the “-”
pin.
