Belarus 892 - Page 106

892-0000010B OM
106
- the angular travel of lever 6 under the action of spring 7 in both directions from the
neutral position should be from 7 to 10 degrees;
- install plate 7 and cotter pins 3.2x18.019 GOST 397-79 on adjusting screws 11
(Figure 3.5.1);
- install the rear axle hatch cover in place.

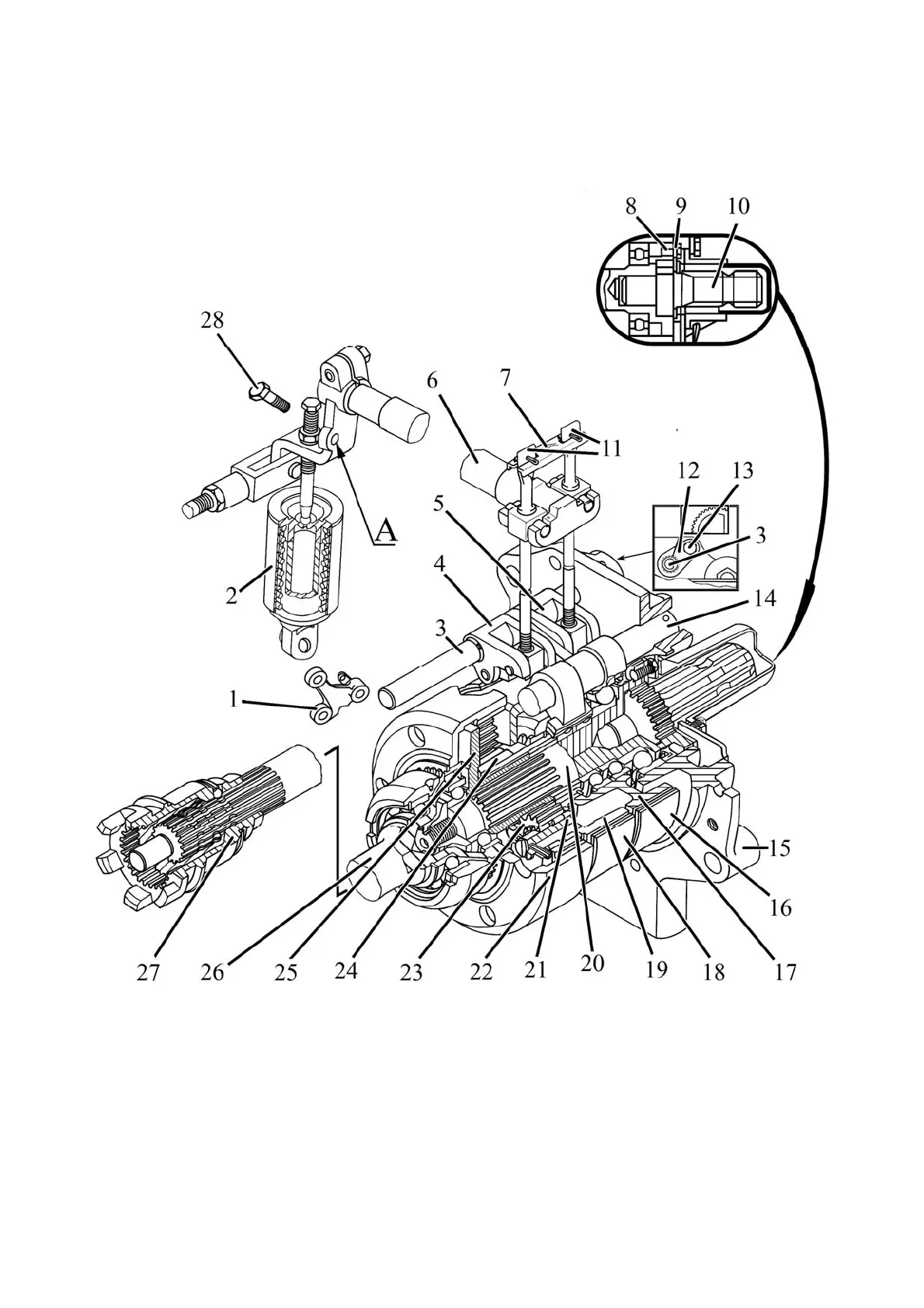

1 - bracket; 2 - spring; 3 - eccentric axle; 4, 5 - lever; 6 - control shaft; 7 - plate; 8 –
shaft end fixing bolt; 9 - locking plate of the shaft end; 10 – shaft end; 11 - adjusting screw;
12 - locking plate; 13 – fixing bolt for locking plate; 14 - axle; 15 - cover; 16, 18 - brake bands;
17 - actuating drum; 19 - brake drum; 20 - shaft; 21 - planet gear axle; 22 - crown gear; 23
- planet gear; 24 - sun gear; 25 - carrier; 26 - crown gear shaft; 27 - drive shifting clutch
(continuous/ground-speed); 28 - M10x60 bolt, necessary for adjusting clearance in the PTO
band brakes (technological).
Figure 3.5.1 – Rear PTO planetary gear unit
