Compensation of the front cardan shaft movement when the front drive axle swings is
provided by axial movement of flange 1 in bushing 5.
To prevent wrapping of straw crops on the cardan shafts during harvesting operations
safeguard is provided.
3.16.3.2 Transfer box

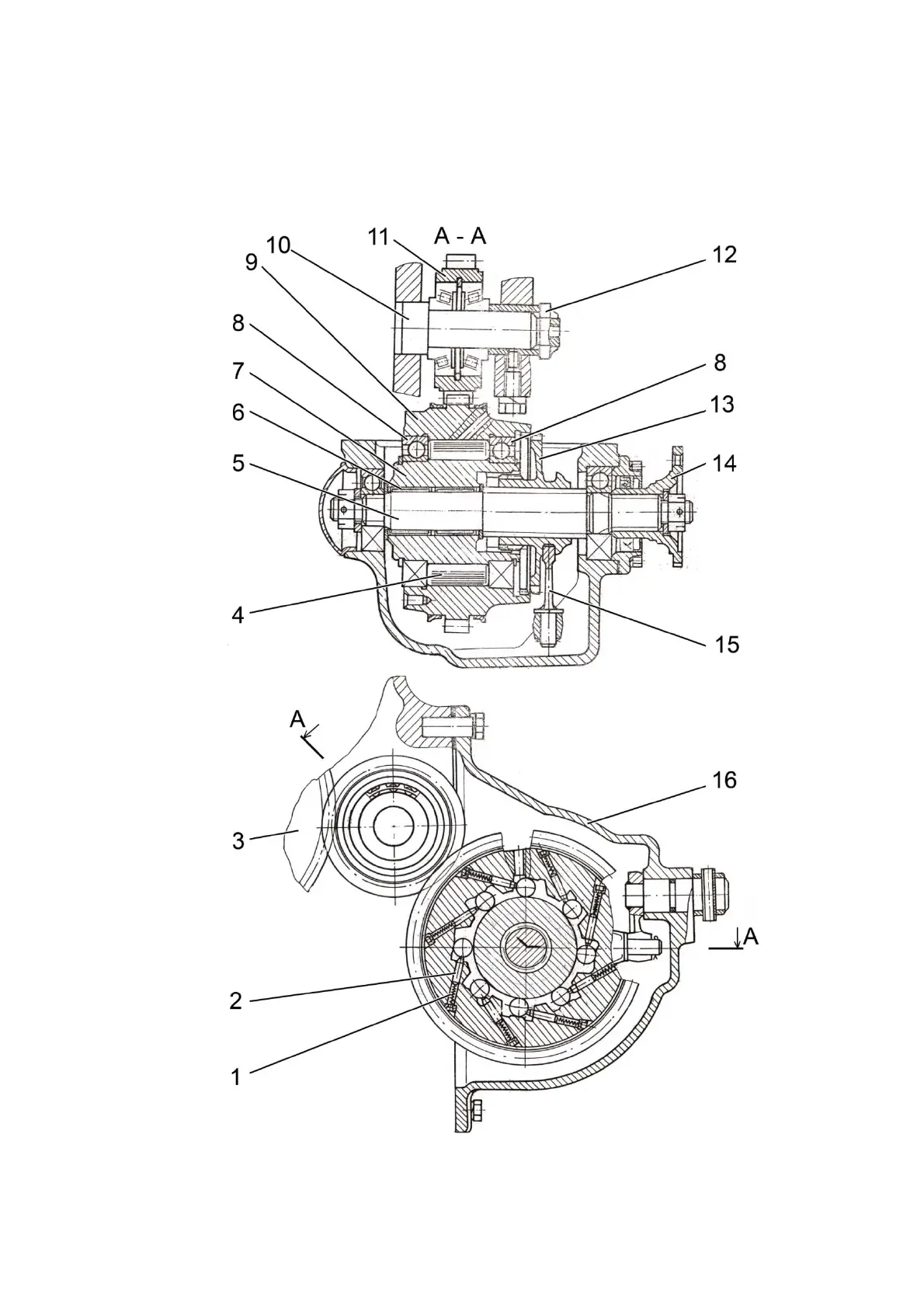

1 - spring; 2 - pin; 3 – GB gear; 4 – roller; 5 – shaft; 6 - bearing; 7 – bushing; 8
– bearing; 9 – gear; 10 – axis; 11 – intermediate gear; 12 – nut; 13 – toothed coupling; 14
– flange; 15 – roller with lever; 16 – housing
Figure 3.16.8 Transfer box of the front drive axle
