Belarus 892 - Fuses of Dashboard with a Molded Panel

892-0000010B OM
56
7 - fuse for front service headlights, beacon (when installed) with a rating of 25 A;
8 - fuse for controlling the fan-heater with a rating of 25A;
9 - power supply fuse for loads operating with the starter and instrument switch in the
“instruments on” position: power supply to fuses 15 and 16, instruments, speed sensors,
rated 25 A;
10 - fuse for powering the electric motor of the fan-heater with a rating of 25 A (when
the fan-heater 80-8101720 is installed, this fuse is not in use);
11 – power supply fuse for marker lights of the left side, terminal (7) of the trailer
socket, license plate lighting with a rating of 7.5 A;
12 – power supply fuse for marker lights of the right side, terminal (5) of the trailer
socket, illumination of instruments with a rating of 15 A;
13 - fuse for low beam of the left road headlight with a rating of 7.5 A;
14 – fuse for low beam of the right road headlight with a rating of 7.5 A;
15 - fuse for powering instruments, speed sensors, pilot lamp units, warning sound
alarm (buzzer) and break-in relay of the parking brake with a rating of 7.5 A;
16 - fuse for the turn flasher relay, glow plug unit, glow plug relay coil with a rating of
15 A.

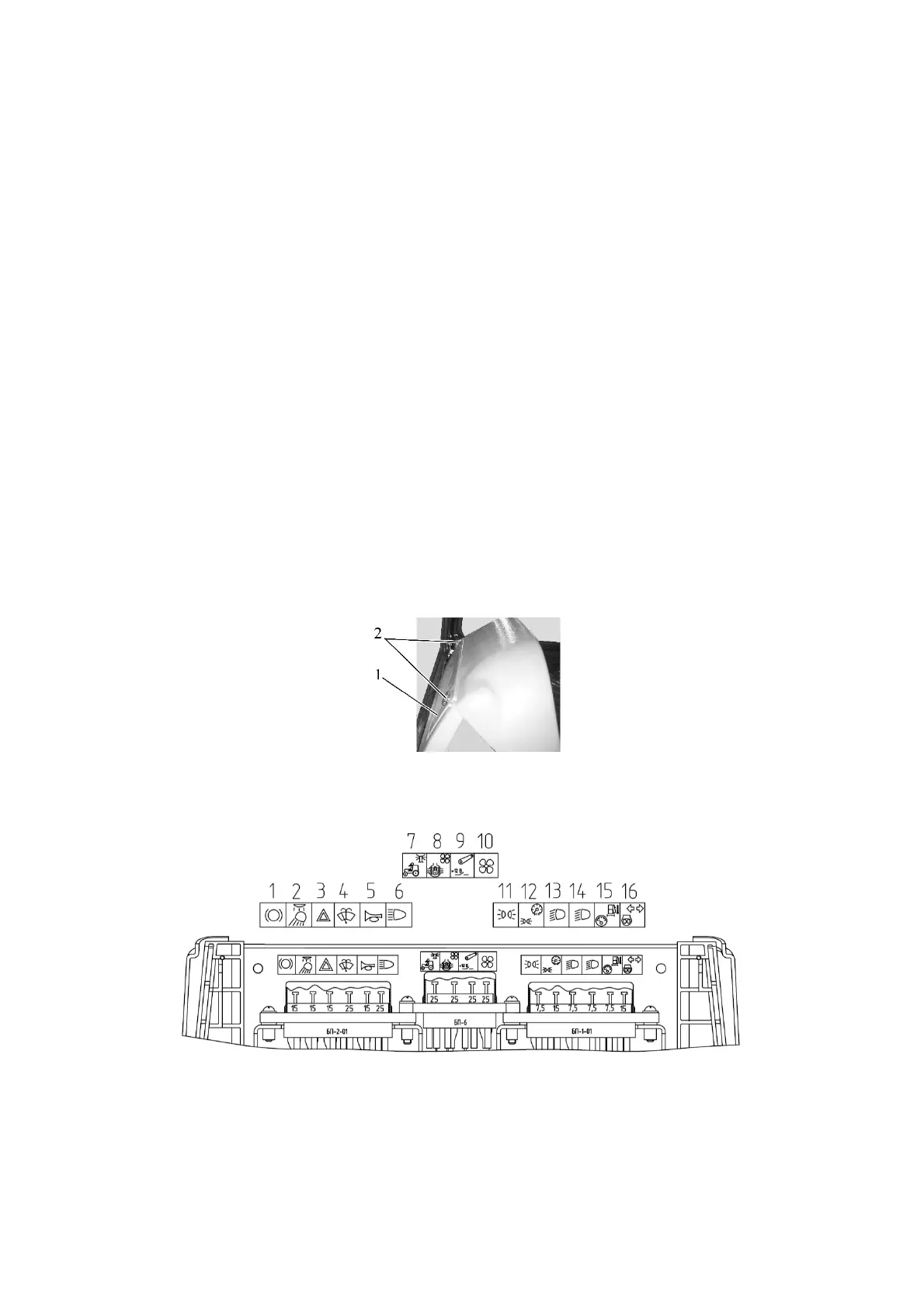

Figure 2.17.2 - Fuses located in the dashboard with a castable panel
2.17.3 Fuses of dashboard with a molded panel
In the dashboard with a molded panel (to be installed on order instead of the dash-
board with a castable panel), three fuse boxes for electrical circuits are installed. To access
the fuses, undo two screws 2 (Figure 2.17.3) and open dashboard cover 1.
1 – dashboard cover; 2 – screw.
Figure 2.17.3 – Arrangement of fuse boxes in the dashboard with a molded panel
The fuses located in the dashboard with a molded panel are shown in Figure 2.17.4.
Figure 2.17.4 – Arrangement of fuses in the dashboard with a molded panel
