Belarus 892 - Shifting between Gears in Transmission with Mechanical or Synchromesh Reducing Gear

892-0000010B OM
36

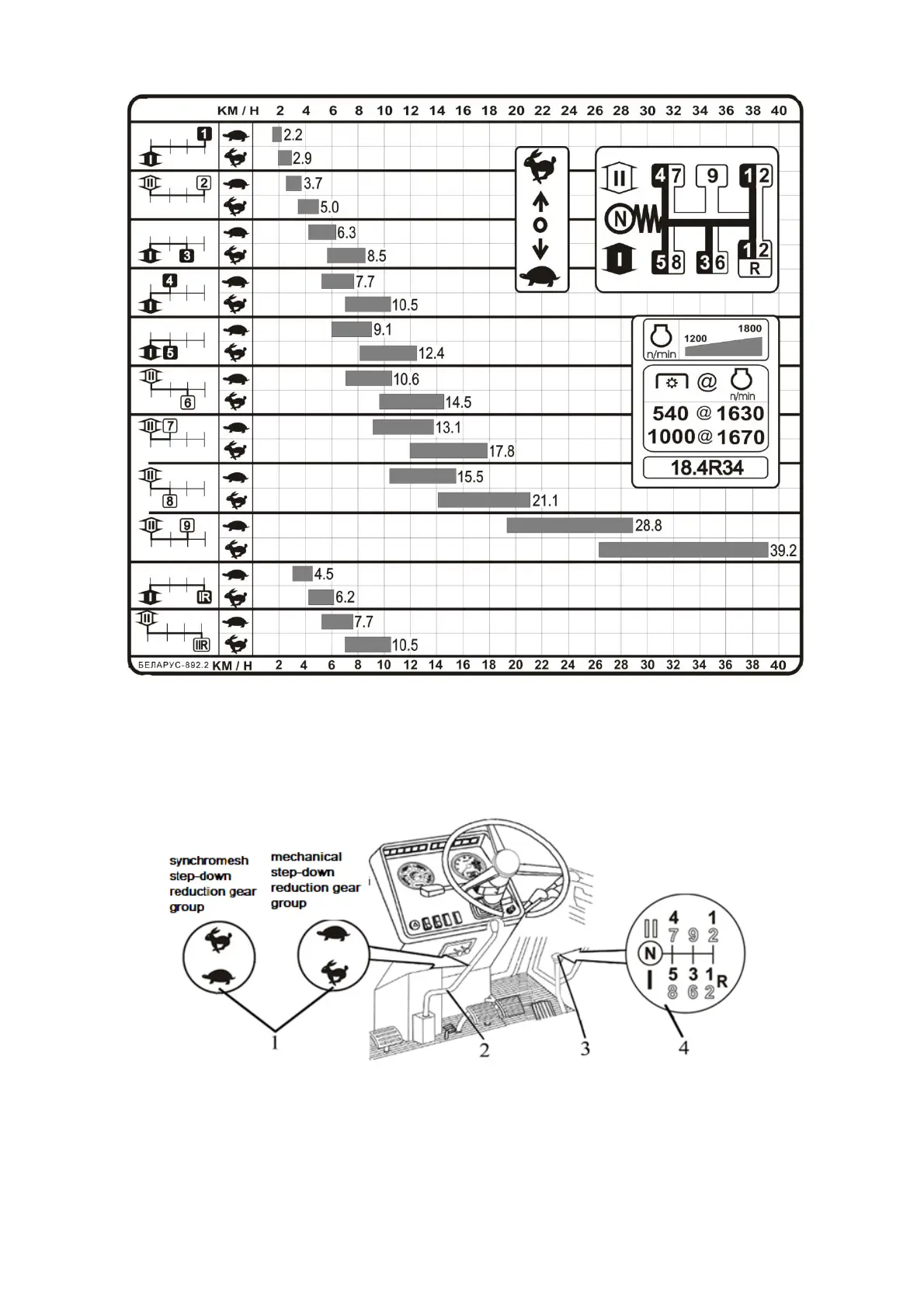

Figure 2.13.3 - Velocity diagram of the BELARUS-892.2 tractor with 18.4 R34(F-11)
rear tires.
2.13.3 Shifting between gears in transmission with mechanical or synchromesh reducing
gear
Controls of gearbox with reducing gear are shown in Figure 2.13.4.
1 – diagram of shifting between passes of reducing gear; 2 – reducing gear control
lever; 3 – range and gear shifting lever of gearbox; 4 – diagram of shifting between ranges
and gears of gearbox.
Figure 2.13.4 – Gearbox control
