Belarus 892 - Tow Hitch TSU-2 (Hydraulic Hook) and Combined Unit TSU-2М-02 (with Hydraulic Hook in Operation Position and Pendulum in Additional Position)

892-0000010B OM
140
3.13.2 Tow hitch TSU-2 (hydraulic hook) and combined unit TSU-2М-02 (with hydraulic
hook in operation position and pendulum in additional position)

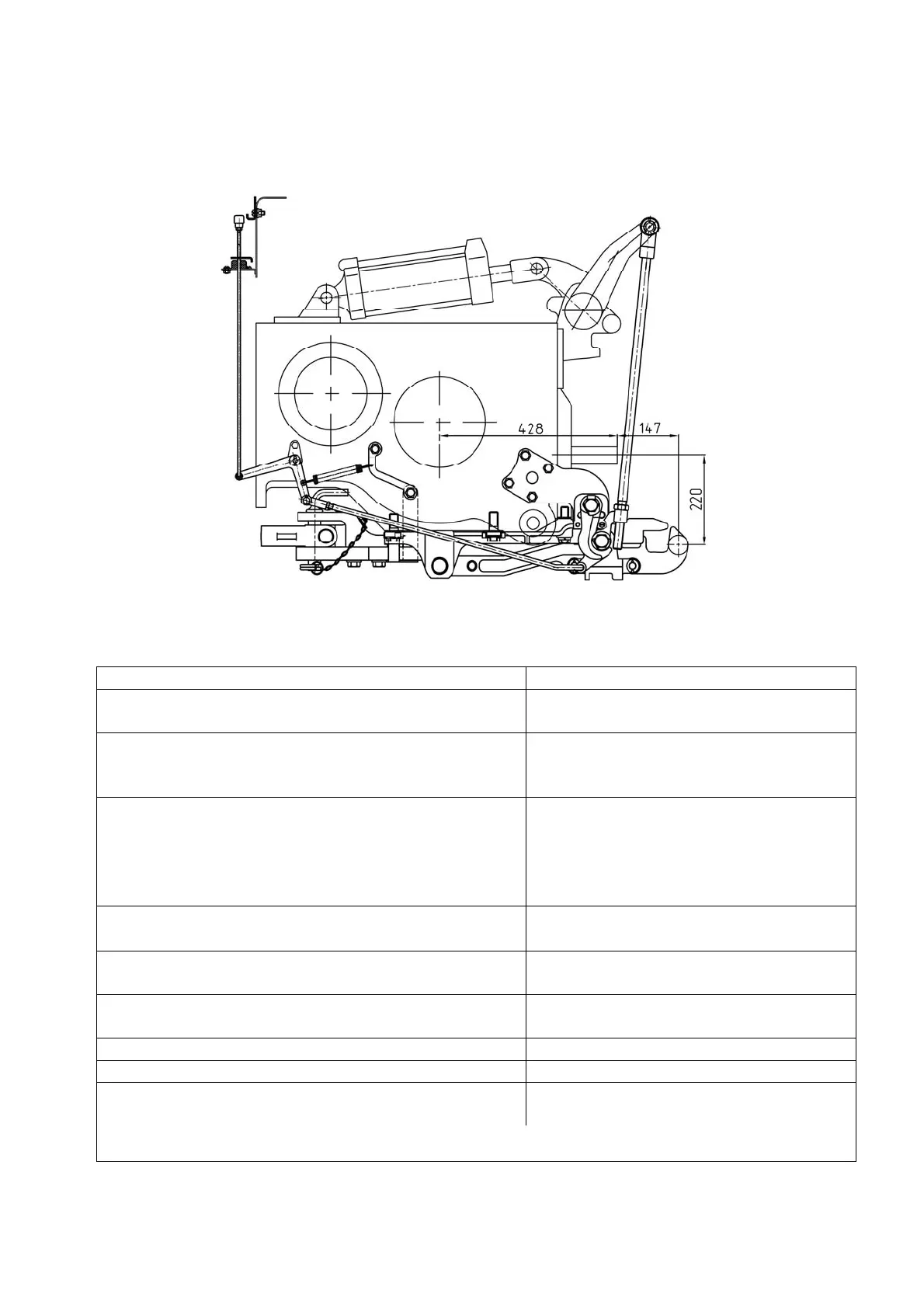

Figure 3.13.1 – Installation scheme of TSU-2 (hydraulic hook) and TSU-2M-02
(combined unit with hydraulic hook in operation position)
Table 3.13.1 – Basic parameters and coupling dimensions of TSU-2 (hydraulic hook)
Standard size (configuration) DH-2 (hydraulic hook)
1 Mounting location Fastening in bottom and side parts of
rear axle housing
2 Purpose For connection and coupling of agri-
cultural trailed, semi-trailed machines
with traveling wheels, for semi-trailers
3 Design features Hydraulic hook with control through lift
linkage, provides automatic coupling
with eyes of agricultural machines and
semi-trailers.
4 Distance between PTO shaft end and connec-
tion pin axis, mm
147
5 Vertical load on tow hitch in coupling point, kN,
not more than
12
6 Turning angle of machine trailing appliance in
horizontal plane, degrees, not less than
±60
7 Hook arm sphere size, mm 47
8 Protective mean type Safety chain (rope)
1)
9 Connection point of a protective mean on the
tractor
Holes in tow hitch bracket
___________________________________________________________________________________________________________
1)
Implement accessory.
