Belarus 892 - Front Wheels Track Formation of the Tractors Equipped with FDA with Spur Planetary Wheel Gear Groups; Delivery Condition

892-0000010B OM
189
End of Table 4.2.6
Wheel mounting dia-
gram
Plate offset
X, mm
Tractor track К, mm (tyre 13.6-20) (when HSC cylinder is
attached to holes 1, 2, 3
(
fi
g
ure 4.2.7
))
hole 1 hole 2 hole 3
-80
1710
(Dimension
А=270)
1820
(Dimension
А=325)
1930
(Dimension А
=380)
_
_________________________________________________________________________________________
1)
Delivery condition
4.2.11.3 Front wheels track formation of the tractors equipped with FDA with spur
planetary wheel gear groups
The front wheel track is adjusted stepwise both by displacing the wheels from one
sideboard to the other, and by changing a position of the wheel disk relative to the rim.
The front wheel track may have the following dimensions, mm: 1415, 1515, 1585,
1685, 1735, 1835, 1900, 2000 (for short beam), and 1535, 1635, 1705, 1805, 1855, 1955,
2020, 2120 (for long beam).
Installation diagrams and track dimensions for tires 360/70R24 (basic configuration
for BELARUS-892.2 tractor with FDA 822-2300020-02/04) are given in Table 4.2.7.

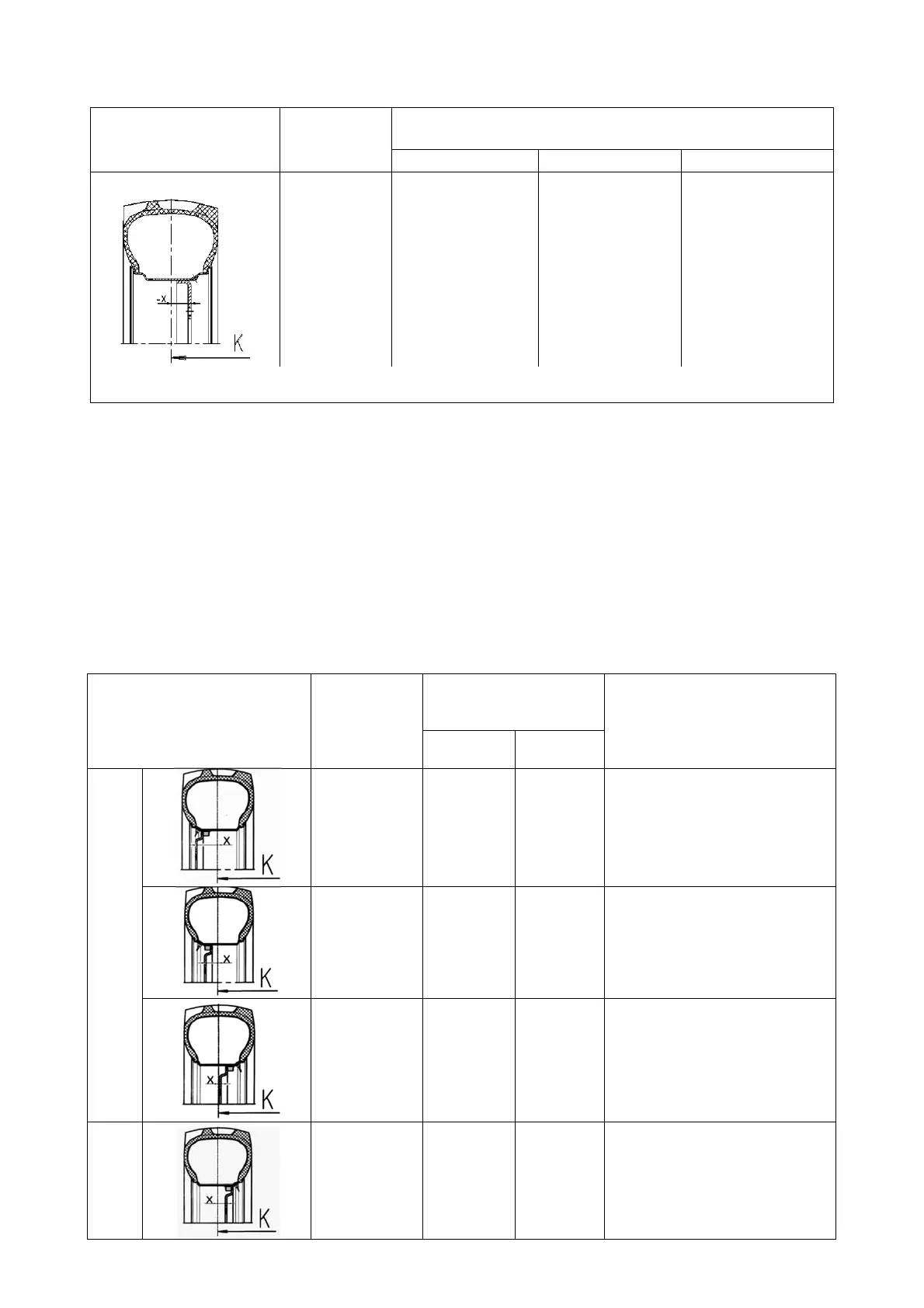

Table 4.2.7 – Front wheel track adjustment for tractor with mounted FDA 822-2300020-
02/04
Variants of mounting the
disk and the rim
Disk offset Х,
mm
Tractor track
К, mm
(
tire 360/70R24
)
Description of mounting
method
Short
beam
Long
beam
Standard disk mounting with rim displace-
ment
+140 1415 1535
Main position. The inner
surface of the plate mates
with the gear group flange,
and the disk is located from
the outer side of the wheel
support
+90 1515 1635
Delivery condition.
The rim is displaced relat-
ing to the plate. The inner
surface of the support ma-
tes with the plate.
-18 1735 1855
The rim is turned by 180°.
The plate mates with the
support inner surface.
-68 1835 1955
The rim is turned by 180°.
The plate mates with the
support outer surface.
