892-0000010B OM
58

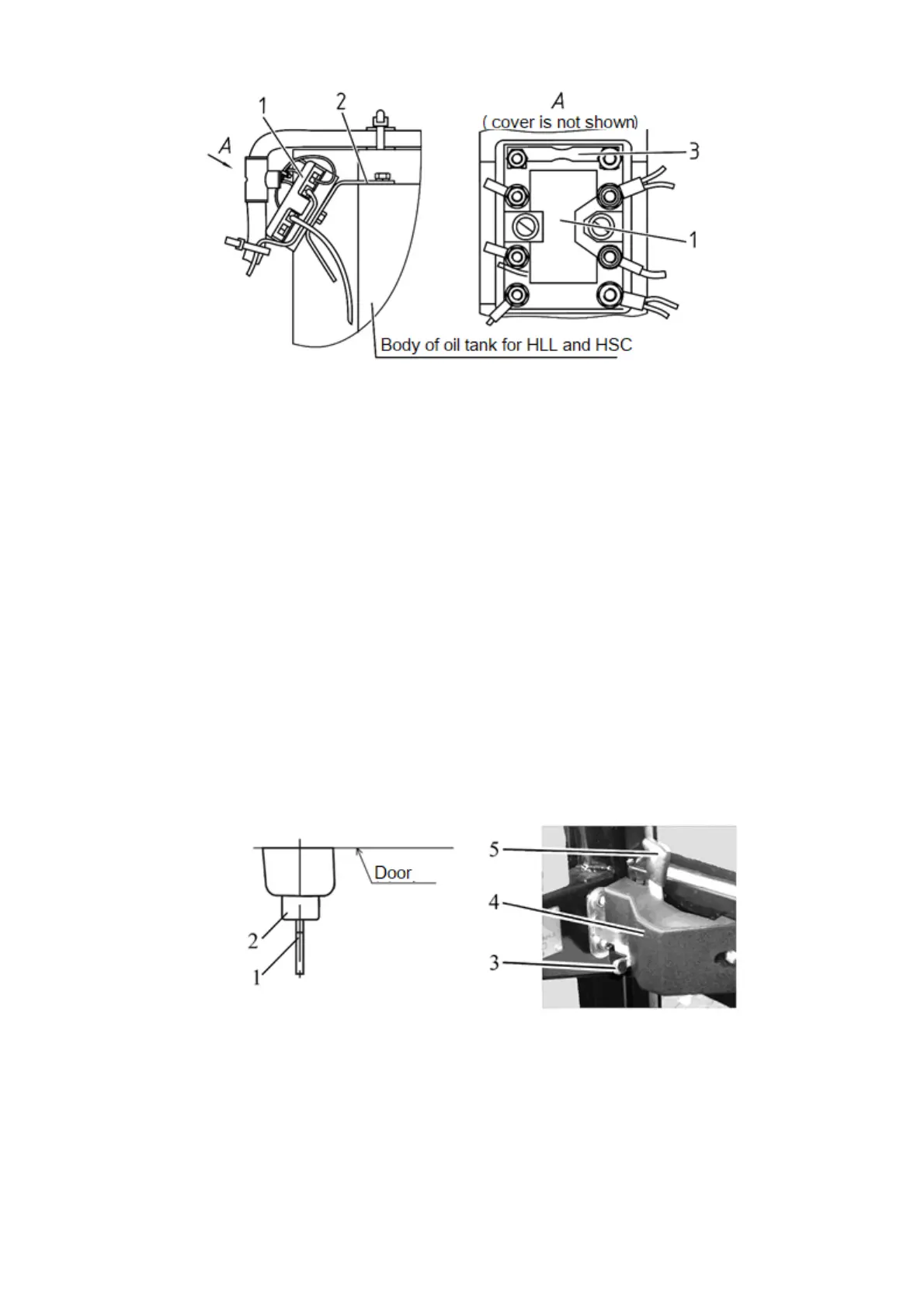

1 – fuse box, 2 – bracket; 3 – fuse rated 60А.
Figure 2.17.5 – Fuse box assembly on the body of the oil tank for HLL and HSC
2.18 Cab locks and handles
2.18.1 Cabin door locks
The left and right doors of the tractor cabin are locked by locks 4 (Figure 2.18.1) from
inside. Lever 5 is used to open the left and right cab doors from inside. As you move lever
5 back, the door is unlocked. The right and left door locks can be blocked from inside the
cab. In order to block the door lock from inside the cabin, it is necessary to move grip 3 to
the highest position. To unblock, move grip 3 to the lowest position, respectively.
With locks 4 unblocked, the left door can be opened from outside by pushing button
2 of the handle.
The left cabin door can be locked and unlocked from outside. To lock it from outside,
you should do the following:
- insert key 1 into the hole of the cylinder mechanism, which is located in button 2;
- without pushing button 2, turn the key to the “locked” position.
To unlock the left door outside the cabin, it is necessary to insert key 1 into the hole
of the cylinder mechanism, which is located in button 2 and, without pushing button 2, turn
the key to the “unlocked” position, then push button 2.
1 – key; 2 – button; 3 – grip, 4 – lock; 5 – lever.
Figure 2.18.1 – Cab door lock
2.18.2 Opening side window
To open side window 1 (Figure 2.18.2), it is necessary to lift handle 2 up and push it
away from you until side window 1 is fixed in the open position.
To close side window 1, it is necessary to lift handle 2 up and pull it towards you until
side window 1 is fixed in the closed position.
