Belarus 892 - Combined Unit TSU-1 M-02 (Combined Unit with Pendulum in Operating Position and Hydraulic Hook in Additional Position); Tow Hitch TSU-1М (Pendulum); Lowering Link

892-0000010B OM
141
3.13.3 Combined unit TSU-1M-02 (combined unit with pendulum in operating position
and hydraulic hook in additional position).

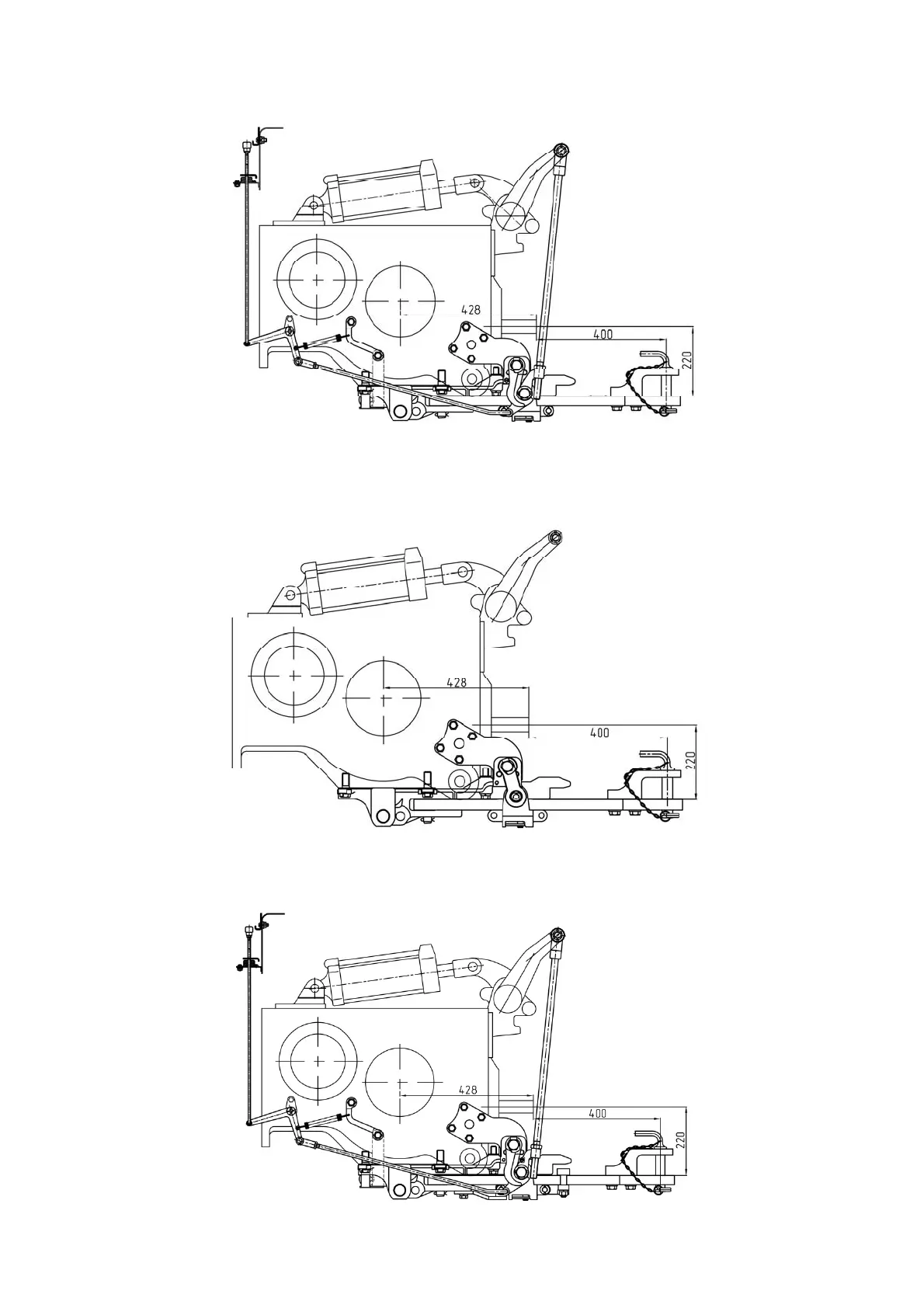

Figure 3.13.2 – Installation scheme of TSU-1М-02 (with pendulum in operating position
and hydraulic hook in additional position)
3.13.4 Tow hitch TSU-1М (pendulum)
Figure 3.13.3 – Installation scheme of TSU-1М (pendulum)
3.13.5 Lowering link
Figure 3.13.4 – Installation scheme of lowering link
