892-0000010B OM
123

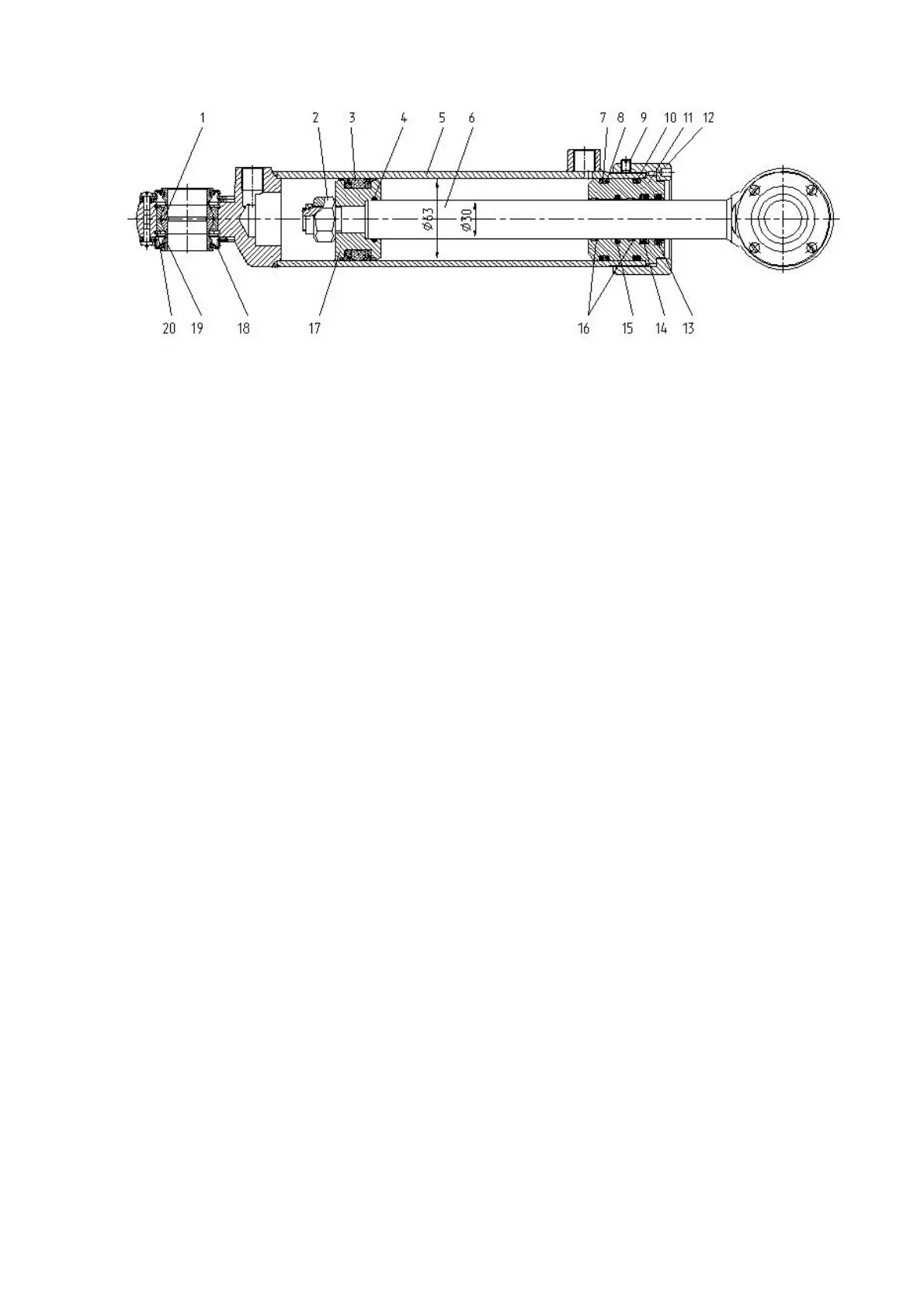

1 - articulated spherical bearing; 2 - piston nut; 3 - piston seal; 4, 7, 10 - sealing rings;
5 - body; 6 - rod; 8 - protective ring; 9 - locking screw; 11 - front cover; 12 - captive nut; 13 -
wiper; 14 – seal of rod T20; 15 – seal of rod OMS-MR; 16 - guide rings; 17 - piston; 18 -
protective boot (for cylinder Ts63); 19 - bushing (for cylinder Ts63); 20 - retaining ring.
Figure 3.10.4 – Steering hydraulic cylinder
3.10.4 HSC hydraulic system alarm
In the drain hydraulic line "T" (Figure 3.10.1), sensor 6 of emergency oil pressure in
the HSC hydraulic system is installed at the outlet of the dosing pump. When the oil pressure
in the drain hydraulic line drops below 0.08 MPa (due to the lack of oil flow because of
insufficient oil level in the oil tank, failure of the feed pump or breakage of hoses), the sensor
is triggered, and a pilot lamp of emergency oil pressure in the HSC hydraulic system (red)
lights up in the pilot lamps unit.
ATTENTION: WHEN THE PILOT LAMP IS ON, IMMEDIATELY STOP THE ENGINE
AND ELIMINATE THE CAUSE THAT LOWERS OIL PRESSURE TO AVOID AN ACCI-
DENT OR FAILURE OF THE HYDRAULIC SYSTEM PARTS.
