Belarus 892 - Adjustment of the FDA Wheel Gear Group Turning Angle

892-0000010B OM
166
3.16.2.3 Adjustment of the FDA wheel gear group turning angle
The maximum turning angle of wheel gear group housing 1 (Figure 3.16.7) from the
position corresponding to the straightline movement is 40
0
. Adjust with screw 3. Lock screw
with locknut 2.

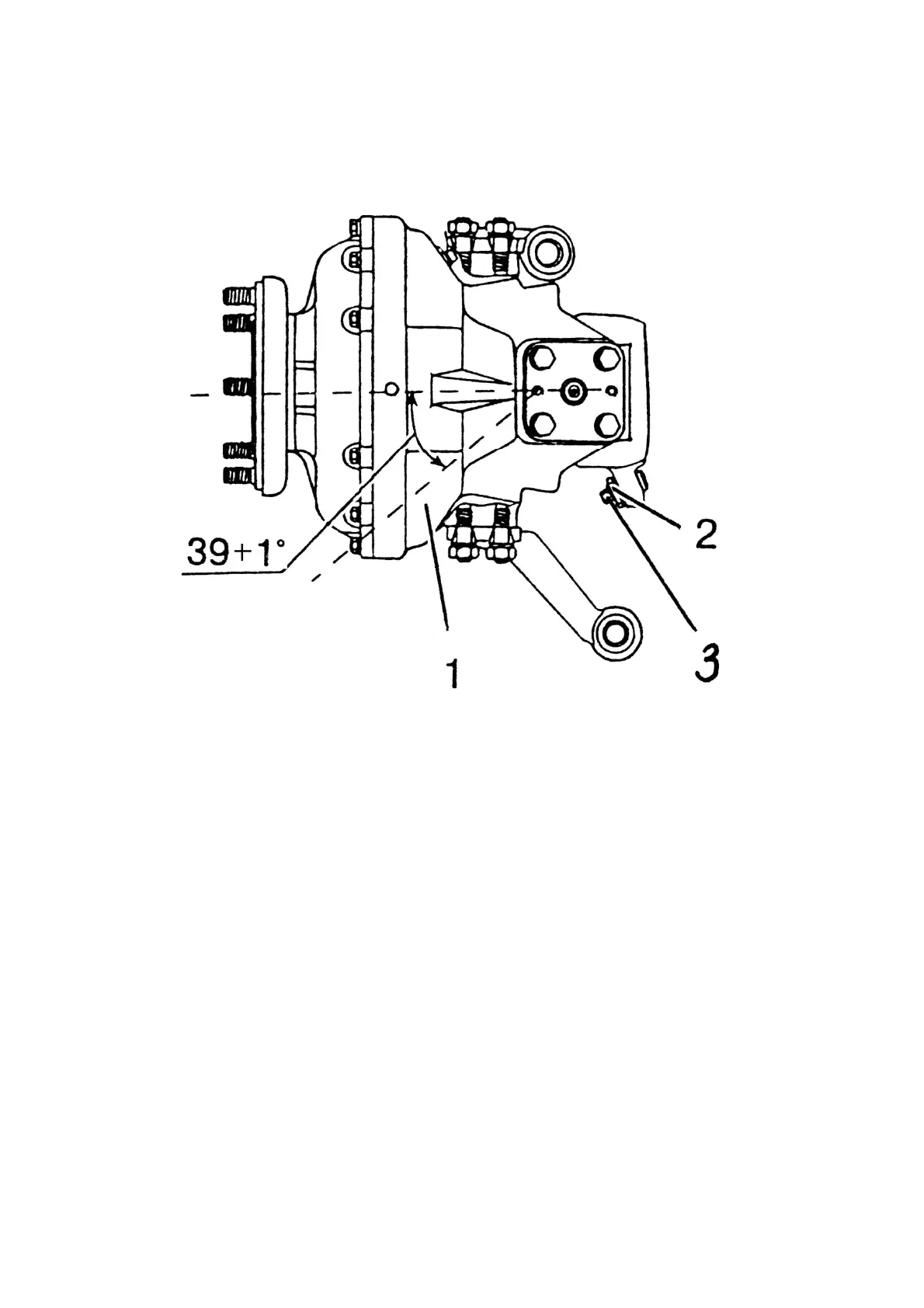

1 – wheel gear group of FDA final drive; 2 – locknut; 3 – adjusting screw
Figure 3.16.7 Adjustment of the FDA wheel gear group turning angle
