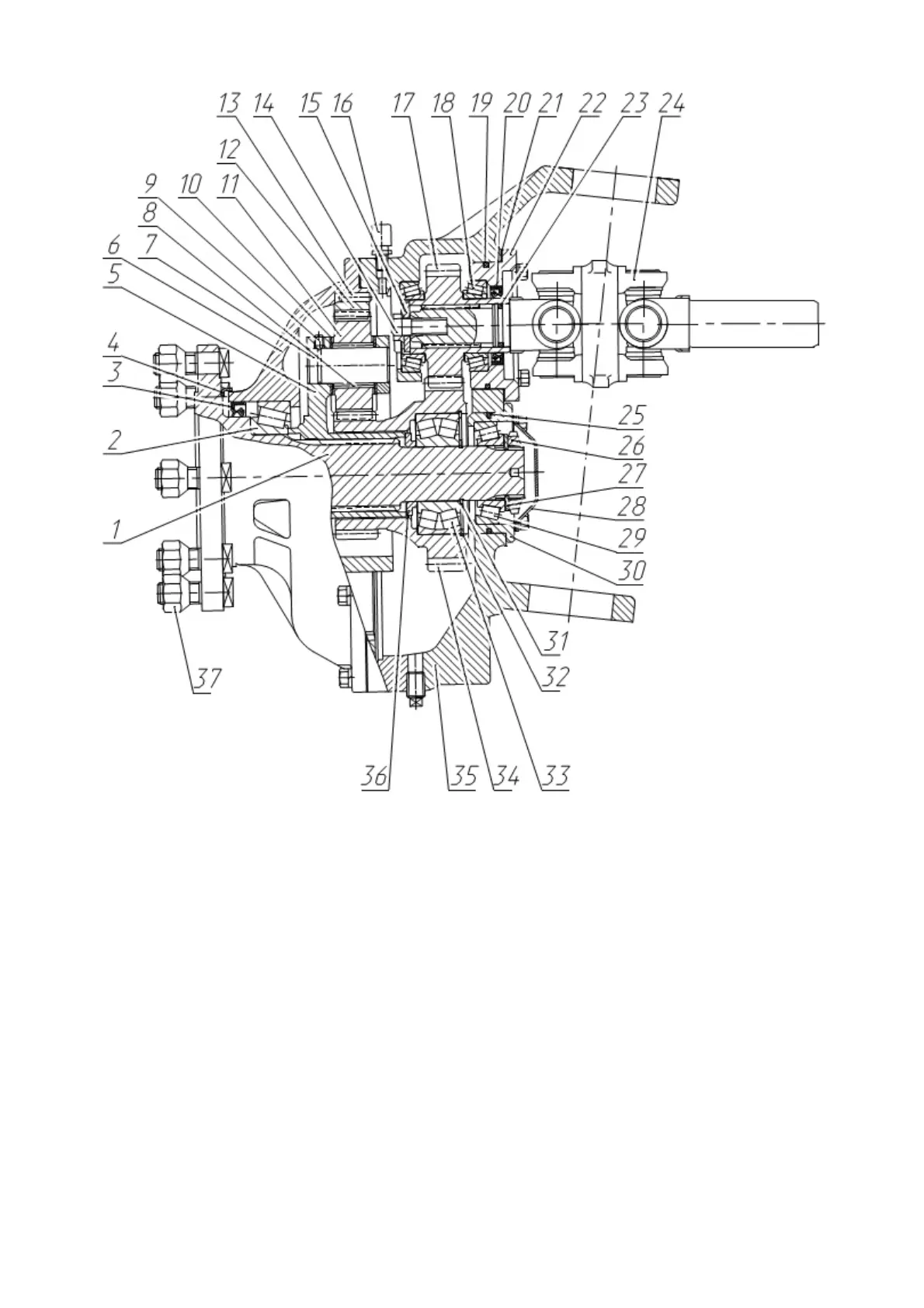

1 – wheel flange; 2, 18, 29 – tapered roller bearing; 3, 20 - gasket; 4 – dirt trap; 5
– planet carrier, 6 – wheel gear group cover; 7 – planetary gears shaft; 8 - rollers; 9 - screw; 10
– thrust washer; 11 – planetary gear; 12 – epicyclical gear; 13 - pin; 14 - bolt; 15 - washer; 16 -
breather; 17 – drive gear; 19, 23, 25 – rubber ring; 21 – adjusting shims; 22 – drive gear cage; 24
– universal twin joint; 26 - nut; 27 – washer; 28 - cover; 30 - cup; 31, 32 – lock ring; 33 –
double-row tapered roller bearing; 34 – gear cluster; 35 – wheel gear group casing; 36 -
ring; 37 – wheel nut.
Figure 3.16.5 – Wheel gear group of spur planetary type
