9. Tractor transportation and towing
9.1 Tractor transportation
Tractors are transported by railroad, motor vehicles or under its own power.
Engage the parking break and the first gear of the gearbox for tractor transportation.
Fasten the BELARUS-892/892.2 tractor to the rail platform with four sling ropes.
Fasten one sling rope on each side to a nut located on rear wheel hub by one end,
and to binder bracket by another end. Also fasten one sling rope on each side of the tractor
to the FLL supporting bracket by one rope end and to binder bracket by another end.
During tractor loading/unloading use lifting mechanisms with load-carrying capacity
of at least 5 ton-force.
ATTENTION: AS YOU LIFT THE TRACTOR USING EYE NUTS, THE TRACTOR
MAY MOVE FORWARD OR BACKWARD TO A DISTANCE UP TO 1.5 M!
Tie the steel ropes of BELARUS-892/892.2 tractors down to lifting eye nuts of the
front and rear wheels, as shown in the roping diagram in Figure 9.1.1.
When tying the steel ropes to eye nut 3 (Figure 9.1.1) of the front or rear wheel, place
hauling device 2 around the lifting eye nut body and lock it by inserting stop lock 1 into the
eye of the eye nut.

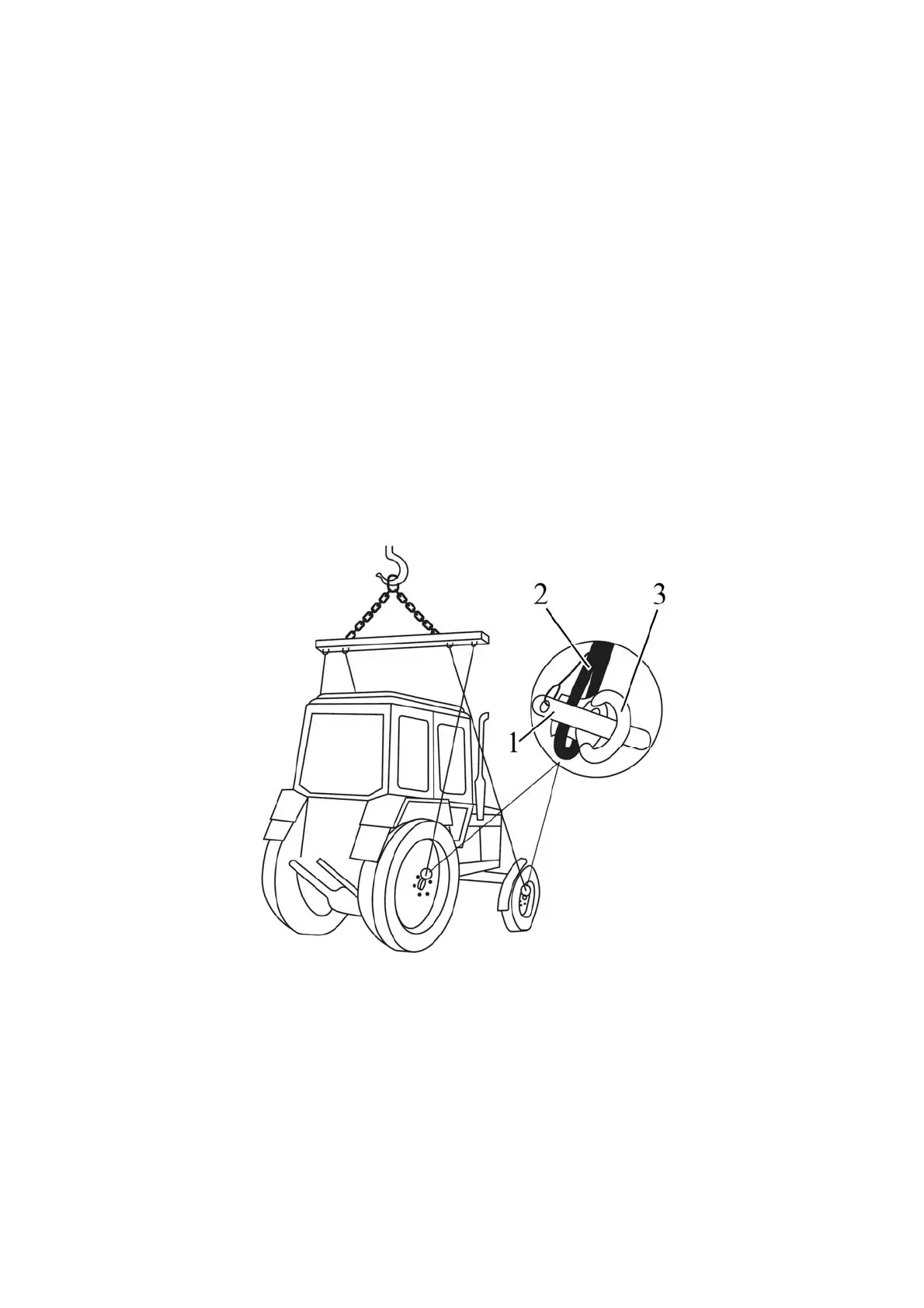

1 – stop lock; 2 – hauling device; 3 – eye nut.
Figure 9.1.1 – Roping diagram for tractors with double-wheel axle
