Belarus 892 - Adjustment of Parking Brake Control

892-0000010B OM
112

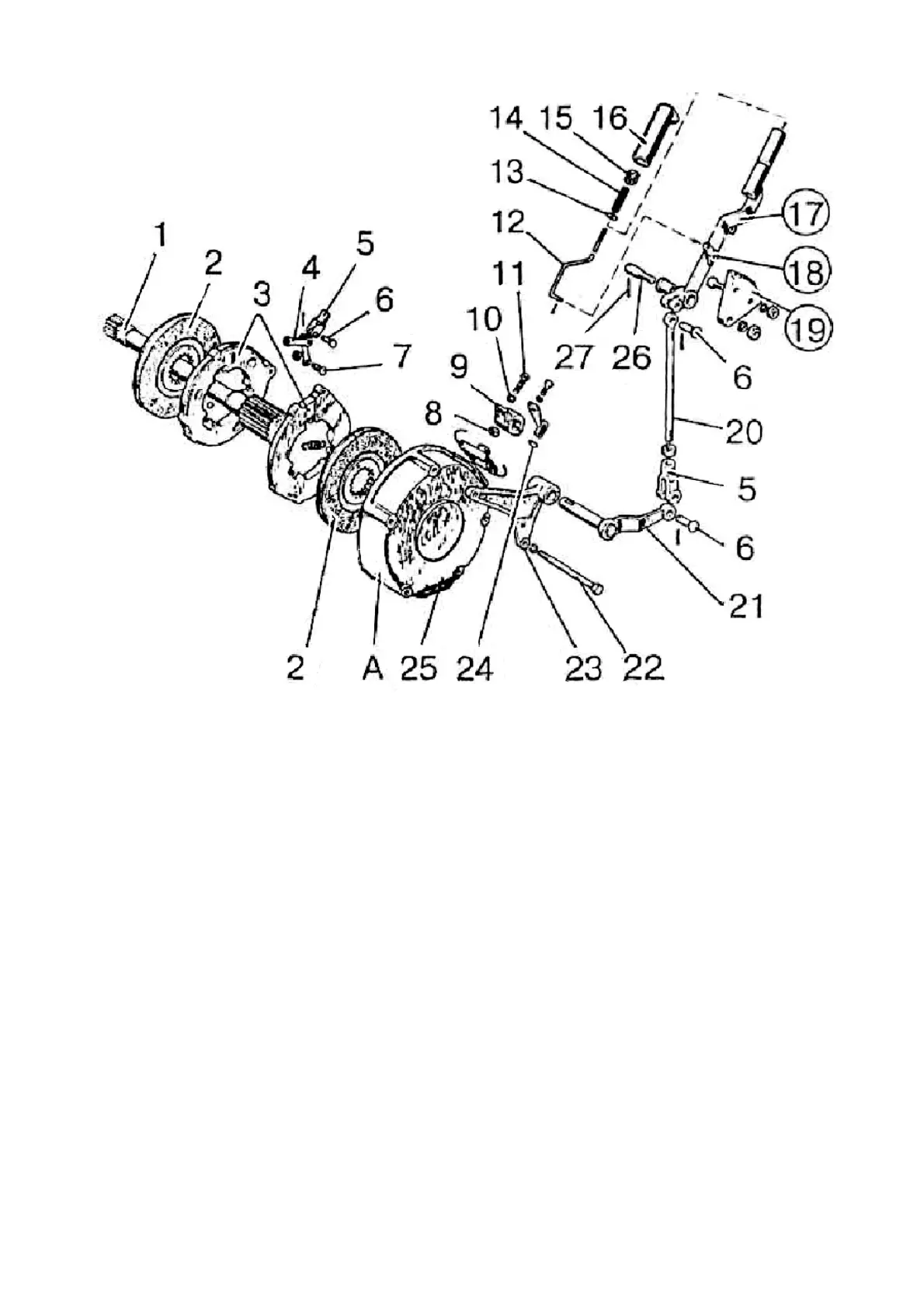

1 - shaft; 2 - brake disks; 3 – pressure disks; 4 - rod; 5 - yoke; 6 - pin; 7 - screw; 8 -
locknut; 9 - lever; 10 - washer; 11 - bolt; 12 - rod; 13 - washer; 14 - spring; 15 - button; 16 -
handle; 17 – parking brake lever; 18 - detent; 19 - sector; 20 - rod; 21 - lever with shaft; 22
- bolt; 23 - bracket; 24 - key; 25 - casing.
Figure 3.7.5 - Parking brake and parking brake control
3.7.4 Adjustment of parking brake control
Checking the effectiveness of the parking brake consists in the fact that the tractor
must hold on a slope of at least 18% when applying force of no more than 400 N to parking
brake control lever 8 (Figure 3.7.6). If this requirement is not met, it is necessary to adjust
the parking brake control.
Before adjusting the parking brake control, place the tractor on a flat horizontal
ground. The engine must be off. Block the wheels from moving in front and behind with
wheel chocks to prevent spontaneous movement of the tractor.
ATTENTION: ADJUSTING THE PARKING BRAKE CONTROL MUST BE PER-
FORMED AFTER ADJUSTING THE SERVICE BRAKE CONTROL!
