3.15 Cab
3.15.1 General information
The complete cabin of the BELARUS-892/892.2 tractors provides comforTable work-
ing conditions, heat and sound insulation, meets the requirements for safety and visibility.
The cabin has the following emergency exits:
- doors - left and right;
- rear window;
- roof.
Natural ventilation of the cabin is carried out through the opening rear and side win-
dows, and with the roof open.
The cabin is equipped with safety tempered glass having a flat shape.
ATTENTION: DURING OPERATION AND REPAIR WORK, AVOID HITTING CABIN
GLASS!
On request, instead of the complete cabin, a canopy frame or canopy base can be
installed on the tractor.
3.15.2 Installation and dismantling of the complete cabin
The cabin is installed onto the tractor frame through vibration isolators 4 (Figure
3.15.1).
When dismantling the cabin, you should:
- remove cotter pins 1;
- unscrew nuts 2;
- remove bolts 3;
- remove the cabin with a beam crane having a lifting capacity of at least 1000 kg,
using two eyelets 1 (Figure 3.15.2), welded to upper longitudinal beams 2 of the cabin, to fix
the chains (cables).

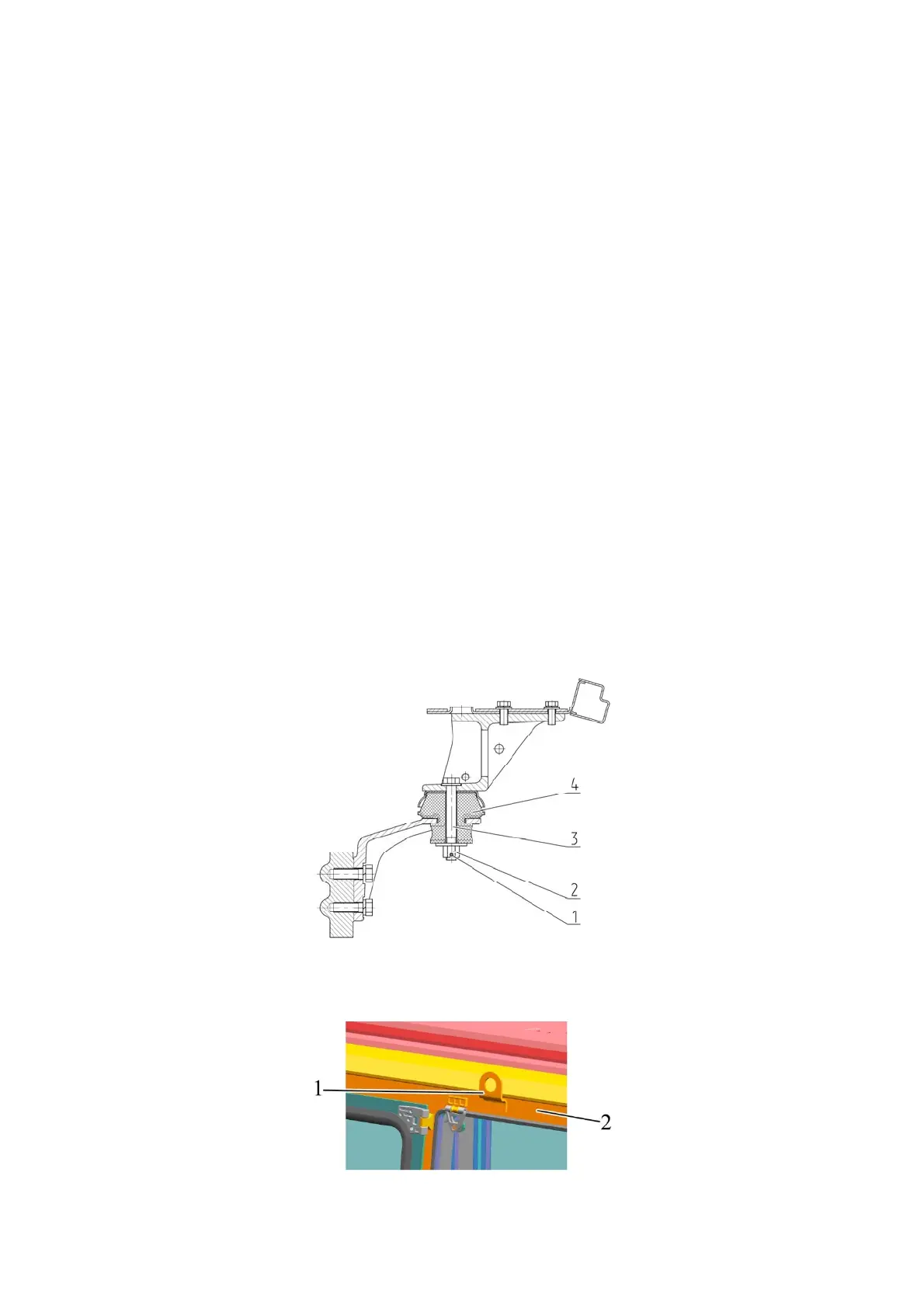

1 – cotter pin; 2 – nut, 3 – bolt; 4 – vibration insulator.
Figure 3.15.1 – Mounting of cabin onto vibration insulators
1 – eyelet; 2 – upper longitudinal beam.
Figure 3.15.2 – Cab slinging
