2.17 Electrical fuses
2.17.1 General information.
Electrical fuses are intended to protect against overloads and short circuits in electrical lines.
WARNING: TO AVOID BURNING OF THE TRACTOR ELECTRICAL WIRING,
NEVER USE FUSES OF A HIGHER CURRENT RATE THAN SPECIFIED IN THIS SEC-
TION. IF THE FUSE BLOWS FREQUENTLY, FIND THE CAUSE AND REPAIR!
2.17.2 Fuses of dashboard with a castable panel
In the dashboard with a castable panel, three fuse boxes for electrical circuits are

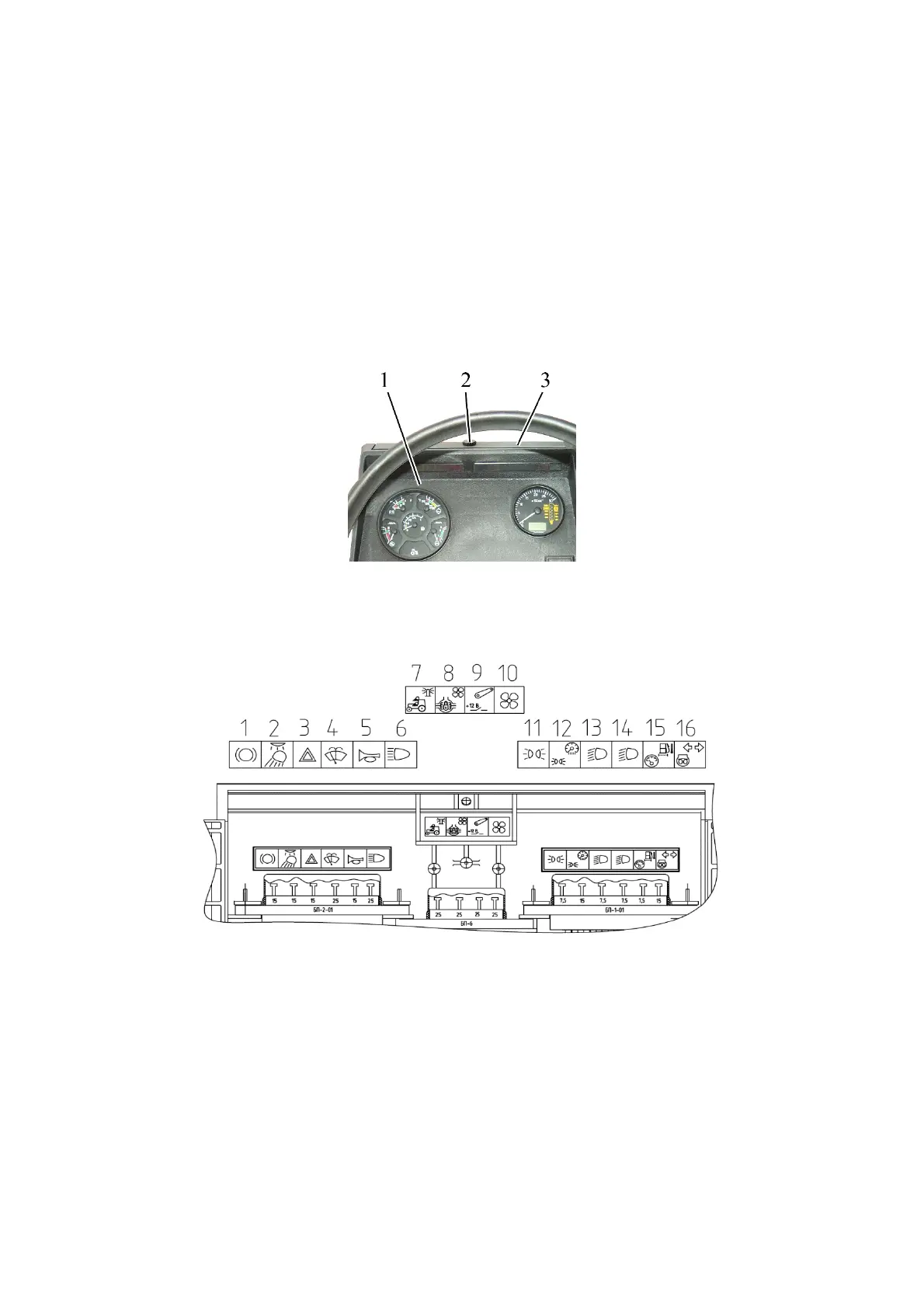

installed. To access the fuses located in dashboard 1, it is necessary to undo screw 2 (Figure
2.17.1) and fold down panel 3.
1 – dashboard; 2 – screw; 3 – panel.
Figure 2.17.1 – Access to fuses located in the dashboard with a castable panel
The fuses located in the dashboard with a castable panel are shown in Figure 2.17.2.
1 - fuse for stoplights, terminal (6) and terminal (8) of the trailer socket 15 A;
2 - fuse for the cab ceiling light, rear service lights, road train sign lights (if any) with
a rating of 15 A;
3 - fuse for warning light alarm with a rating of 15 A;
4 - fuse for front and rear window wipers, front window washer with a rating of 25 A;
5 - fuse for horn with a rating of 15 A;
6 – fuse for high beam of road headlights, signal lamp of high beam of headlights
with a rating of 25 A;
