892-0000010B OM
35
ATTENTION: SHIFT BETWEEN GEARS, RANGES OF THE GEARBOX AND PASSES
OF THE INCREASING GEAR ONLY WITH THE TRACTOR STOPPED AND COUPLING
CLUTCH DISENGAGED!
ATTENTION: USING REAR GEAR R IS ONLY PERMITTED WHEN MANOEUVRING
(FOR SHORT TIME, WITHOUT LOAD). USING REAR GEAR R IN TRACTION MODE IS NOT
ALLOWED!
ATTENTION: ENGAGING 9
TH
(FORWARD) GEAR OF THE GEARBOX IS PERMITTED
ONLY WITH THE 2
ND
RANGE OF THE GEARBOX ENGAGED!

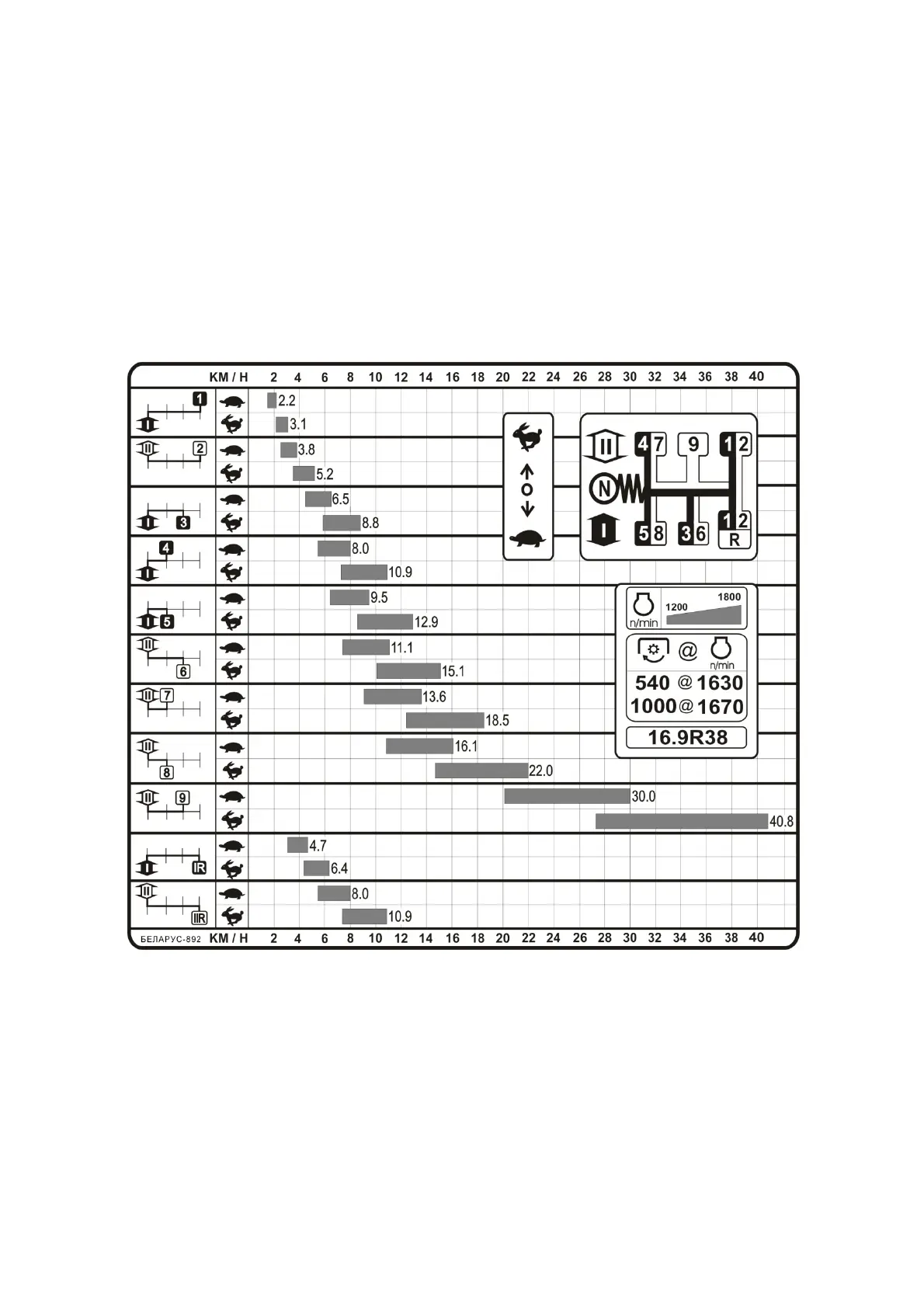

The velocity diagram of the BELARUS-892 tractor with tires of basic configuration,
equipped with a increasing gear is mounted on the right glass of the cabin and is shown in
Figure 2.13.2.
Figure 2.13.2 Velocity diagram of the BELARUS-892 tractor with 16.9 R38 rear tires
The velocity diagram of the BELARUS-892.2 tractor with tires of basic configuration,
equipped with increasing gear is mounted on the right glass of the cabin and is shown in
Figure 2.13.3.
