ATTENTION: WHEN HEATING AND VENTILATING SYSTEM IS OPERATED IN HEAT-
ING MODE CAB VENTILATION IS PERFORMED SIMULTANEOUSLY. TO OPERATE HEAT-
ING AND VENTILATING SYSTEM IN VENTILATING ONLY (DURING WARM SEASON) THE
HEATER’S VALVE SHOULD BE CLOSED!
You tractor can be equipped with conditioning system instead of heating and ventilating system.

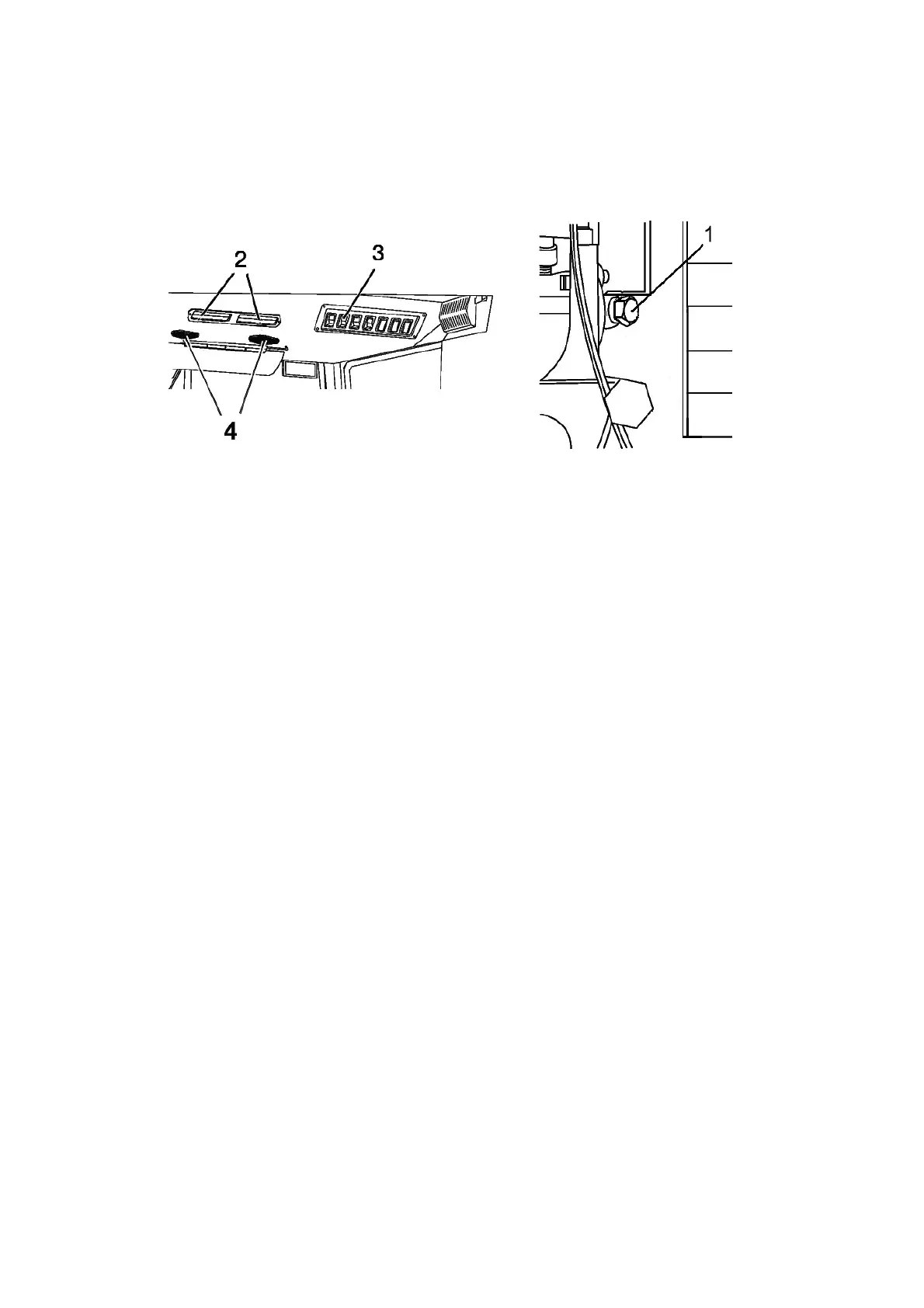

1 – blind plug; 2 – recirculating screen; 3 – cab fan switch; 4 – deflector
Figure 2.4.2 – Cab fan controls
To vent the cab proceed as follows:
- turn on the fan using switch 3 and direct air flow using deflectors 4;
- by opening recirculation shutters 2 you can control the amount of fresh air, coming
into the cab.
