892-0000010B OM
50

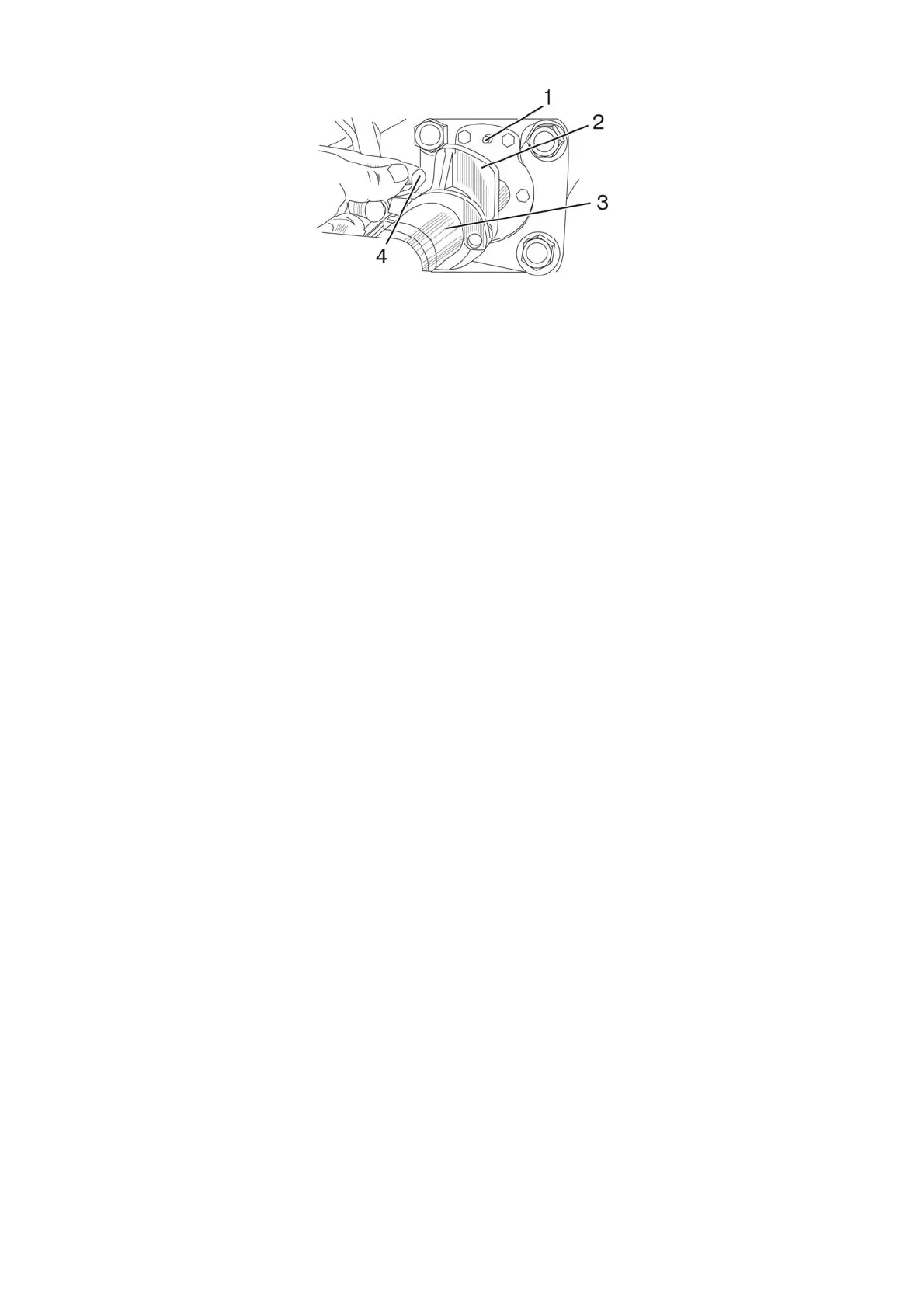

1 – hydromechanical valve stem; 2 – adjustable stop; 3 – hydraulic cylinder; 4 – wing
nut.
Figure 2.15.8 – Adjustable implement lifting limiter
ATTENTION: TO AVOID DAMAGE TO THE CAB BY THE PARTS OF THE LIFTED
IMPLEMENT, ADJUST THE LENGTH OF THE LEFT AND RIGHT LIFTING RODS IN AC-
CORDANCE WITH THE INSTRUCTIONS OF CLAUSE 3.12.2.2 "LIFTING ROD"!
