Configuring Device Security
Defining Access Control
Cisco Small Business SFE/SGE Managed Switches Administration Guide 94
4
• 802.1p — Displays the packet tag value.
• 802.1p Mask — Displays the wildcard bits to be applied to the CoS.
• EtherType — Displays the Ethernet type of the packet.
• Action — Indicates the ACL forwarding action. For example, the port can be
shut down, a trap can be sent to the network administrator, or packet is
assigned rate limiting restrictions for forwarding. Possible field values are:
- Permit — Forwards packets which meet the ACL criteria.
- Deny — Drops packets which meet the ACL criteria.
- Shutdown — Drops packet that meet the ACL criteria, and disables the
port to which the packet was addressed. Ports are reactivated from the
Edit Interface Settings Page.
STEP 2 To remove an ACL, click the Delete ACL button.
STEP 3 To remove an ACE rule, click the rule’s checkbox and click the Delete Rule button.
STEP 4 Click the Add ACL button. The Add MAC Based ACL Page opens:

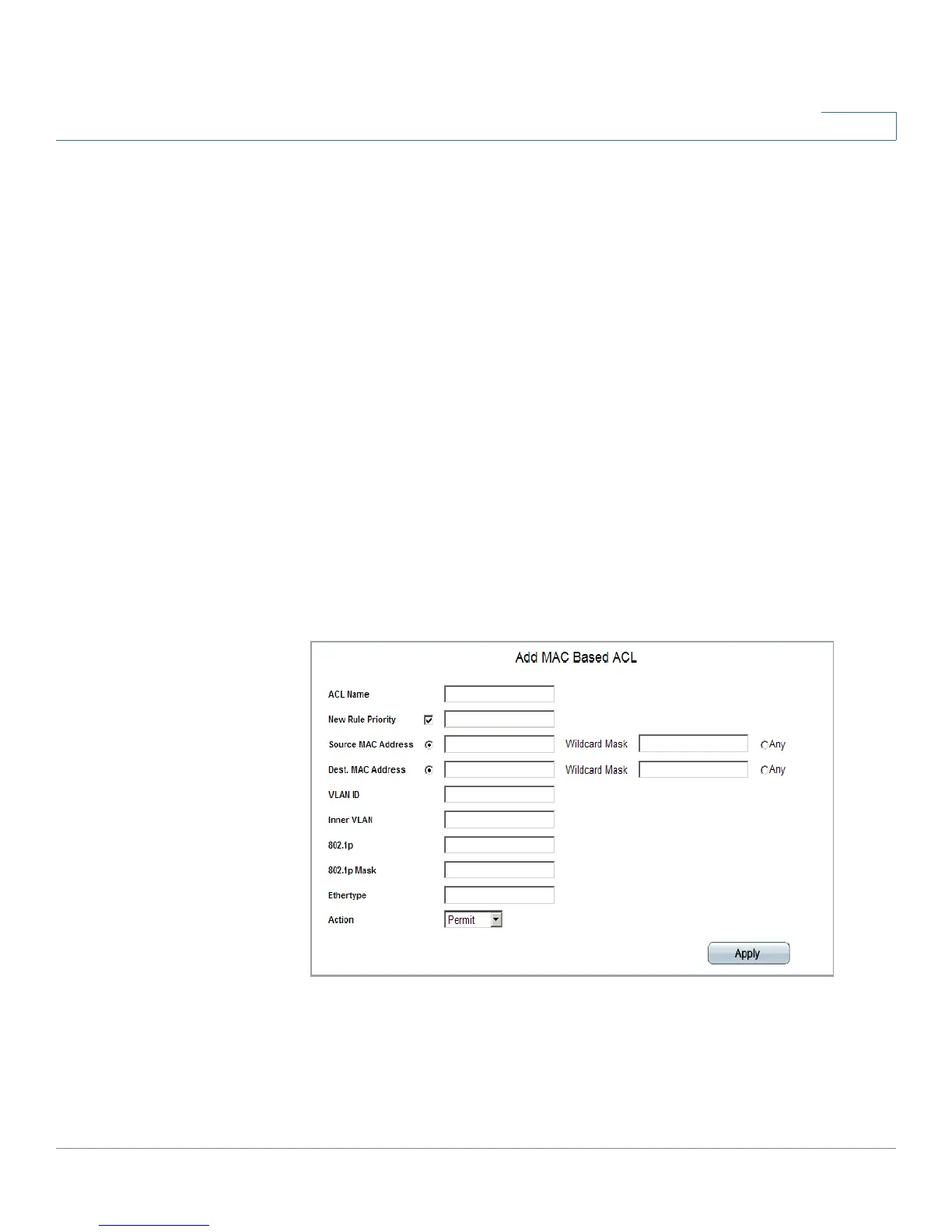

Add MAC Based ACL Page
The
Add MAC Based ACL Page contains the following fields:
• ACL Name — Displays the user-defined MAC based ACLs.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
