Aggregating Ports
Defining LAG Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 396
18
STEP 4 Click Apply. The LAG membership is defined, and the device is updated.
Defining LAG Settings
Link Aggregated Groups optimize port usage by linking a group of ports together
to form a single aggregated group. Link aggregated groups multiply the
bandwidth between the devices, increase port flexibility, and provide link
redundancy.
The
LAG Settings Page
contains fields for configuring parameters for configured
LAGs. The device supports up to eight ports per LAG, and eight LAGs per system.
The
LAG Settings Page
varies, depending on whether the device is in Layer 2 or
Layer 3 mode (definable on the device through the CLI interface).
Layer 2 devices support Private VLAN Edge, which can be enabled for specific
LAGs on the
Edit LAG Settings Page
.
STEP 1 Click Bridging > Port Management > LAG Settings. The
LAG Settings Page
opens:

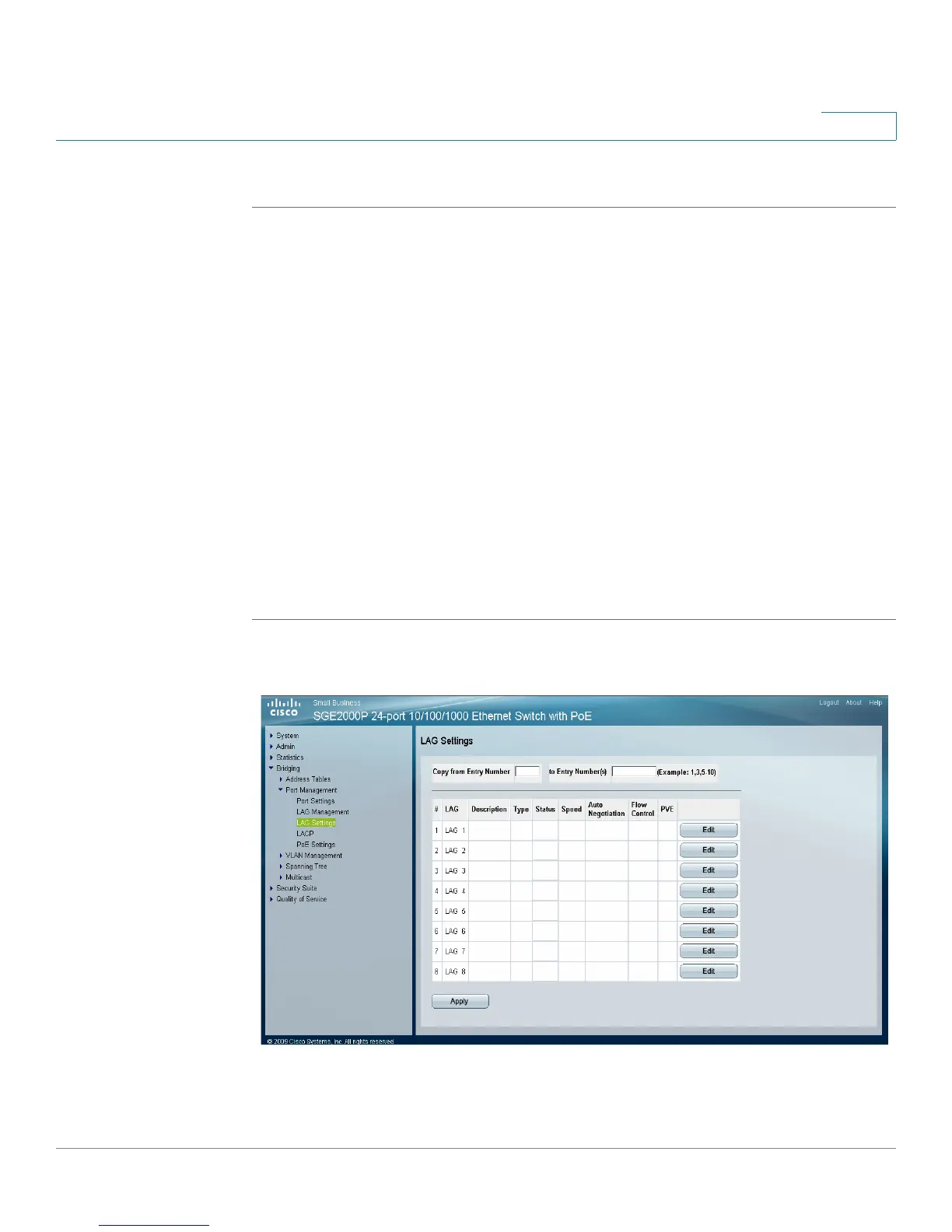

LAG Settings Page
The
LAG Settings Page
contains the following fields:
