Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Managing System Logs
Viewing the Flash Logs
Cisco Small Business SFE/SGE Managed Switches Administration Guide 354
16

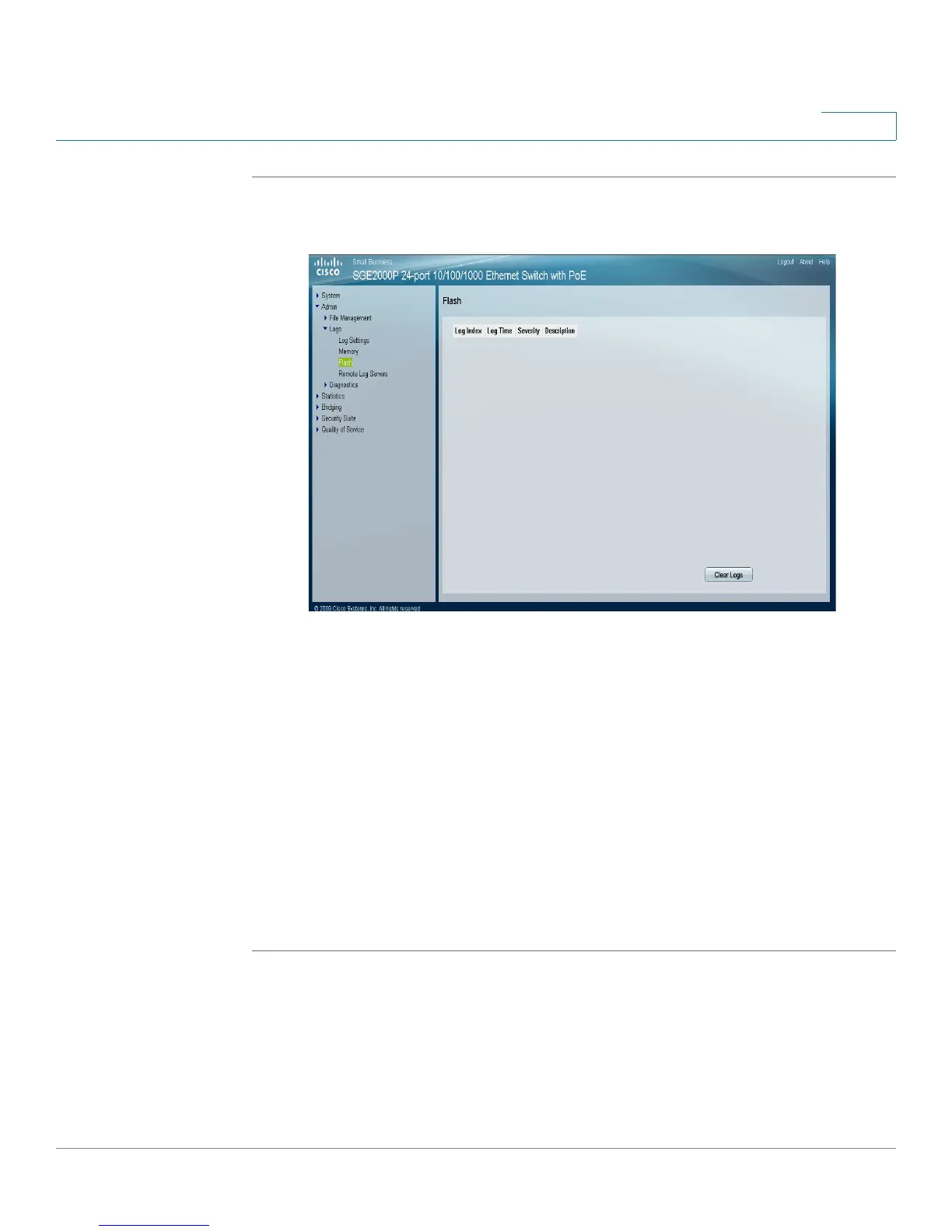

STEP 1 Click Admin > Logs > Flash. The Flash Page opens:
Flash Page
The
Flash Page contains the following fields:
• Log Index — Displays the log entry number.
• Log Time — Displays the time at which the log entry was generated.
• Severity — Displays the event severity.
• Description — Displays the log message text.
Clearing Flash Logs
Flash Logs can be cleared from the Flash Page . To clear the Flash Page :
STEP 2 Click Clear Logs. The message logs are cleared.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
