Managing Device Information
Viewing Device Health
Cisco Small Business SFE/SGE Managed Switches Administration Guide 25
2
STEP 3 Click Apply. Stack management is defined, and the device is updated.
Viewing Device Health
The Health Page displays physical device information, including information about
the device’s power and ventilation sources.

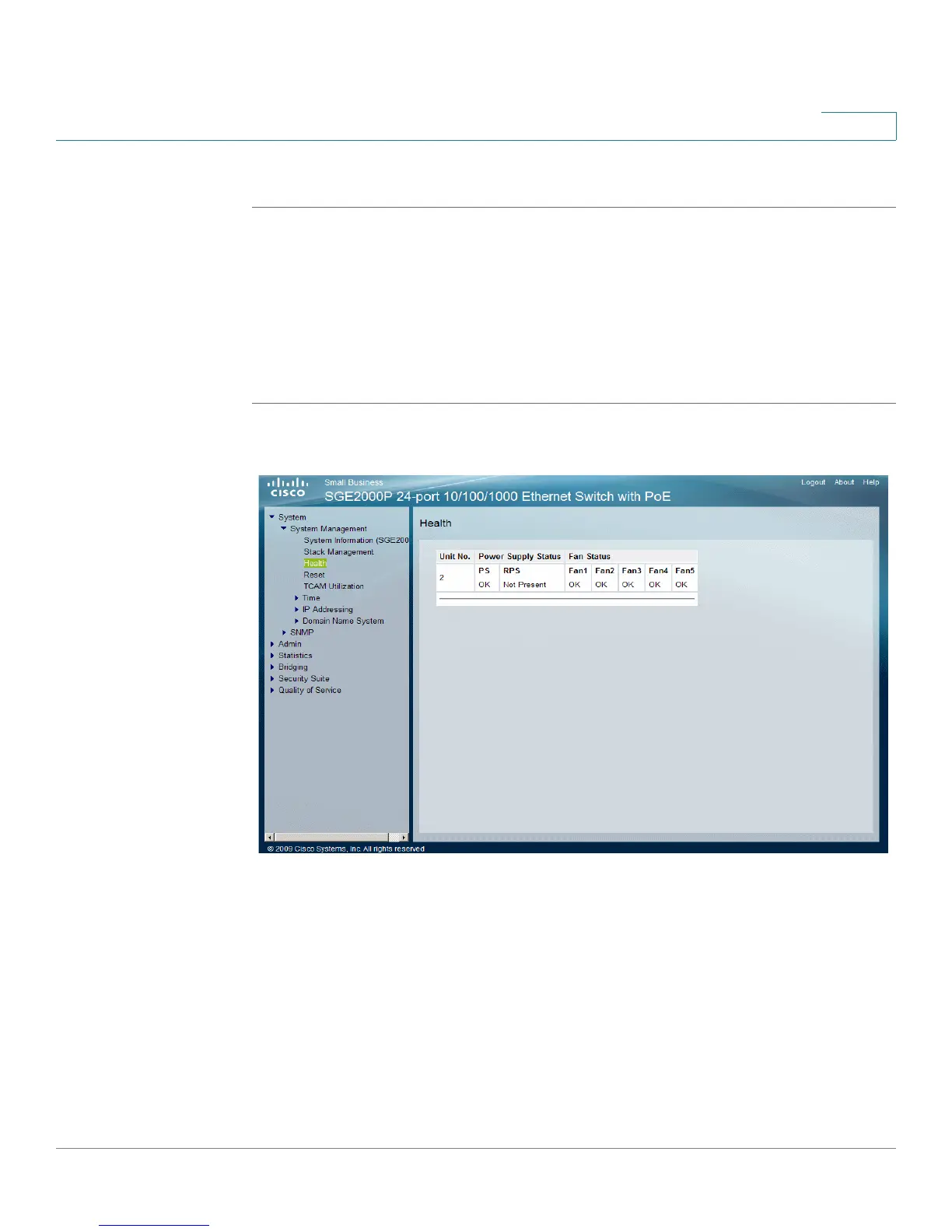

STEP 1 Click System > System Management > Health. The Health Page opens:
Health Page
The
Health Page contains the following fields:
• Unit No. — Indicates the number of stack member for which the device
information is displayed.
• Power Supply Status — Displays the power supply status. The internal power
supply is displayed as PS in the interface, while the redundant power supply is
displayed as RPS. If the status is displayed as
Not Present, this indicates that a
redundant power supply is not connected (for RPS only).
• Fan Status — Displays the fan status. The device has up to five fans. Each fan is
denoted as fan plus the fan number. The possible field values are:

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
