Managing System Files
Active Image
Cisco Small Business SFE/SGE Managed Switches Administration Guide 335
13
Active Image
The Active Image Page allows network managers to select the Image files. For
stackable device, active image is indicated/selected per each stack unit. Images
are activated only after the device is reset.

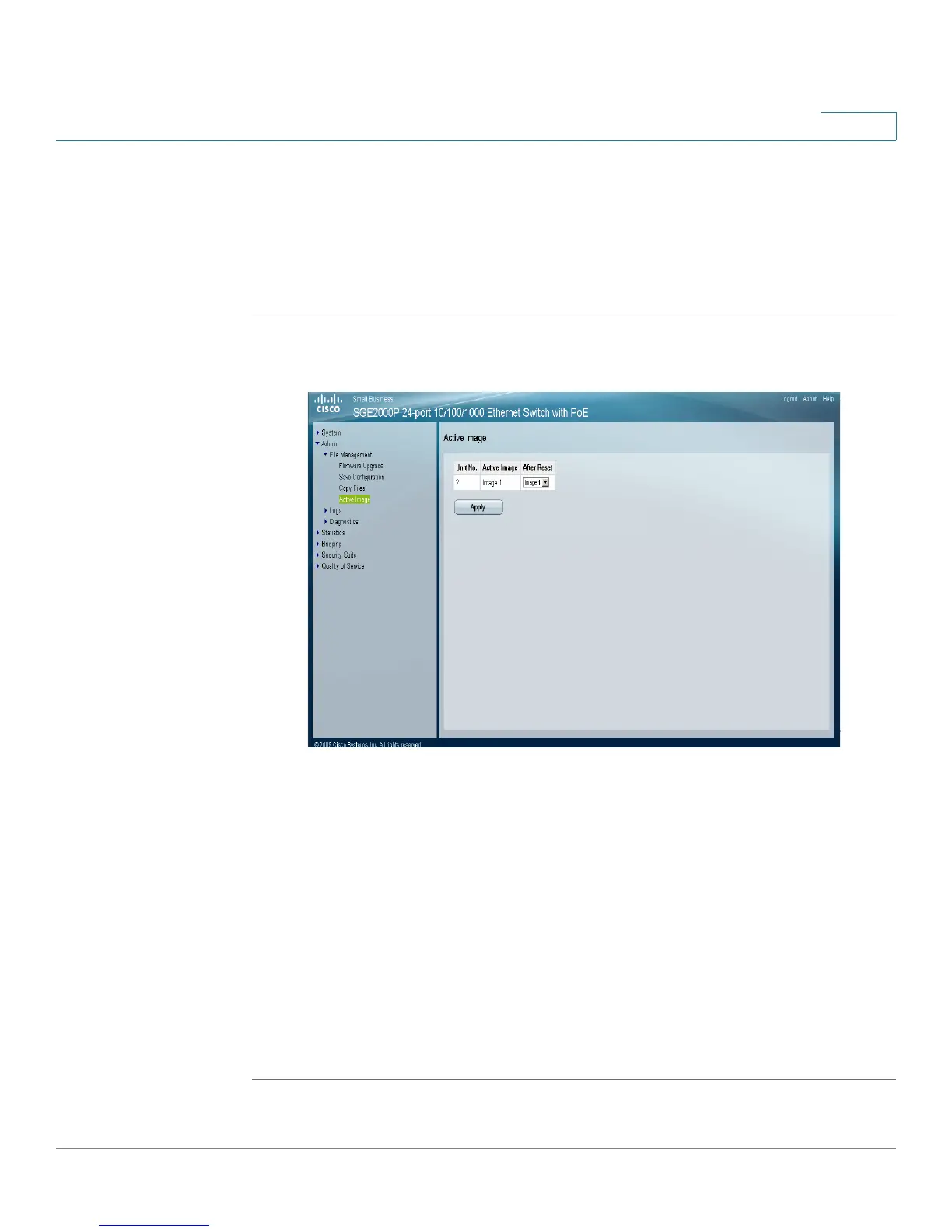

STEP 1 Click Admin > File Management > Active Image. The Active Image Page opens:
Active Image Page
The
Active Image Page contains the following fields:
• Unit No. — Indicates the unit number for which the Image file is selected.
• Active Image — Indicates the Image file which is currently active on the device.
• After Reset — The Image file which is active after the device is reset. The
possible field values are:
- Image 1 — Activates Image file 1 after the device is reset.
- Image 2 — Activates Image file 2 after the device is reset.
STEP 2 Define the relevant fields.
STEP 3 Click Apply. The device is updated.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
