Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Viewing Statistics
Configuring RMON History
Cisco Small Business SFE/SGE Managed Switches Administration Guide 381
17

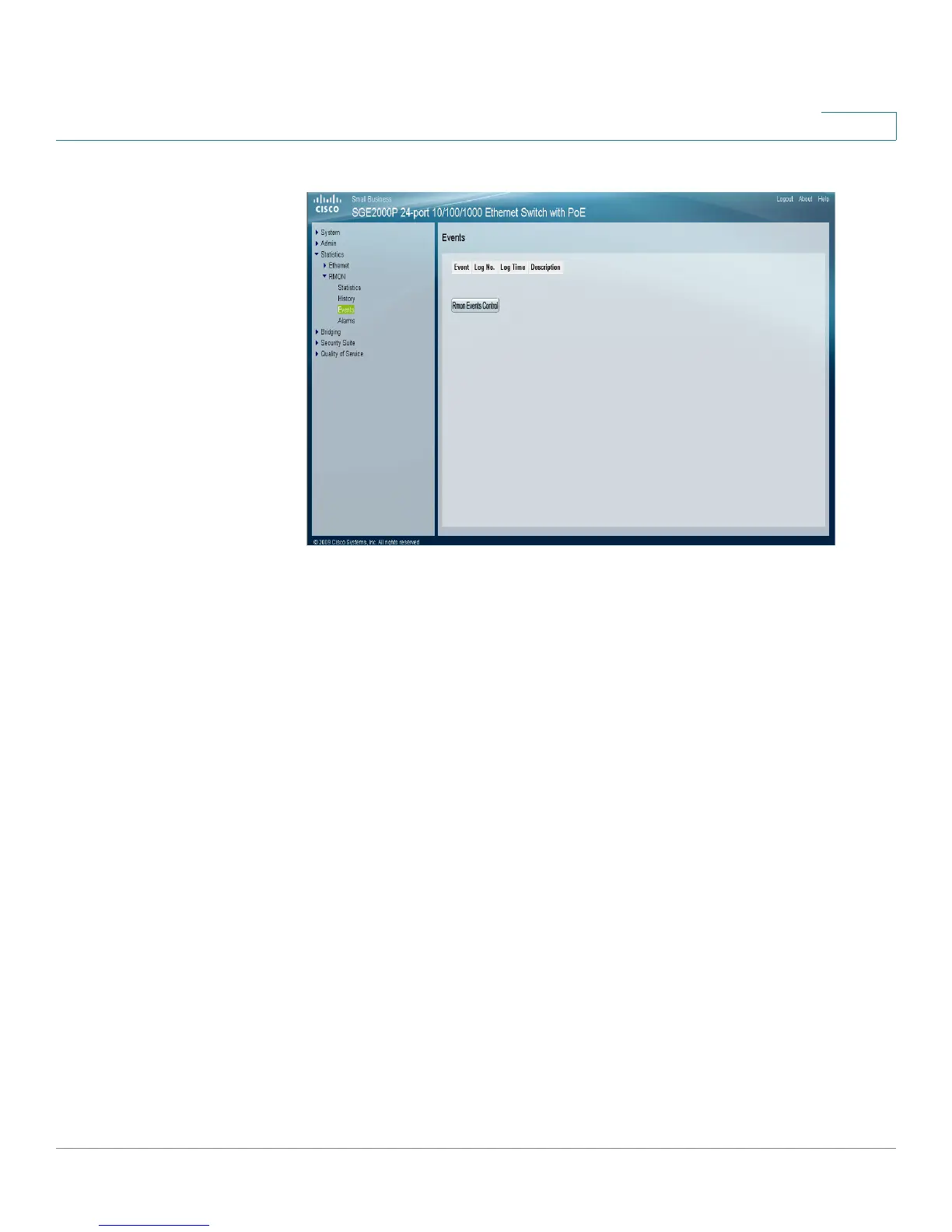

RMON Events Log Page
The
RMON Events Log Page contains the following fields:
• Event — Displays the RMON Events Log entry number.
• Log No.— Displays the log number.
• Log Time — Displays the time when the log entry was entered.
• Description — Displays the log entry description.
To return to the
RMON Events Page , click the RMON Events Control button.
Defining RMON Alarms
The RMON Alarms Page contains fields for setting network alarms. Network
alarms occur when a network problem, or event, is detected. Rising and falling
thresholds generate events.
To s e t R M O N a l a r m s :

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
