Configuring Spanning Tree
Defining Multiple Spanning Tree
Cisco Small Business SFE/SGE Managed Switches Administration Guide 266
10
Defining MSTP Instance Settings
MSTP maps VLANs into STP instances. Packets assigned to various VLANs are
transmitted along different paths within
Multiple Spanning Tree Regions (MST
Regions). Regions are one or more Multiple Spanning Tree bridges by which
frames can be transmitted. In configuring MSTP, the MST region to which the
device belongs is defined. A configuration consists of the name, revision, and
region to which the device belongs.
Network Administrators can define MSTP Instances settings using the
MSTP
Instance Settings Page
.
STEP 1 Click Bridging > Spanning Tree > MSTP > Instance Settings. The MSTP Instance
Settings Page
opens:

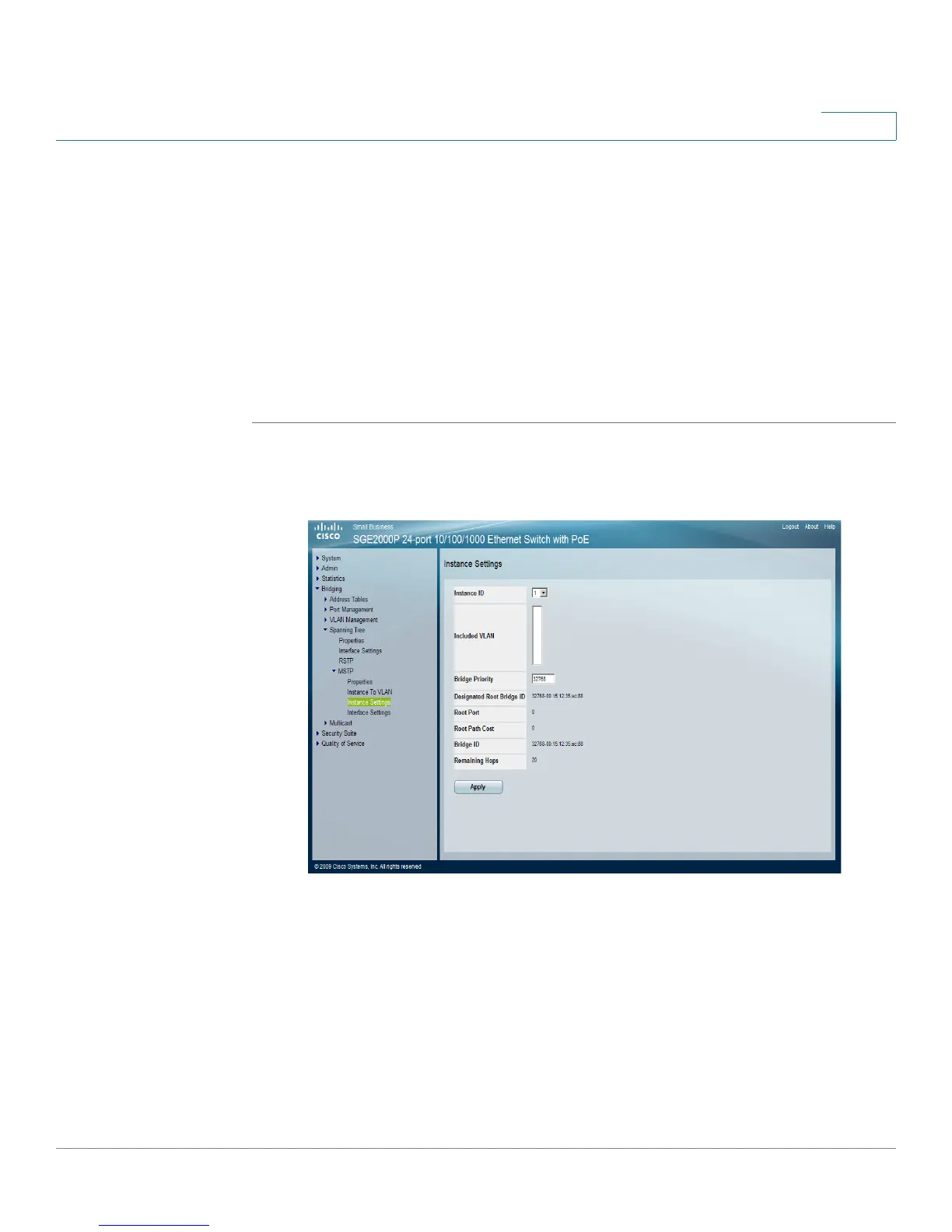

MSTP Instance Settings Page
The
MSTP Instance Settings Page contains the following fields:
• Instance ID — Defines the VLAN group to which the interface is assigned.
• Included VLAN — Maps the selected VLAN to the selected instance. Each
VLAN belongs to one instance.
• Bridge Priority — Specifies the selected spanning tree instance device priority.
The field range is 0-61440.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
