Managing System Files
Firmware Upgrade
Cisco Small Business SFE/SGE Managed Switches Administration Guide 330
13
Firmware Upgrade
Firmware files are downloaded as required for upgrading the firmware version or
for backing up the system configuration. File names cannot contain slashes (\ or /),
the leading letter of the file name should not be a period (.), and the maximum
length for file names on the TFTP server is 127 characters or 31 characters for
files on the switch. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”). The
Firmware
Upgrade Page
contains parameters for downloading system files.
STEP 1 Click Admin > File Management > Firmware Upgrade. The Firmware Upgrade
Page
opens:

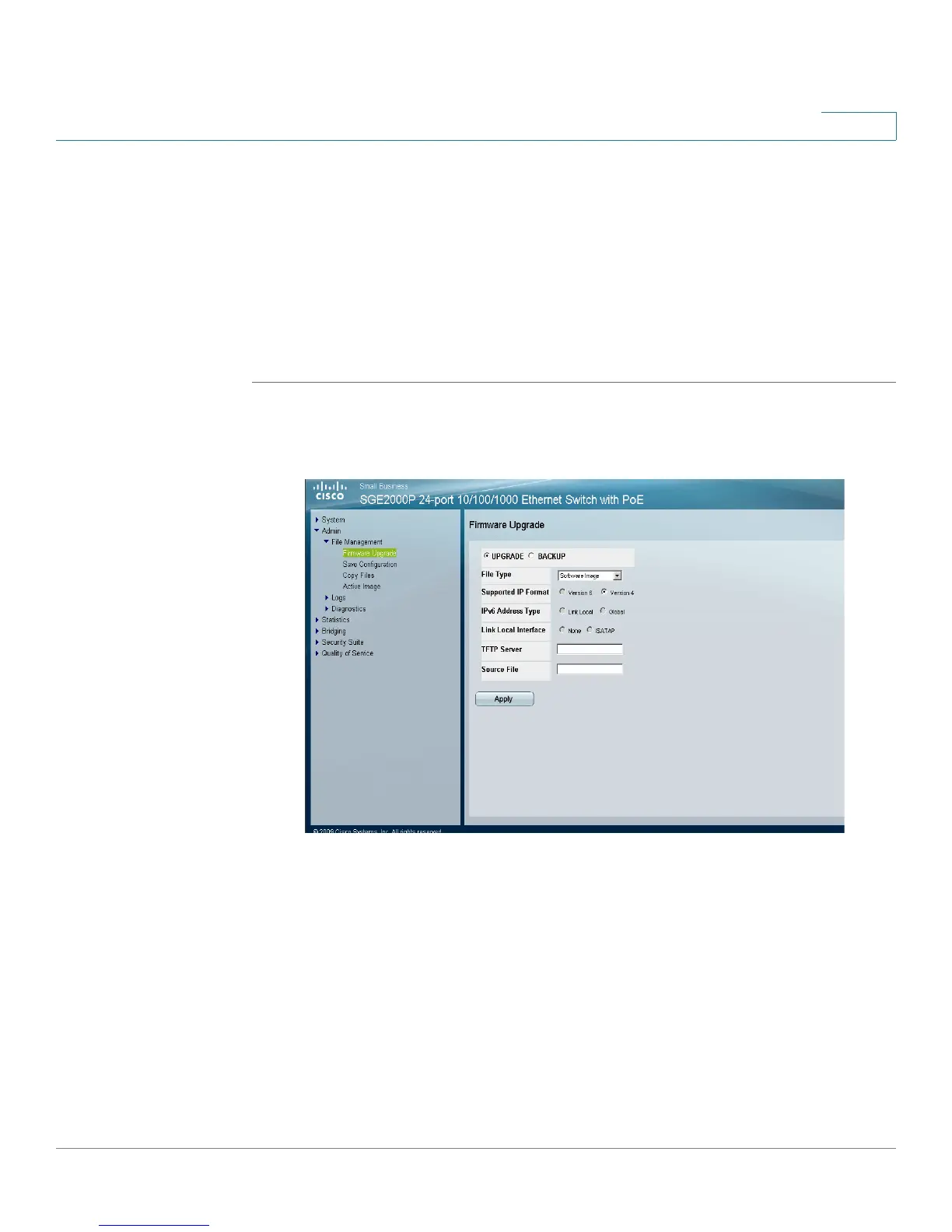

Firmware Upgrade Page
The
Firmware Upgrade Page contains the following fields:
• U — Specifies that firmware is downloaded for a firmware upgrade.
• B — Indicates the file name on TFTP server where the uploaded image is
saved.
• File Type — Specifies the file type of the downloaded file. The possible field
values are:
- Software Image — Downloads the Image file.
- Boot Code — Downloads the Boot file.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
