Configuring IP Information
IP Addressing
Cisco Small Business SFE/SGE Managed Switches Administration Guide 205
7
• Defining DHCP Relay (Layer 3)
• ARP
Defining IPv4 Interface (Layer 2)
The IPv4 Interface Page contains fields for assigning IPv4 addresses. Packets are
forwarded to the default IP when frames are sent to a remote network. The
configured IP address must belong to the same IP address subnet of one of the IP
interfaces.
STEP 1 Click System > System Management > IP Addressing > IPv4 Interface. The IPv4
Interface Page
opens:

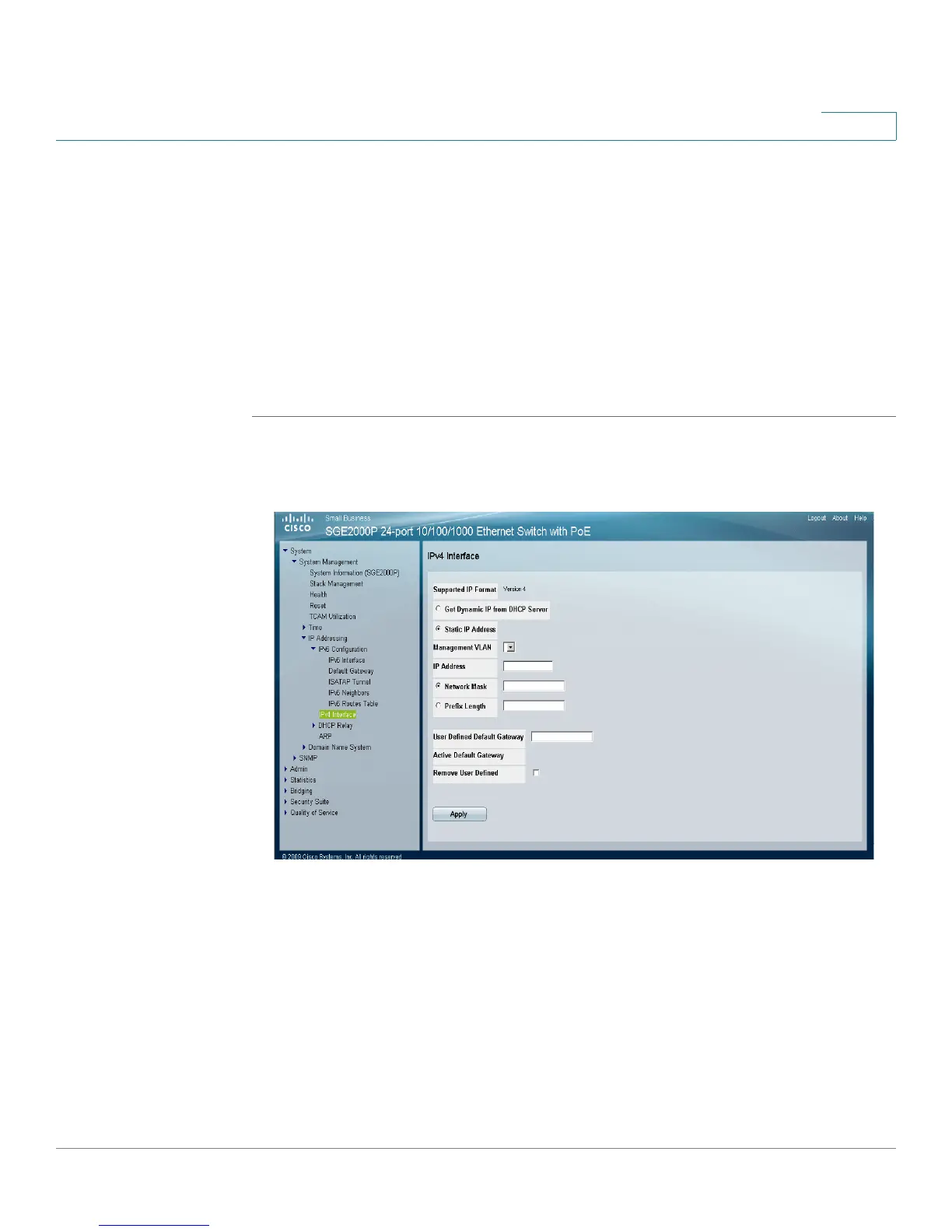

IPv4 Interface Page
The
IPv4 Interface Page contains the following fields:
• Supported IP Format — Displays the supported IP format: Version 4.
• Get Dynamic IP from DHCP Server — Retrieves the IP addresses using DHCP.
• Static IP Address — Permanent IP addresses are defined by the administrator.
IP addresses are either configured on the Default VLAN or are user-defined.
• Management VLAN — Sets the management VLAN. The Management VLAN is
used to access the switch through telnet and / or the web GUI. Management
VLAN is set to 1by default.
