Cisco SGE2000 - Cisco - Gigabit Switch Administration Guide

Configuring VLANs
Defining VLAN Properties
Cisco Small Business SFE/SGE Managed Switches Administration Guide 166
6
STEP 4 Click Apply. The VLAN settings are defined, and the device is updated.
Modifying VLANs
STEP 1 Click Bridging > VLAN Management > Properties. The VLAN Properties Page
opens.
STEP 2 Click Edit. The Edit VLAN Page opens:

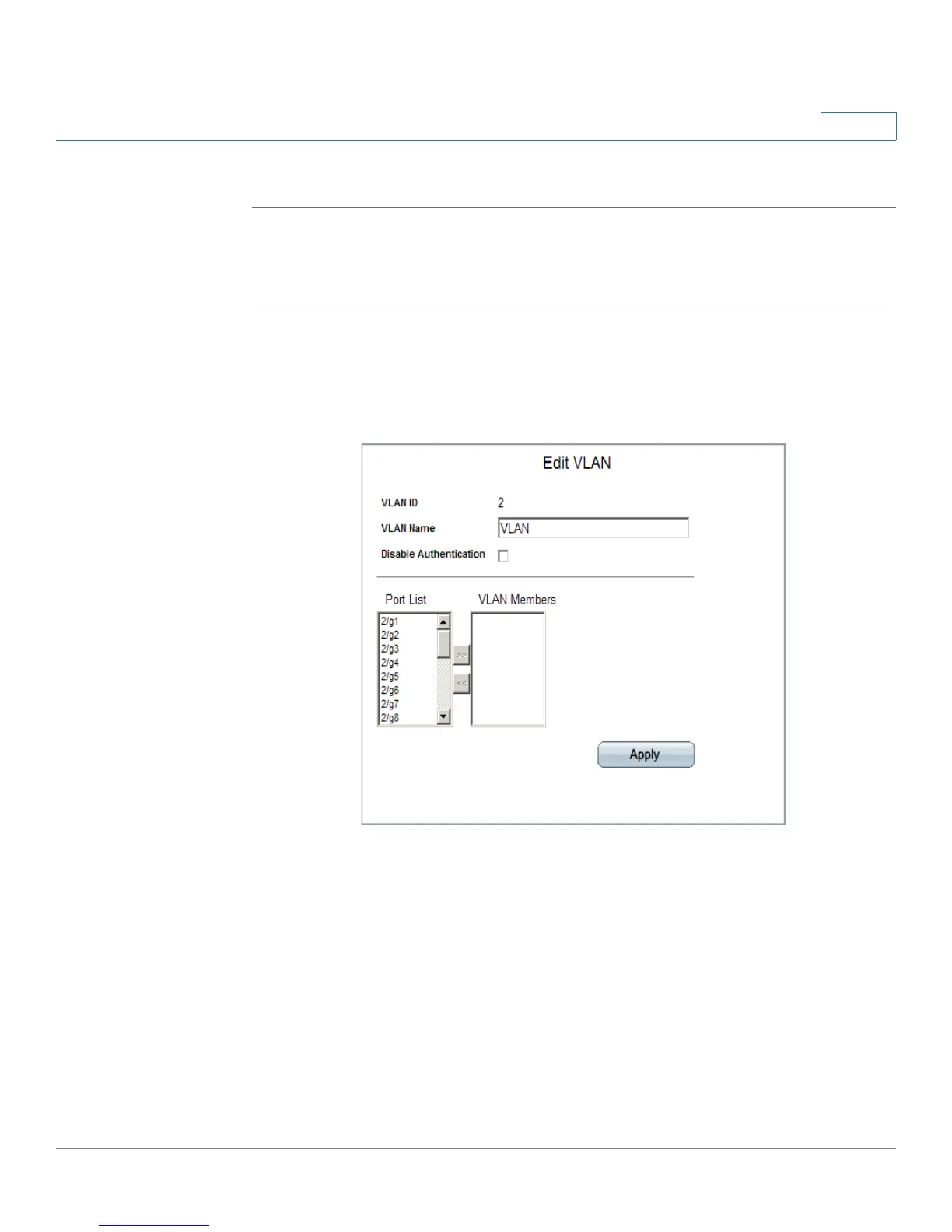

Edit VLAN Page
The
Edit VLAN Page contains information for enabling VLAN guest authentication,
and includes the following fields:
• VLAN ID — Displays the VLAN ID.
• VLAN Name — Defines the VLAN name.
• Disable Authentication — Indicates whether unauthorized users can access a
Guest VLAN. The possible field values are:
- Checked — Enables unauthorized users to use the Guest VLAN.
- Unchecked — Disables unauthorized users from using the Guest VLAN.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
