Configuring VLANs
Defining VLAN Interface Settings
Cisco Small Business SFE/SGE Managed Switches Administration Guide 178
6
- Disable — Ingress filtering is not activated on the port.
• Multicast TV VLAN — Indicates if a Multicast TV VLAN is enabled on the
device. Multicast TV VLANs enable VLANs to receive Multicast TV
transmissions from ports that are not Access ports. The possible values are:
- Enable — Multicast TV VLAN is activated on the port.
- Disable — Multicast TV VLAN is not activated on the port.
Modifying VLAN Interface Settings

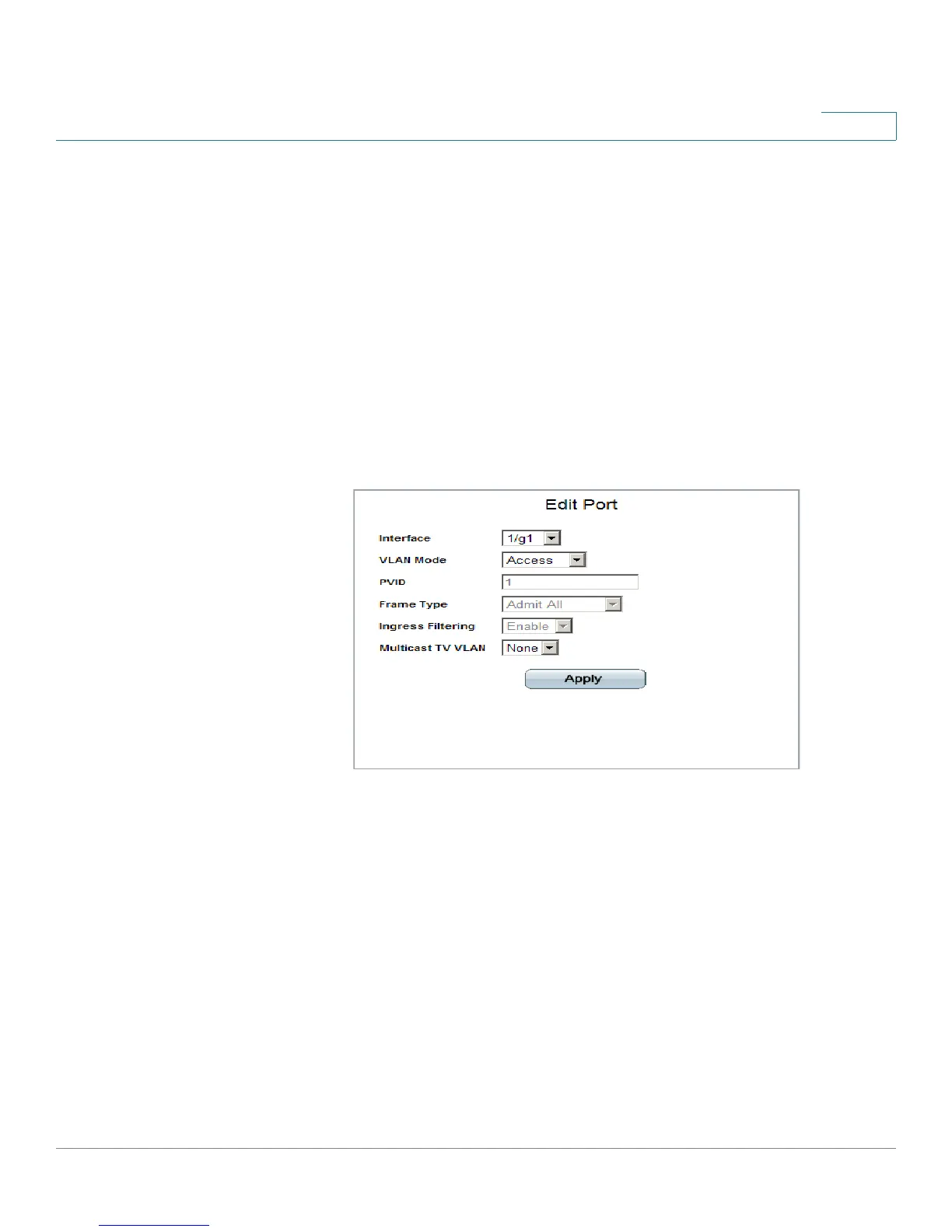

STEP 2 Click the Edit button. The Edit VLAN Ports Page opens:
Edit VLAN Ports Page
The
Edit VLAN Ports Page contains the following fields:
• Interface — The port or LAG associated with this VLAN interface configuration.
• VLAN Mode — Indicates the port mode. Possible values are:
- General — The port can be tagged and untagged with members of one
or more VLANs. (full 802.1Q mode).
- Access — The port belongs to a single untagged VLAN. When a port is
in Access mode, the packet types which are accepted on the port
(packet type) cannot be designated. It is also not possible to enable/
disable ingress filtering on an access port.
- Trunk — The port can be member of one or more VLANs. It is an
untagged member of at most one VLAN, and is a tagged member of all
other VLANs it is a member of.

Cisco SGE2000 - Cisco - Gigabit Switch Specifications

General

Form Factor	Rack-mountable
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Layer	Layer 2
Power Supply	Internal
Management	Web-based, SNMP, CLI
MAC Address Table Size	8000 entries
VLANs	256
Features	Quality of Service (QoS), IGMP snooping, Port mirroring
Dimensions (W x D x H)	440 x 257 x 44 mm (17.3 x 10.1 x 1.73 in)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Relative Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
